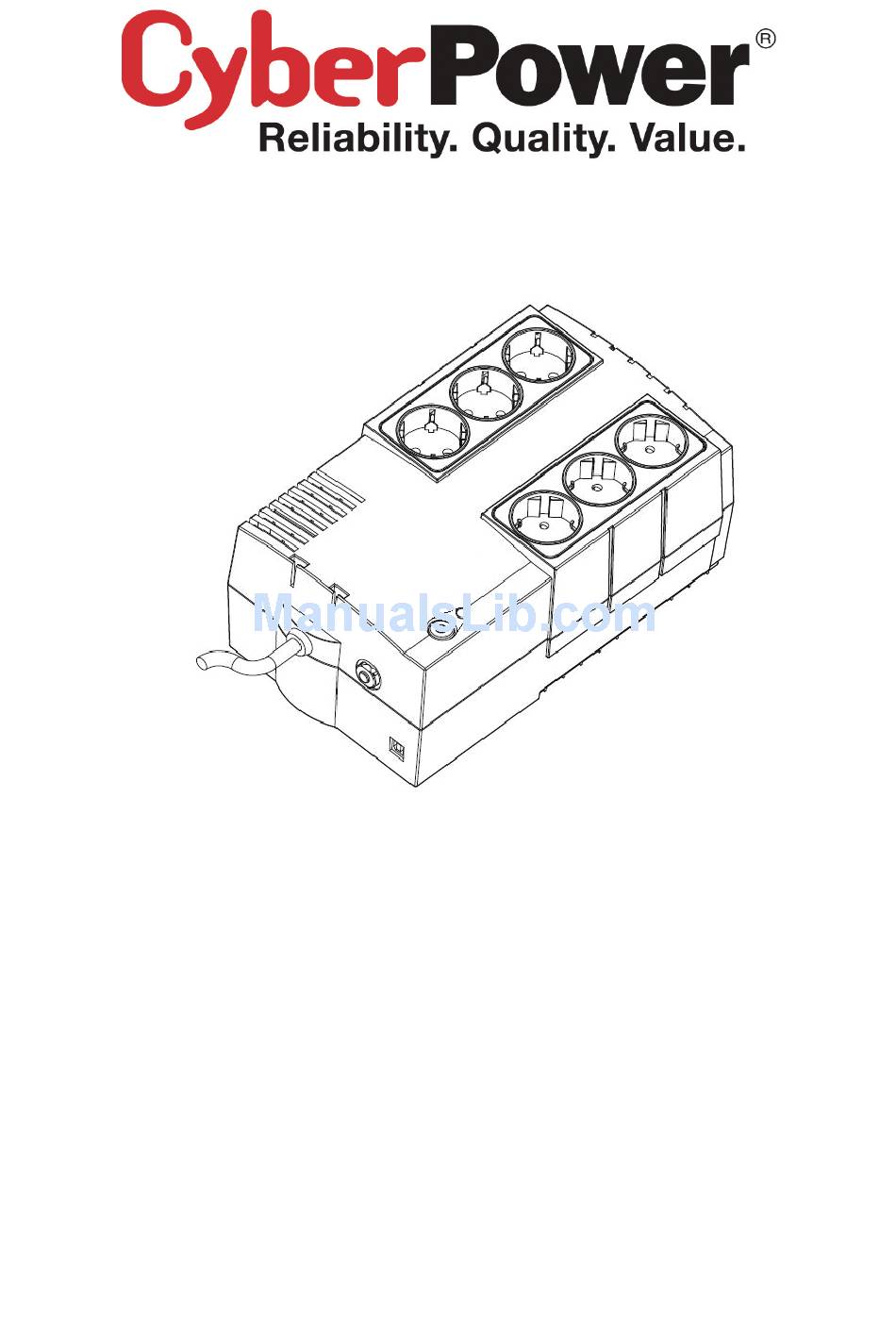

- Page 1 BR450E / BR650E / BR850E User’s Manual K01-0000108-00...
-
Page 2: Important Safety Instructions
450VA/ 650VA/850VA. 2.Ensure that the equipment plugged into the battery power-supplied/surge outlets does not exceed the UPS unit's rated capacity (450VA/270W for BR450E, 650VA/390W for BR650E, 850VA/510W for BR850E). If the rated unit capacities are exceeded, an overload condition may occur and cause the UPS unit to shut down or the circuit breaker to trip. -
Page 3: Basic Operation

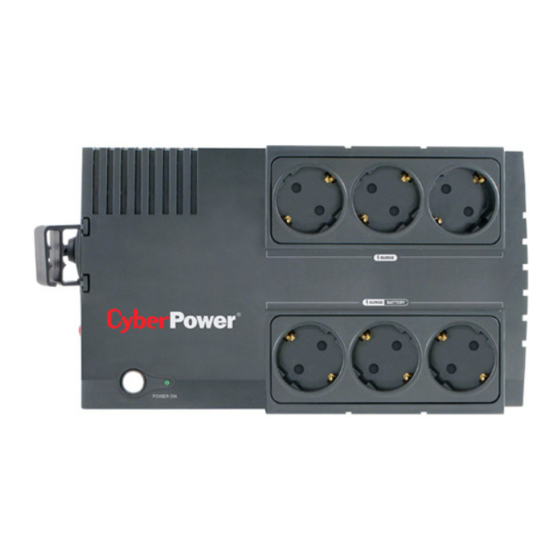

BASIC OPERATION DESCRIPTION ① Power On/Off Switch Press the power switch to turn the UPS ON or OFF. ② Power on LED The power on LED lights up when the UPS is ON. ③ AC outlet The UPS provides 3 outlets for connected equipment to insure temporary uninterrupted operation during a power failure and against surges and spikes and another 3 outlets against surges and spikes only. -
Page 4: Hardware Installation Guide
Hardware Installation Guide 1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8 hours is recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss may occur during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC outlet. -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS Model BR450E BR650E BR850E Capacity (VA) 450VA 650VA 850VA Capacity (Watts) 270W 390W 510W Input Input Voltage Range 160-265Vac Frequency Range 47~63Hz (Auto Sensing) AVR Function Boost @ 200V Output On Battery Output Simulated Sine Wave at 230Vac +/-10%... -
Page 6: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Full-time surge protection Turn the UPS off and unplug at least one piece of outlets stop providing power to Circuit breaker has equipment. Wait 10 seconds, reset the circuit equipment. Circuit breaker tripped due to an breaker by depressing the button, and then turn button is projecting from the overload.
