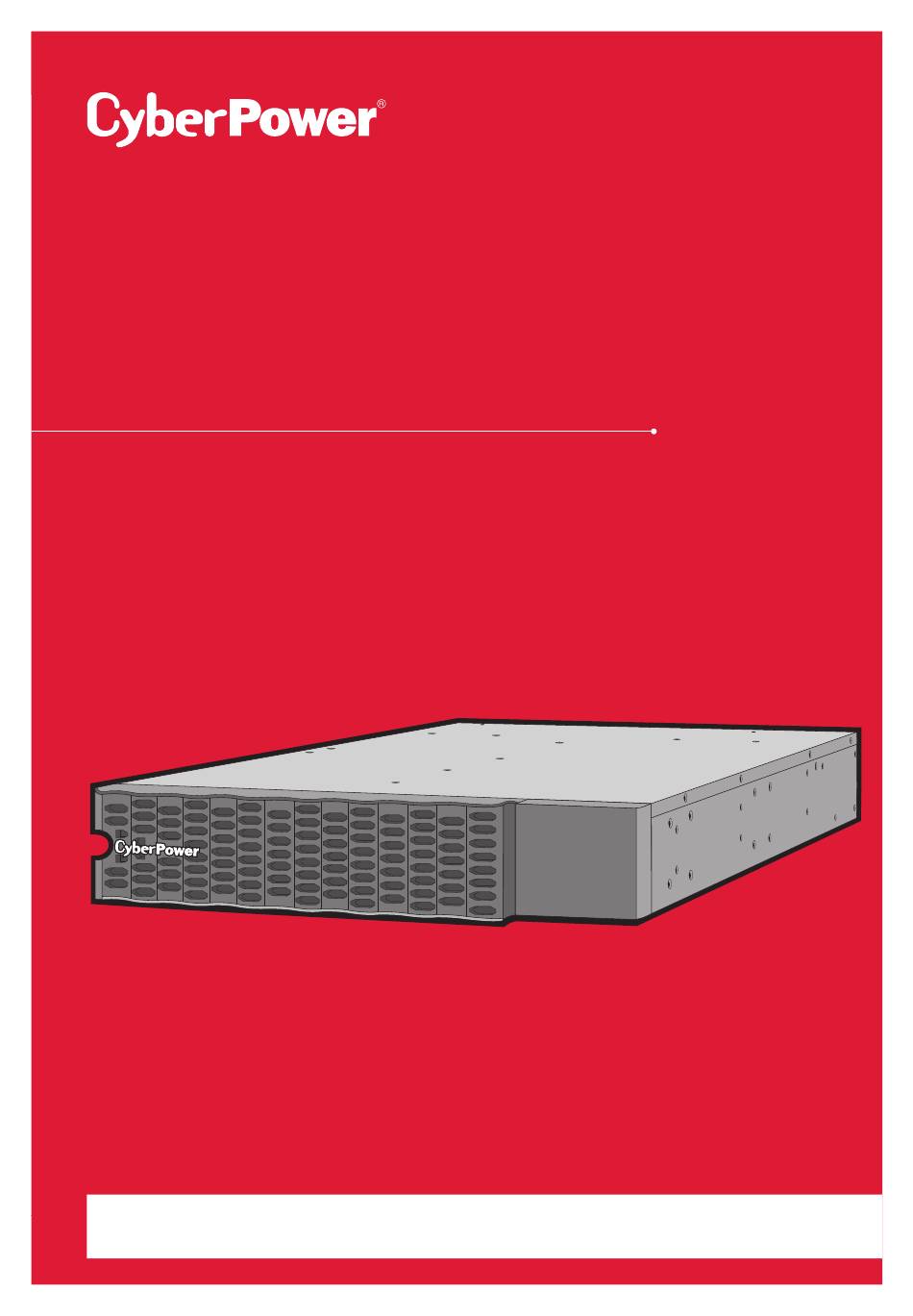

SMART APP ONLINE
UPS SYSTEM
INSTALLATION AND OPERATION MANUAL
BP192VL2U01
SAVE THESE INSTRUCTIONS
Please read this manual and follow the instructions for installation and operation.
©2022 Cyber Power Systems (USA), Inc. All rights reserved. All other trademarks are the property of their respective owners.
©2025 Cyber Power Systems, Inc. All rights reserved.
1
K01-0000955-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP192VL2U01 and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberPower BP192VL2U01

  • Page 1 SMART APP ONLINE UPS SYSTEM INSTALLATION AND OPERATION MANUAL BP192VL2U01 SAVE THESE INSTRUCTIONS Please read this manual and follow the instructions for installation and operation. ©2022 Cyber Power Systems (USA), Inc. All rights reserved. All other trademarks are the property of their respective owners.
  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS PRODUCT SAFETY CAUTION To reduce the risk of fire, connect the EBM AC input to a branch circuit with 20 amperes maximum overcurrent protection in accordance with the National Electric Code, ANSI/NFPA 70. A battery can present a risk of electric shock and high short circuit current. The following precaution should be observed when working on batteries: Remove watches, rings or other metal objects.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS ..........................I Product Safety ...................................I INTRODUCTION............................... 1 UPS Extended Battery Modules ............................1 Unpacking Procedures ................................1 What's In The Box..................................2 EXTENDED BATTERY MODULE INSTALLATION..................3 Battery Module ..................................3 Connection With UPS ................................4 HARDWARE INSTALLATION ........................
  • Page 4: Introduction

    INTRODUCTION UPS EXTENDED BATTERY MODULES Extended Battery Modules (EBMs) from CyberPower (BP192VL2U01) increase battery runtimes during power outages. Each rack/tower convertible EBM uses 2U of rack space and can be installed in a tower form factor to match the UPS installation. The DC plug-and-play power connectors allow to daisy-chain additional EBMs to a UPS system.
  • Page 5: What's In The Box

    INTRODUCTION CONT. WHAT’S IN THE BOX ITEM CONTENT ITEM CONTENT Installation and Operation Manual Front panel Registration warranty card IEC320 C14 to IEC320 C13 Rackmount ears power cord NEMA L6-20P to IEC320 C13 Flat head screws M5X7L power cord Pan head screws M5X8L BM Cable BMP Cable Pan head screws M5X6L...
  • Page 6: Extended Battery Module Installation

    BATTERY : 192V (Charge Only) AC OUTPUT BP192VL2U01 1. BP192VL2U01 EBM DC Input Connector Connect to the UPS or to the other Extended battery modules 2. BM Ports Connection port for built-in battery management module on UPS and Extended Battery Module.
  • Page 7: Connection With Ups

    EXTENDED BATTERY MODULE INSTALLATION CONT. CONNECTION WITH UPS Scenario #1: UPS with one Extended Battery Module (EBM) Plug into a wall receptacle Step 1: Turn off the DC breaker on the EBM. Step 2: Loosen the two screws to remove the battery cable retention bracket of the UPS. Step 3: Use the output cable of the EBM to connect the EBM to the UPS.
  • Page 8 EXTENDED BATTERY MODULE INSTALLATION CONT. CONNECTION WITH UPS CONT. Scenario #2: UPS with multiple Extended Battery Modules (EBMs) Plug into a wall receptacle Step 1: Turn off the DC breaker on the EBM. Step 2: Loosen the two screws to remove the battery cable retention bracket of the UPS. Step 3: Use the output cable of the EBM to connect the EBM to the UPS.
  • Page 9: Available Settings

    EXTENDED BATTERY MODULE INSTALLATION CONT. CONNECTION WITH UPS CONT. Step 9: Turn on the DC breaker of the 2nd EBM. Step 10: Set the EBM number to the respective setting to match the number of installed units. To do this via the LCD control panel, go to the Configuration Menu, then scroll to the EBM Number setting, select the appropriate number and Save the configuration.
  • Page 10: Hardware Installation

    HARDWARE INSTALLATION CyberPower Extended Battery Module (EBM) can be installed in a rackmount or vertical/tower orientation. This versatility is especially important to growing organizations with changing needs that value having the option to position an EBM on the floor or in a rackmount system. Note that the included rack mounting hardware is only compatible with square hole racks.
  • Page 11 HARDWARE INSTALLATION CONT. RACKMOUNT INSTALLATION FOR 4-POST RACK CONT. Rack mount ear position 4 position 4 position 1 Rack mount rail position 1 position 5 position 2 Step 5: Place and secure the EBM on the rails Slide the hanging brackets on the EBM on to the rails mounted in the rack with the front of the unit facing toward you.
  • Page 12: Rackmount Installation For 2-Post Rack

    HARDWARE INSTALLATION CONT. RACKMOUNT INSTALLATION FOR 2-POST RACK CAUTION! Due to the weight of this unit, it is strongly recommended to install it at the bottom of the rack. CAUTION! Prior to installing the unit, remove internal batteries to reduce the weight of the unit.
  • Page 13: Vertical/Tower Installation

    HARDWARE INSTALLATION CONT. VERTICAL/TOWER INSTALLATION Step 1: Adhere rubber pads Adhere four circular rubber pads to the left hand side of the extended battery module. This will become the bottom side. Insert the dust covers into the open screw holes on bottom. Step 2: Attach the base stands and attach the dust covers Stand the EBM on its side with the rubber pads facing down.
  • Page 14: Maintenance

    MAINTENANCE Storage To store your EBM for an extended period of time, cover and store it with the battery fully charged. Recharge the battery every three months to ensure battery life. Battery Replacement Please read and follow the Safety Instructions before servicing the battery. Battery replacement should be performed by trained personnel who are familiar with the procedures and safety precautions.
  • Page 15 MAINTENANCE CONT. Battery Disposal Do Not Discard Batteries are considered hazardous waste and must be disposed of properly. Contact your local government for more information about proper disposal and recycling of batteries. Do not dispose of batteries in fire. Cyber Power Systems encourages environmentally sound methods for disposal and recycling of its UPS products.
  • Page 16: Battery Replacement

    MAINTENANCE CONT. BATTERY REPLACEMENT CONT. Step 4: Unscrew the battery retention bracket and then open it Step 5: Pull the battery trays out slowly and then put the new battery trays into the compartment. Step 6 : Assemble battery retention cover. Connect battery management module connector and then connect the battery connector.
  • Page 17: Technical Specifications

    TECHNICAL SPECIFICATIONS MODELS BP192VL2U01 CONFIGURATION AC Input Voltage 200-240 V DC Output Voltage 192 Vdc DC Output Current 60 A PHYSICAL Dimensions L x W x H = 28.3 X 17.05 x 3.4 in (72 x 43.3 x 8.65 cm) Net Weight 101.4 lb (46Kg)
  • Page 18: Troubleshooting

    Charger has failed. PRODUCT REGISTRATION CyberPower requests that you complete and return the Warranty Registration Card enclosed with the Product or register the Product at its website (www.cyberpowersystems.com/registration) to establish that you are the Initial Customer of the Product, and therefore entitled coverage under the Limited Warranty and the Connected Equipment Guarantee.
  • Page 19: Conformance Approval

    State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. © 2025 Cyber Power Systems (USA), Inc. CyberPower ®, the CyberPower logo and PowerPanel® are registered trademarks of Cyber Power Systems (USA), Inc. All rights reserved. All other trademarks used are property of their respective owners.
  • Page 20 Cyber Power Systems, Inc. | www.CyberPowerSystems.com For USA and Canada | 4241 12th Ave East, Suite 400, Shakopee, MN 55379 | Toll-free: 877.297.6937 For all other regions | Please visit our website for local contact information. Copyright © 2025 Cyber Power Systems, Inc. All rights reserved. ©2022 Cyber Power Systems (USA), Inc.
