This manual contains important instructions. Please read and follow all
instructions carefully during installation and operation of the unit. Read
this manual thoroughly before attempting to unpack, install, or operate
the Battery modules.
CAUTION! The UPS unit must be connected to a grounded AC

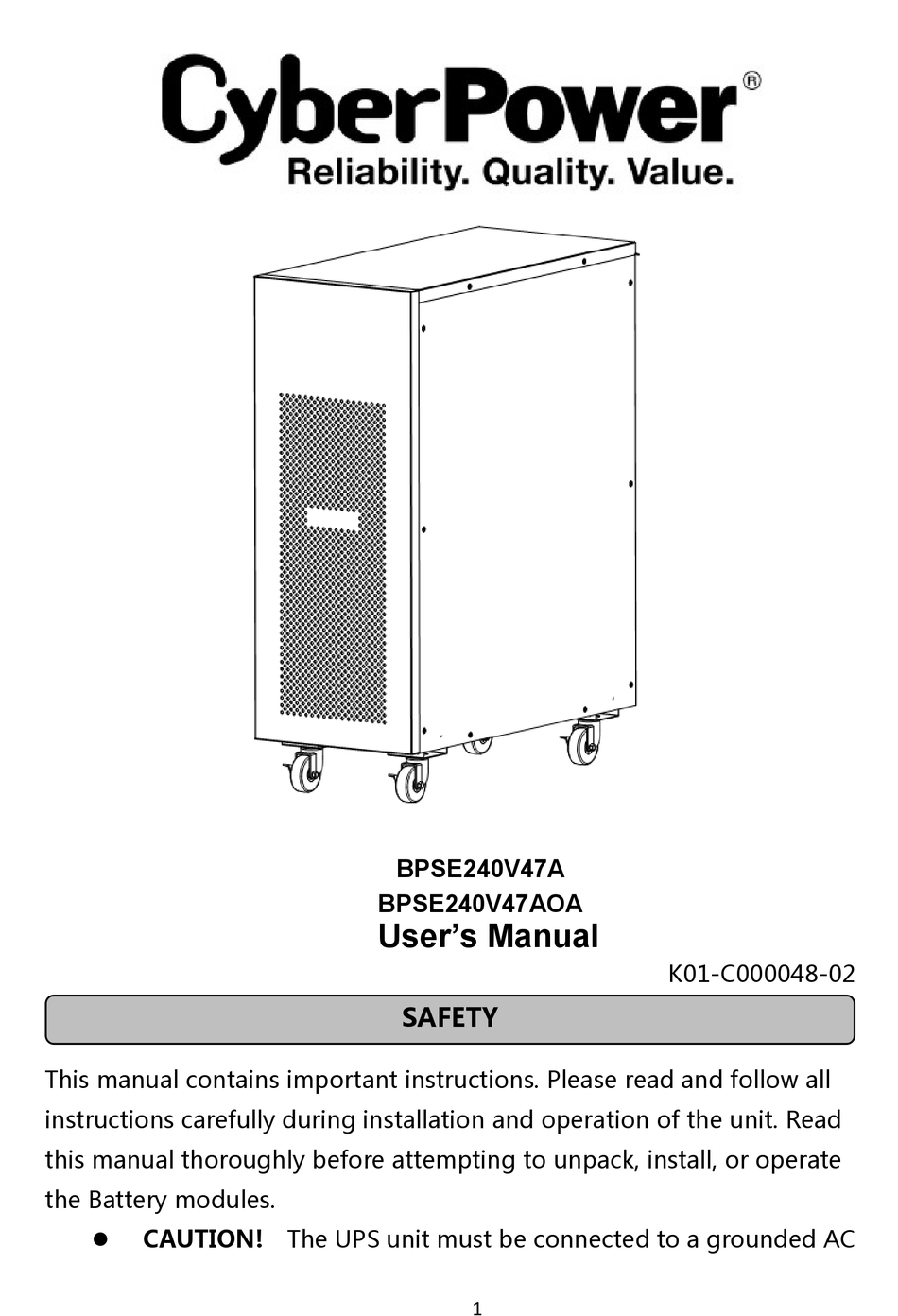

BPSE240V47A
BPSE240V47AOA
User's Manual
SAFETY
1
K01-C000048-02
Advertisement
Related Manuals for CyberPower BPSE240V47A
Summary of Contents for CyberPower BPSE240V47A
- Page 1 BPSE240V47A BPSE240V47AOA User’s Manual K01-C000048-02 SAFETY This manual contains important instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate the Battery modules. CAUTION! The UPS unit must be connected to a grounded AC...
- Page 2 power outlet with fuse or circuit breaker protection. The Battery modules grounded are through the UPS. CAUTION! The battery can power hazardous components inside the unit, even when the AC input power is disconnected. CAUTION! To prevent the risk of fire or electric shock, install in ...
- Page 3 disconnected completely before conducting any maintenance, repairs or shipment. CAUTION! Connect the Protection Earth (PE) safety conductor before any other cables are connected. DO NOT INSTALL THE UNIT WHERE IT WOULD BE EXPOSED TO DIRECT SUNLIGHT OR NEAR A STRONG HEAT SOURCE! SERVICING OF BATTERIES SHOULD BE PERFORMED OR ...
- Page 4 BASIC OPERATION SCHEMATIC BATT.OUTPUT+ Fuse BATT.INPUT+ BATT.INPUT- BATT.OUTPUT- Battery String 1 Battery String 2 FRONT/REAR PANEL DESCRIPTION ①.Output Connector: Use this output connector to connect the Battery module and the Power module. ②.On-board Replaceable Fuse Cover: Replaceable fuse is accessible from the rear panel.
- Page 5 CONNECTION#1: POWER MODULE(UPS) WITH ONE BATTERY MODULE Step 1: Connect the Battery Cable to the Power module and ensure the polarity is right. Step 2: Loosen the screws to remove the battery cable retention bracket of the Battery module. Step 3: Connect the Battery Cable to the Battery module.
- Page 6 Step 4: Rotate the battery cable retention bracket and tighten the screws to fix battery cable. CONNECTION#2: POWER MODULE(UPS) WITH MULTIPLE BATTERY MODULES Step 1: Loosen the screws to remove the input Terminal Block Cover of the #1 battery module. Step 2: Connect the Battery Cable to the battery input Terminal Block and ensure the polarity is right, then retighten the Block Cover.
- Page 7 bracket of the #2 battery module. Step 4: Connect the #1 Battery module to the #2 Battery module. Step 5: Rotate the battery cable retention bracket and tighten the screws to fix battery cable. Step 6: Connect the #1 Battery module to the Power module. (Refer to above steps of connection#1)
-
Page 8: Technical Specification
TECHNICAL SPECIFICATION Model BPSE240V47A BPSE240V47AOA Battery Sealed Maintenance Free Lead 12V / 7Ah x20pcs 12V / 9Ah x20pcs Acid Battery x2sets x2sets Rated Battery Voltage 240Vdc Overload Protection Fuse Physical Maximum Dimensions 718x260x550 (HxWxD) (mm) Weight (kg) Environment Operating Temperature 0C to 40C...
