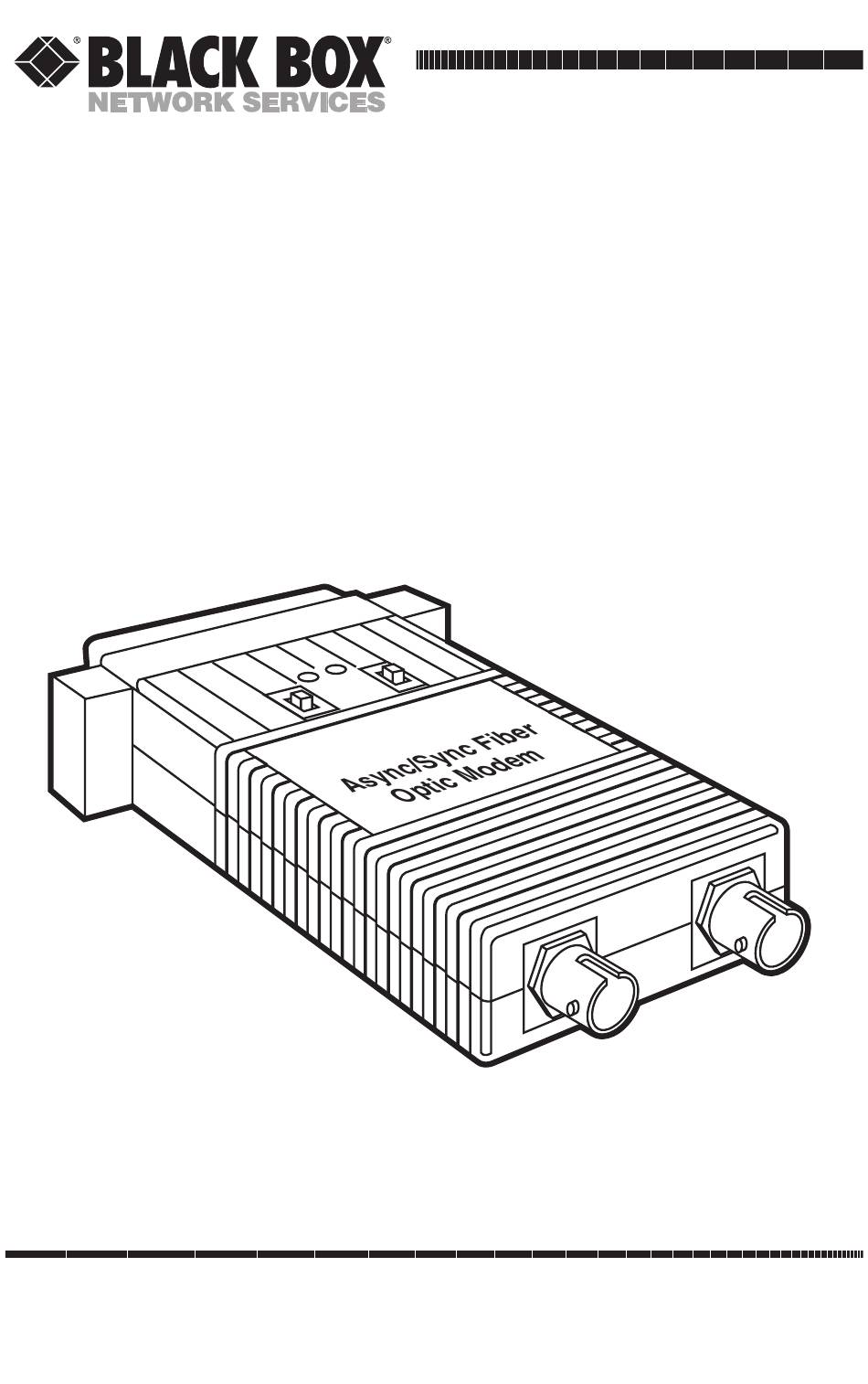

Async/Sync Fiber Optic Modem
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
JUNE 2001
ME570A-MST-R2
ME570A-FST-R2
ME570A-MSM-R2
ME570A-FSM-R2
Advertisement
Table of Contents
Related Manuals for Black Box ME570A-MST-R2
Summary of Contents for Black Box ME570A-MST-R2
- Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) SUPPORT FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 FCC AND IC RFI STATEMENTS FEDERAL COMMUNICATIONS COMMISSION INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is...
- Page 3 ASYNC/SYNC FIBER OPTIC MODEM NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
- Page 4 NOM STATEMENT 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
- Page 5 ASYNC/SYNC FIBER OPTIC MODEM TRADEMARKS USED IN THIS MANUAL ® is a registered trademark of American Telegraph and Telephone Company. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
-
Page 6: Table Of Contents
CONTENTS Contents Chapter Page 1. Specifications ..........6 2. -
Page 7: Specifications
ASYNC/SYNC FIBER OPTIC MODEM 1. Specifications Transmission Line: Dual optical cable Transmission Mode: Async or sync, full or half-duplex Interfaces: EIA RS-232, CCITT V.24 Data Rates: Up to 57.6 kbps Distance: 3.5 miles (5.6 km) over continuous fiber; RTS/CTS Delay: Switch-selectable: No delay, 9 ms, 79.5 ms Receiver Sensitivity: -38 dBm Coupled Power Output: >... -
Page 8: Introduction
CHAPTER 2: Introduction 2. Introduction 2.1 Description The Async/Sync Fiber Optic Modem is a miniature modem that combines the inviolability of fiber with the troubleshooting capabilities of V.52 and V.54 diagnostics. The modem operates in asynchronous or synchronous mode, supports data rates to 57.6 kbps, and plugs directly into a workstation’s RS-232 port. -
Page 9: Configuration Overview
The Async/Sync Fiber Optic Modem is fairly simple to install. The following instructions will help you set up and install the modem properly. If you have questions, call Black Box Technical Support at 724-746-5500. 3.1 Configuration Switches The Async/Sync Fiber Optic Modem uses a unique set of 16 external mini DIP switches that allow configuration to an extremely wide range of applications. - Page 10 CHAPTER 3: Configuration Overview 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Figure 3-1. DIP switches on the Async/Sync Fiber Optic Modem.
-
Page 11: Configuration Switch Set S1
ASYNC/SYNC FIBER OPTIC MODEM The Async/Sync Fiber Optic Modem has two sets of eight switches, referred to as S1 and S2. As Figure 3-2 shows, the orientation of all DIP switches is the same with respect to “ON” and “OFF” positions. 1 2 3 4 5 6 7 8 Figure 3-2. -
Page 12: S1-1 Through S1-4: Data Rate Setting
CHAPTER 3: Configuration Overview 3.2.1 S1-1 S1-4: D THROUGH ETTING Switches S1-1 through S1-4 are set in combination to determine the asynchronous and synchronous data rate for the Async/Sync Fiber Optic Modem. Table 3-2. Data rate setting. S1-1 S1-2 S1-3 S1-4 Setting 1.2 kbps... -
Page 13: S1-7: Asynchronous/Synchronous Mode
ASYNC/SYNC FIBER OPTIC MODEM 3.2.3 S1-7: A SYNCHRONOUS YNCHRONOUS The setting for switch S1-7 determines whether the Async/Sync Fiber Optic Modem is in asynchronous or synchronous operating mode. Table 3-4. S1-7 switch setting. S1-7 Setting Asynchronous* Synchronous *Default 3.2.4 S1-8: C ARRIER ONTROL ETHOD... -
Page 14: Configuration Switch Set S2
CHAPTER 3: Configuration Overview 3.3 Configuration Switch Set S2 The DIP switches on S2 set word length, extended signaling rate, RTS/CTS delay, and V.52 and V.54 diagnostic test. Table 3-6. S2 summary table. Position Function Factory Default S2-1 Word Length Off (10 bits) S2-2 Word Length... -
Page 15: S2-3: Extended Signaling Rate
ASYNC/SYNC FIBER OPTIC MODEM 3.3.2 S2-3: E XTENDED IGNALING The setting for switch S2-3 determines the range of variability the Async/Sync Fiber Optic Modem looks for in asynchronous data rates (i.e., the actual variance from a given frequency level the modem will tolerate). Table 3-8. -
Page 16: S2-8: V.54 Loopback Test Enable
CHAPTER 3: Configuration Overview 3.3.4 S2-8: V.54 L OOPBACK NABLE To reset the V.54 circuit, set switch S2-6 to the “On” position, then back to the “Off” position. Table 3-10. S2-8 switch setting. S2-8 Setting V.54 Enable* V.54 Disable *Default... -
Page 17: Installation
ASYNC/SYNC FIBER OPTIC MODEM 4. Installation The Async/Sync Fiber Optic Modem is easy to install. After configuring the DIP switches, simply connect the two fiber cables and then connect the RS-232 interface. Figure 4-1 shows the location of the fiber connections on the rear panel. Fiber Fiber Figure 4-1. -
Page 18: Operation
CHAPTER 5: Operation 5. Operation Once you have configured each Async/Sync Fiber Optic Modem and connected the fiber and RS-232 cables, you are ready to operate the units. This section describes the LED status monitors, the V.52 and V.54 diagnostics, and the power- on process. -
Page 19: Test Modes
ASYNC/SYNC FIBER OPTIC MODEM 5.1 Test Modes The Async/Sync Fiber Optic Modem offers two V.54 test modes to evaluate the condition of the modems and the communication link. These tests can be activated physically from the front panel or via the interface. NOTE V.54 test modes on the Async/Sync Fiber Optic Modem are available for point-to-point applications only. -
Page 20: Remote Digital Loopback (Rdl)
CHAPTER 5: Operation 5.1.2 R (RDL) EMOTE IGITAL OOPBACK The Remote Digital Loopback (RDL) test checks the performance of both the local and remote modems, and the communication link between them. Any characters sent to the remote modem in this test mode will be returned to the originating device. -
Page 21: Power-On
ASYNC/SYNC FIBER OPTIC MODEM 5.2 Power-On Once the Async/Sync Fiber Optic Modem is properly installed, it should operate transparently—as if it were a standard cable connection. Since operating power is derived from the RS-232 data and control signals, there is no On/Off switch. All data signals from the RS-232 interface are passed straight through. -
Page 22: Appendix: Pin Configuration
APPENDIX: Pin Configuration Appendix. Pin Configuration DIRECTION “DCE” STANDARD SETTING DIRECTION 1- (FG) Frame Ground 2- (TD) Transmit Data To Modem 3- (RD) Receive Data From Modem 4- (RTS) Request to Send To Modem 5- (CTS) Clear to Send From Modem 6- (DSR) Data Set Ready From Modem 7- (SG) Signal Ground... - Page 23 © Copyright 2001. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
