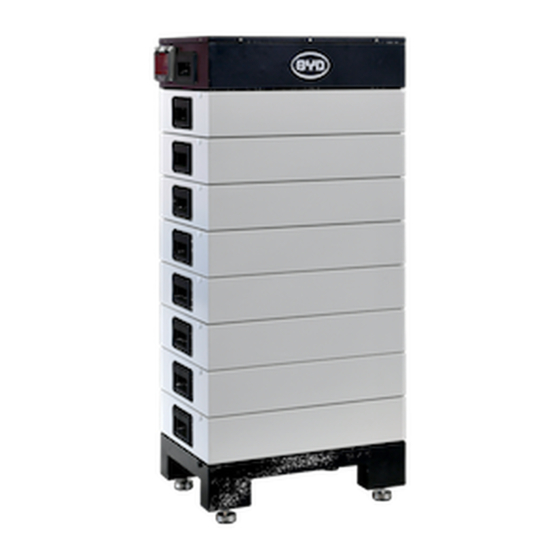

BYD Battery-Box HV
QUICK INSTALLATION GUIDE
Valid for Battery-Box H 5.0/7.5/10.0
Important
Skilled personnel recognized
This manual and the tasks and procedures described herein are intended for use by skilled workers only.
A skilled worker is defined as a trained and qualified electrician or installer who has all of the following skills and experience:
• Knowledge of the functional principles and operation of on-grid systems.
• Knowledge of the dangers and risks associated with installing and using electrical devices and acceptable mitigation methods.
• Knowledge of the installation of electrical devices.
• Knowledge of and adherence to this manual and all safety precautions and best practices.
• You must update the lastest firmware of BCU after completing the Battery-Box H 5.0-10.0,the installer is responsible for system
damage caused by not updating the software in time. Before installing BCU, make sure the system switch is switch off.
If the system does not work, please switch off the system switch before you leave to avoid damage caused by the event.
•

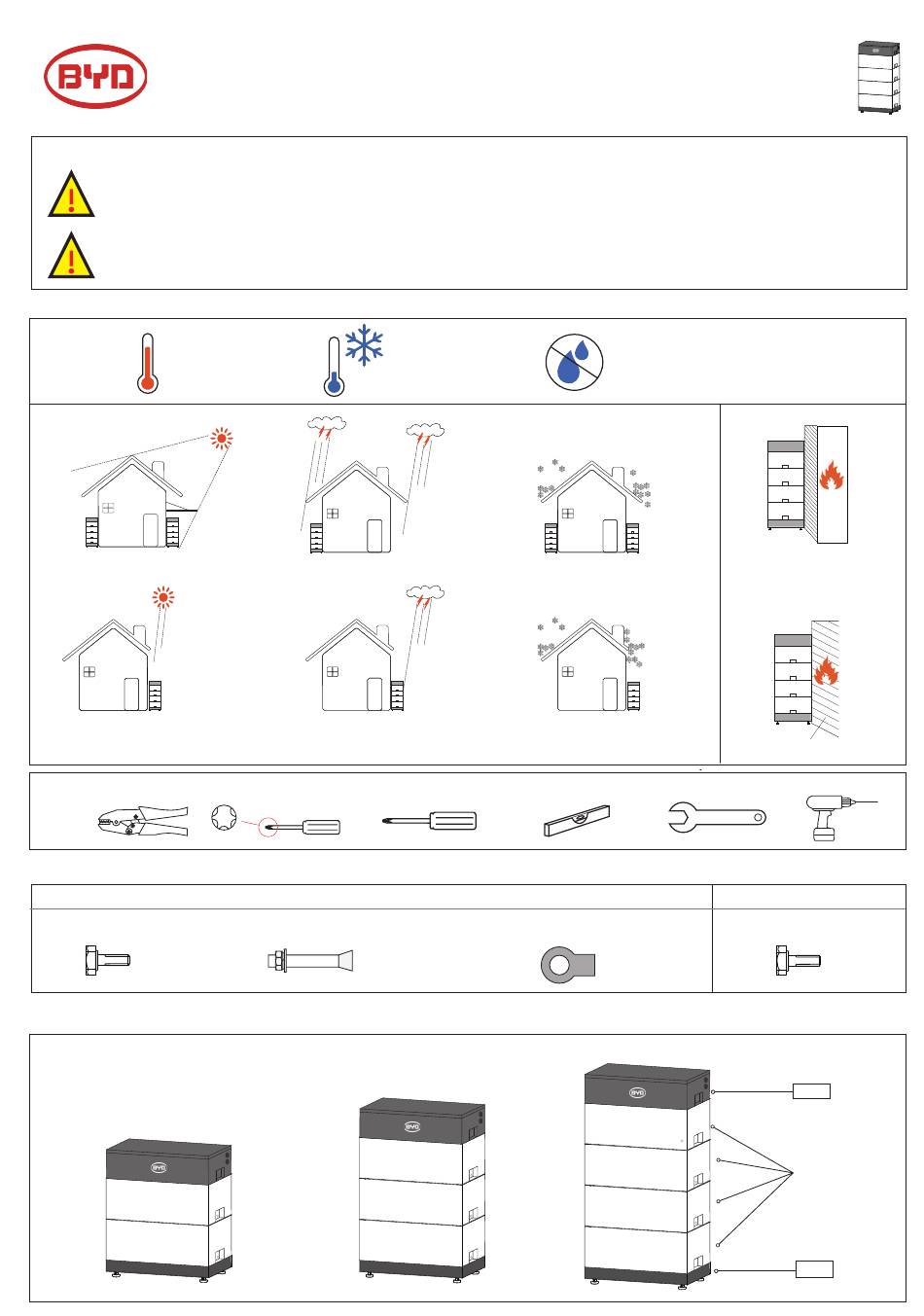

Installation environment requirements
Max.
+50℃
YES
NO
Direct sunlight
Wire Crimp
M6/M4 Precision screwdriver
Tools
Packing list
① M6 ×6PCS
Overall structure
Battery-Box H 5.0
Min.
-10℃
YES
NO
Direct rain fall
Phillips screwdriver
Packing of BCU+BASE
② M6 Expansion bolt ×3PCS
Battery-Box H 7.5
RH.
+5%~+95%
YES
Snow
NO
accumulation
Levelling instrument
③ OT terminal for P+/P-/Ground×4PCS
Battery-Box H 10.0
NO
Flammable material or
gas near the installation
NO
Flammable wall
Power drill
Wrench
Packing of B-Plus H 2.5
④ M6 ×4PCS
BCU
B-Plus H 2.5
Base
USA V 1
Advertisement
Table of Contents
Related Manuals for BYD Battery-Box HV Series
Summary of Contents for BYD Battery-Box HV Series
- Page 1 BYD Battery-Box HV QUICK INSTALLATION GUIDE Valid for Battery-Box H 5.0/7.5/10.0 Important USA V 1 Skilled personnel recognized This manual and the tasks and procedures described herein are intended for use by skilled workers only. A skilled worker is defined as a trained and qualified electrician or installer who has all of the following skills and experience: •...
- Page 2 Installation step Separate base and BCU Unpack Install battery and BCU Before installing BCU, make sure the system switch is switch off. BCU + Base *n=2，3，4 B-Plus H 2.5 D=0mm~63mm Install Wall-mount Open the BCU cover BCU internal overview 4.1 Use a pencil to mark the location of the hole to be drilled.
- Page 3 192.168.5.1. BYDxxx network 1 network 2 BYDxxx BYDxxx Username installer WLAN password 123456789 Password byd@12345 cancel login cancel login Connect through ethernet cable 192.168.6.1 ③ ①Connect the network cable 192.168.6.1. ②Set your computer IP into a static IP IP address:192.168.6.10 Subnet mask:255.255.255.0...
- Page 4 The installation method of the inverter may be changed. Please refer to the installation instructions for the inverter. Sunny Boy Storage BYD requires setting the following parameters for the inverter: Sunny Boy Storage Parameter Battery-Areas of application-Lower Imt deep disch.Protect area prior shutdown...
