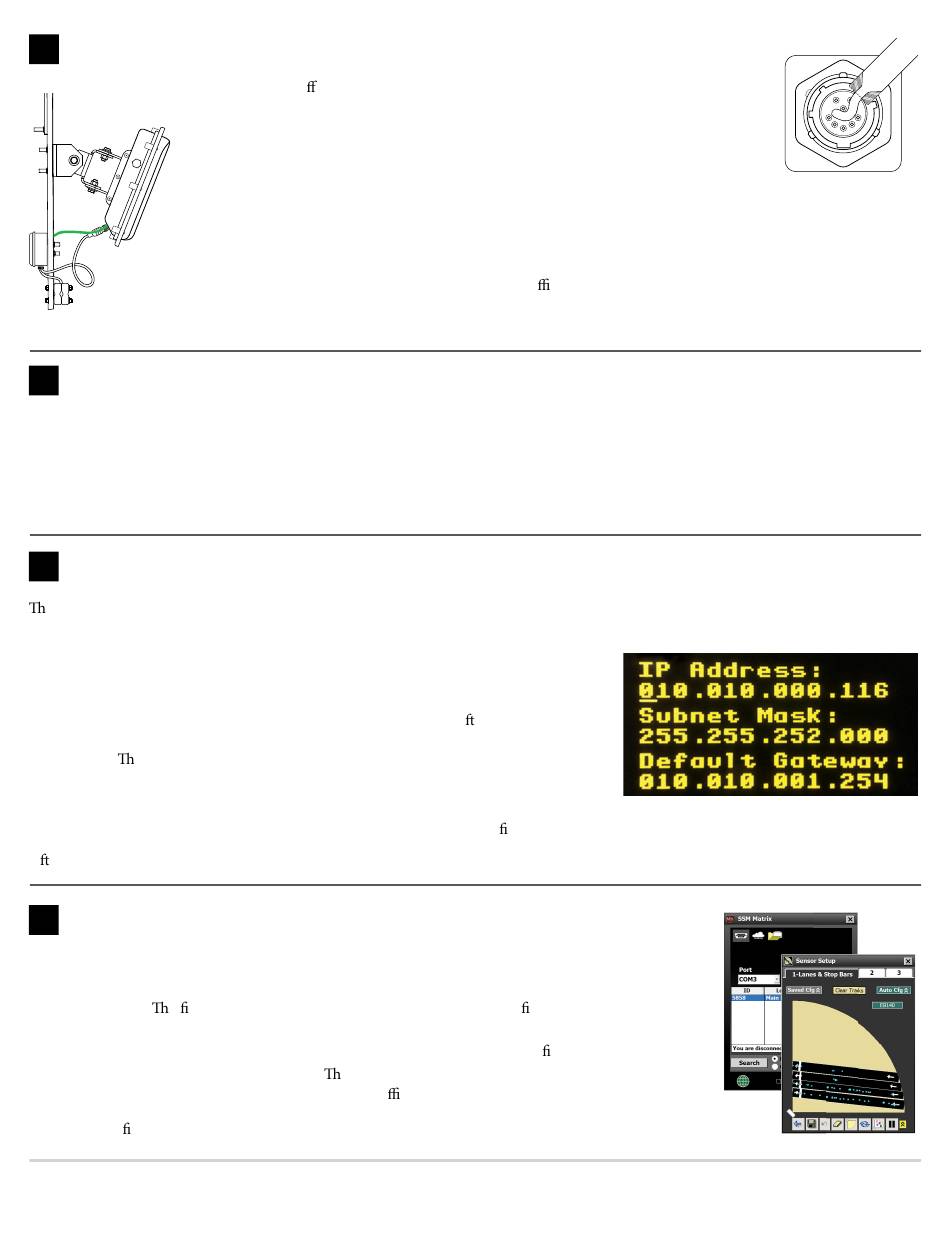

Attach the cable and ground the sensor

1
2
3
4
5
6
7
8
5

Install cabinet equipment

1
Place the Click 65x on a cabinet shelf or mount it to the side of the cabinet.
2
Connect the sensor cable to the Click 65x. (If there are multiple sensors at the intersection, the 65x can accept multiple cables.)
3
Make sure each switch by the sensor port is turned on and the LED is illuminated.
4
If your cabinet is SDLC compatible, connect a cable from the SDLC bus on the Click 65x to the controller. If your cabinet isn't SDLC
compatible, you can connect from the sensor port RJ-11 jacks to contact closure cards and communicate with the controller that way.
6
Confi gure the Click 65x
e Click 65x is designed to be communicated with over Ethernet. Before you can connect it to your network, you need to set the static
IP address, subnet mask and default gateway (these numbers should be determined by your IT personnel).
1
Use the arrow keys and screen on the faceplate to navigate the OLED menu.
2
On the main screen, navigate down to Network Setup and press the Accept (green
check mark) button to open the networking screen (shown at right).
3
Set your desired IP address by following these steps: use the le and right arrow
keys to highlight a number, then use the up and down arrow keys to change that
number. en move to the next number. Repeat until all the numbers are changed.
4
Press the right key one last time to navigate down to the subnet mask line.
5
Repeat steps 2 and 3 for the subnet mask and default gateway.
6
When you're done with all three, push the check sign button to con rm your changes.
A er you're done, connect an Ethernet cable to the RJ-45 jack on the faceplate of the device to connect your Click 65x to your network.
7

Check alignment in the SmartSensor Manager Matrix software

1
Click Communication on the main screen and then click the cloud icon at the top of the screen.
2
Under Network Address, enter the IP address and port number of the Click 65x.
3 Click Search. e rst time you connect, use a Full search, which will nd all the Matrix sensors
on the selected RS-485 control bus. A Quick search can be used for any subsequent connections.
4 Once the list of sensors appears, click on the sensor you would like to con gure; click Connect.
5 On the main menu, click Sensor Setup.
blue dots, called trackers. If the trackers match tra c on the road, the sensor is working properly.
Note. For con guration instructions, see the SmartSensor Matrix User Guide.
© 2019 Wavetronix LLC. All rights reserved. Protected in the US by patents viewable at www.wavetronix.com/en/legal. Protected by Canadian Patent Nos. 2461411; 2434756; 2512689; and European Patent Nos. 1435036;
1438702; 1611458. Other US and international patents pending. Wavetronix, SmartSensor, Click, Command and all associated logos are trademarks of Wavetronix LLC. All other product or brand names as they appear are
trademarks or registered trademarks of their respective holders. Product specifi cations are subject to change without notice. This material is provided for informational purposes only; Wavetronix assumes no liability
related to its use.
WX-500-0316
Tear the tab o the tube of silicon dielectric compound that came with the sensor.
Squeeze about half of the compound on the connector at the base of the sensor.
Insert the cable connector into the sensor connector. Be aware it's a keyed connector.
Twist the cable connector clockwise until you hear it click into place.
Mount a junction box to the span wire hanger assembly.
Run the cable to the junction box and terminate it in the terminal blocks there.
Leave a small amount of slack in the cable; this reduces strain, allows you to create a drip loop as shown,
and gives you something to work with should you need to move the sensor in the future.
Run the homerun cable from the junction box to the pole—it's recommended you run it along the messen-
ger (lower) span wire—and from there to the tra c cabinet.
Connect a 12 AWG grounding wire between the grounding lug on the bottom of the sensor and the span
wire hanger assembly.
e screen that opens shows vehicle detections as moving
