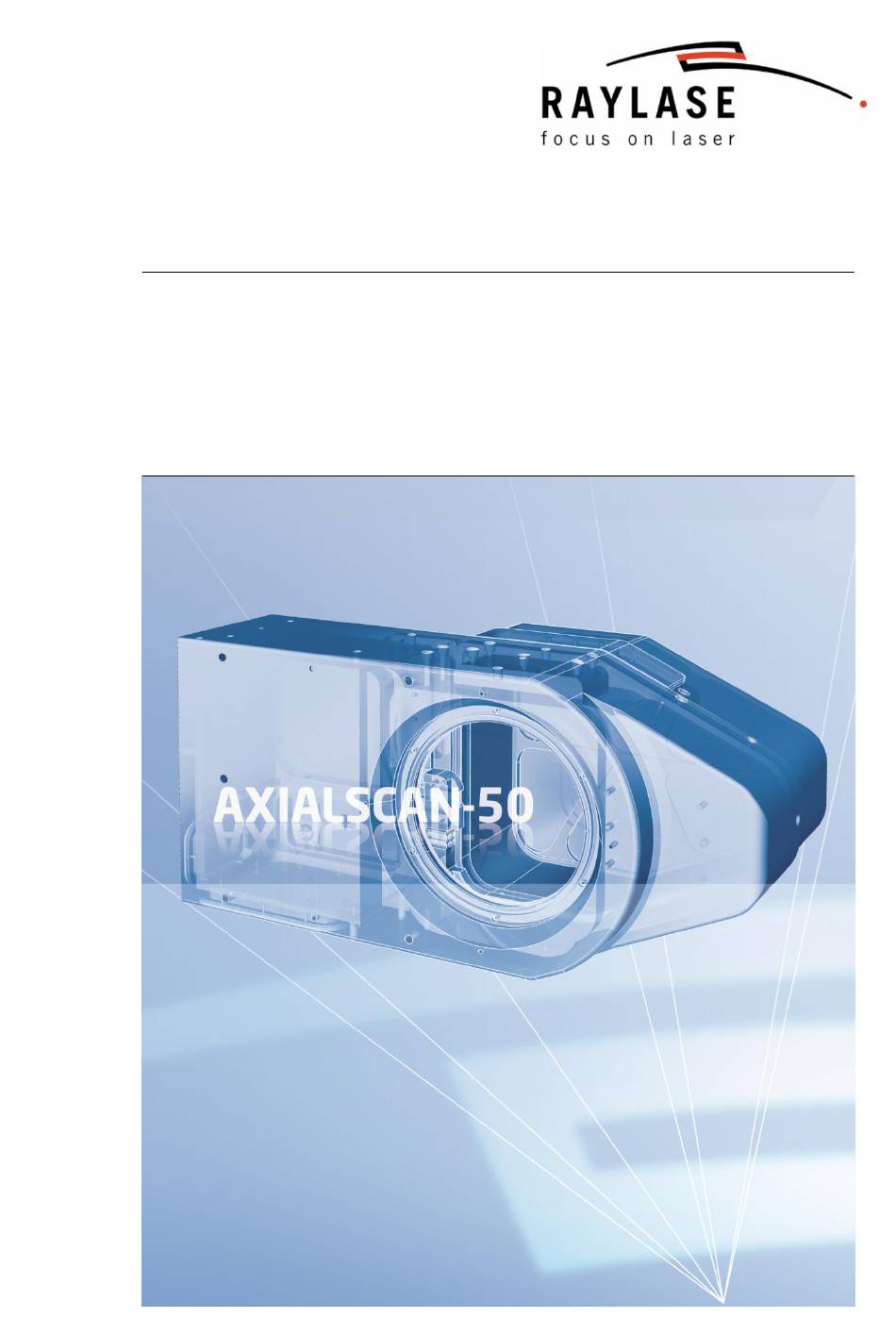

- Page 1 3-Axis Subsystem AS for Laser Beam Deflection AXIALSCAN-50...
- Page 2 This manual has been compiled by RAYLASE for its customers and employees. RAYLASE reserves the right to change the product described in this manual and the infor- mation contained therein without prior notice. The software included in the product and this manual itself are protected by copyright. All rights are reserved.
-
Page 3: Table Of Contents
Contents TABLE OF CONTENTS BASIC SAFETY INSTRUCTIONS .................. 4 Laser safety ........................4 Laser shutter........................4 Signs ..........................4 Classification of laser devices ..................5 Laser area ........................6 BASIC INFORMATION ....................7 Introduction ........................7 Package contents ......................7 Module overview ...................... -
Page 4: Basic Safety Instructions
The laser warning sign is attached by the OEM customer in accordance with the laser device's classification ( page 5, Classification of laser devices). RAYLASE 3-Axis Subsystem AS-50 for Laser Beam Deflection MN049 / v1.0.0... -
Page 5: Classification Of Laser Devices
Basic safety instructions Chapter Classification of laser devices The subsystem can be fitted on various laser devices. Every laser device is assigned to a particular danger class, which must be specified at the point where laser radiation is emitted, e.g. -
Page 6: Laser Area
However, the applicable local and na- tional standards, rules and regulations are binding. Fig. 1 laser Laser area protection housing RAYLASE subsystem shutter deflected laser beam reflected laser beam laser area operating surface RAYLASE 3-Axis Subsystem AS-50 for Laser Beam Deflection MN049 / v1.0.0... -
Page 7: Basic Information
You should therefore familiarize yourself with the content of this manual before using the subsystem for the first time. In case of any queries, please contact RAYLASE. The operating manual must be accessible to anyone who will be involved in developing, in- stalling or using a laser device featuring the RAYLASE subsystem. -
Page 8: Module Overview
Chapter 2 Basic information Module overview The illustration below shows three typical digital laser devices that are equipped with RAYLASE and customer-specific (indicated by dotted lines) modules. Fig. 2 Module overview Laser System RAYLASE SP-ICE control card RAYLASE RLC-PCI control card... -
Page 9: Warranty
E-mail: info@raylase.de Customer Service The RAYLASE support services are available for your problems either in respect to the sub- system or this manual. Before calling for support, please make sure you refer to any appropri- ate sections in this manual that may answer your questions. -
Page 10: Status Leds
Galvanometer scanner or driver electronics defective. Error Z Power supply defective if LEDs are flickering. not used Power supplies ready for green +VCC being used if LEDs are lit. RAYLASE 3-Axis Subsystem AS-50 for Laser Beam Deflection MN049 / v1.0.0... -
Page 11: Technical Data
EU Directive 2004/108/EG or German law on electromagnetic compatibility (EMVG) EU Directive 2002/95/EC or German law on electrical equipment (ElektroG) For details of conformity with other directives, contact RAYLASE. Rating plate code The subsystem is equipped with rating plates The following type designation is used in the... -
Page 12: Functional Description
The optical system and the electronic components of the deflection unit can be protected against contamination by installing a protection window over the beam output ( page 14, Protection window). RAYLASE 3-Axis Subsystem AS-50 for Laser Beam Deflection MN049 / v1.0.0... -
Page 13: Functional Principle
Functional description Chapter Functional principle Fig. 3 Functional description 1 Subsystem 7 Operating field 2 Beam input 8 Power supply of subsystem 3 Lens with linear movement 9 Digital interface of deflection unit 4 Focusing lens 10 Input coolant 5 Beam output 11 Output coolant 6 Galvanometer scanner with mirror... -
Page 14: Protection Window
If the protection window is scratched or cracked, it must be replaced. o Screw the protection window and mount into the beam output on the deflection unit until it is positioned securely. RAYLASE 3-Axis Subsystem AS-50 for Laser Beam Deflection MN049 / v1.0.0... -
Page 15: Interfaces Of The Subsystem
Functional description Chapter Interfaces of the subsystem 4.4.1 Digital Interface The subsystem is connected to a RAYLASE control card using the 17-pin EPIC connector. All signals are compatible with RAYLASE's extended function XY2-100 standard. Signal Signal +ZCH -Status1 -Sync... -
Page 16: Installation
If this is not possible, the laser used must be set to the lowest possible power. This setting must be secured against accidental adjustment. RAYLASE 3-Axis Subsystem AS-50 for Laser Beam Deflection MN049 / v1.0.0... -
Page 17: Mount Subsystem
To install the subsystem, insert locating pins into the corresponding holes and attach the subsystem to the prepared installation surface using screws. Note: The subsystem may only be installed using the pins and screws specified by RAYLASE. Follow the installation drawing supplied. Checking the beam coupling 5.2.1... -
Page 18: Checking Procedure
The laser beam can cause severe injury to the eyes and the skin. Make sure that all personnel in the laser area are wearing appropriate protective goggles and, if necessary, protective clothing. Fig. 6 Checking the beam coupling RAYLASE 3-Axis Subsystem AS-50 for Laser Beam Deflection MN049 / v1.0.0... -
Page 19: Assembly
Installation Chapter Checking the input point o Place a piece of thermo transfer paper behind the cross hair device (A). o Insert the cross hair device at position (A). o Turn on the laser at low power for just long enough for a clearly visible effect to appear on the thermo transfer paper (C). -
Page 20: Adjustment Procedure
Create all electrical connections for the power supply and for control of the subsystem ( page 12, Subsystem). o For details of connecting the deflection unit to a RAYLASE control card and operation with RAYLASE software, refer to the corresponding manuals. -
Page 21: Adjusting The Field Size
Installation Chapter 5.3.2 Adjusting the field size Fig. 7 Field size adjustment o Loosen the two retaining screws (1). o Move the linear translator to the distance (D) specified in the reference table in the appen- dix. As shown above, the distance (D) is measured from the front edge of the linear trans- lator to the inner side of the housing plate. -
Page 22: Cleaning
Regular checking and cleaning of the optical surfaces can prevent permanent damage. Note: RAYLASE accepts no liability for damaged optical components! Note: Damage caused during the laser process, e.g. when processing metals, is irreversible and cannot be resolved by cleaning. -
Page 23: Instructions For Cleaning Protection Windows
Install the lens holder in the linear translator. Pay attention to the corresponding markings. For cleaning the mirrors and the moving lens, we strongly recommend sending the subsystem to RAYLASE, as opening of the deflection unit or dismantling of the moving lens by unauthor- ized personnel voids the warranty. -
Page 24: Special Instructions For Zinc Selenide Optical Elements
Leave the room for at least 30 minutes! Wear gloves and a mouth protector while performing the subsequent steps! Carefully collect up all fragments and pack them in an airtight sealed plastic container. RAYLASE 3-Axis Subsystem AS-50 for Laser Beam Deflection MN049 / v1.0.0... - Page 25 Cleaning Chapter Clean all contaminated components and surfaces with a damp cloth and pack the cleaning cloths in a sealed plastic container. Return the containers to your supplier. The supplier is responsible for professional disposal of the material. Warning: Because of the risks outlined, zinc selenide optical elements must be cleaned with special care and is performed entirely at your own risk! MN049 / v1.0.0 3-Axis Subsystem AS-50 for Laser Beam Deflection...
-
Page 26: Maintenance
Chapter 7 Maintenance MAINTENANCE The subsystem does not contain any user-serviceable parts. Repairs may only be carried out by RAYLASE, as special know-how and comprehensive testing methods are required. RAYLASE 3-Axis Subsystem AS-50 for Laser Beam Deflection MN049 / v1.0.0... -
Page 27: Troubleshooting
X and Y axis Incorrect cabling reversed If the fault cannot be resolved, contact RAYLASE Customer Service for further assistance. MN049 / v1.0.0 3-Axis Subsystem AS-50 for Laser Beam Deflection... - Page 28 Functional description........11 Technical data ..........10 Functional principle........12 Troubleshooting ..........26 Identification code ......... 10 Warranty ............9 Installation ............. 15 Laser area ............6 Laser safety ............. 4 RAYLASE 3-Axis Subsystem AS-50 for Laser Beam Deflection MN049 / v1.0.0...
