Hardware Overview and Features
Don't snap apart your LilyPad ProtoSnap Plus until you're ready to use the pieces in a project. If you leave
the pieces attached to the board, you'll be able to prototype and test your project before you start sewing.

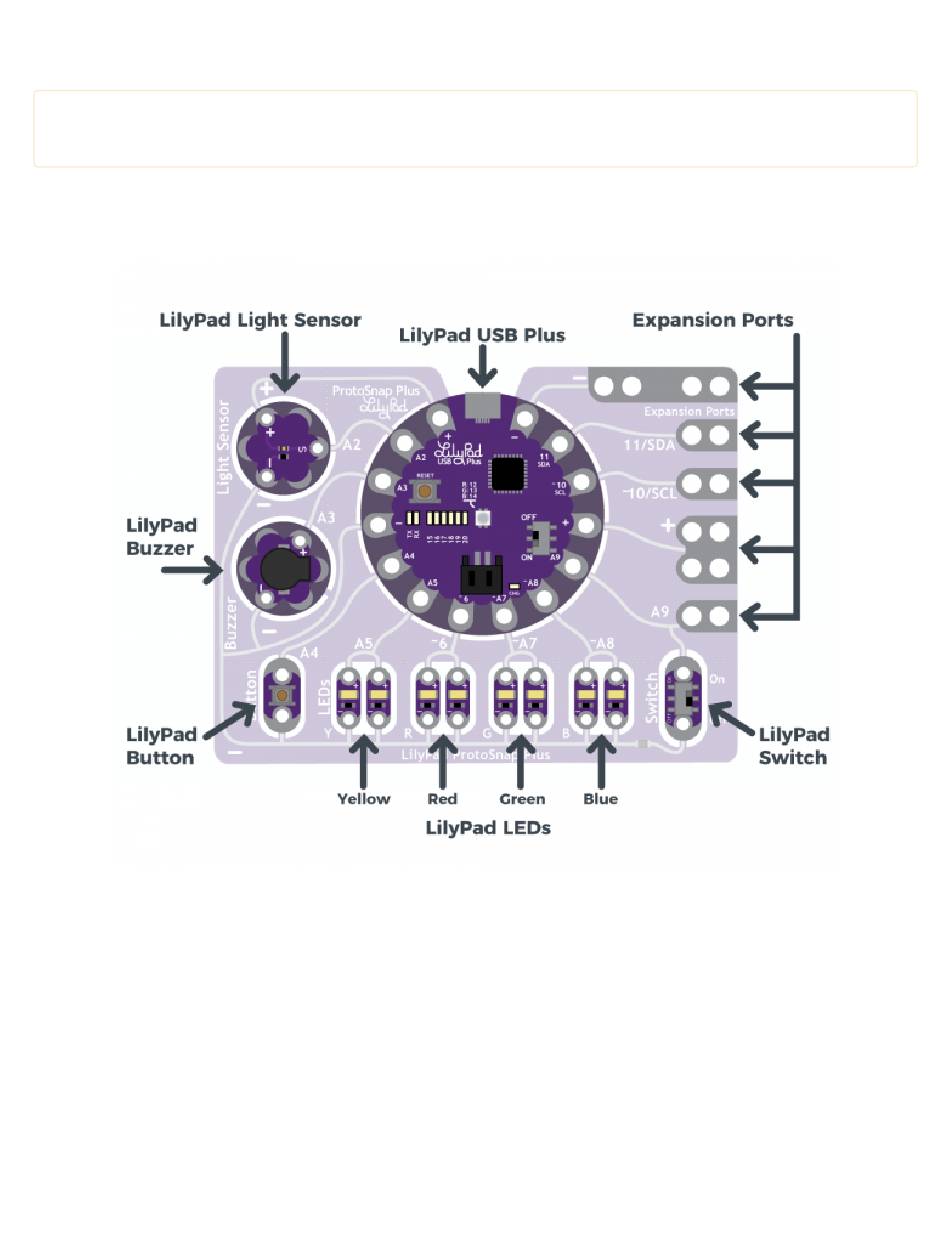

The LilyPad ProtoSnap Plus features twelve LilyPad components connected to a LilyPad microcontroller by
conductive pathways called traces. For reference, each component on the ProtoSnap has a nearby label with its
name and the number of the LilyPad USB Plus sew tab it is connected to.
LilyPad USB Plus
The LilyPad USB Plus is an Arduino-compatible microcontroller similar to the
Board
but with some additional features and three additional sew tabs. It is currently only available on the LilyPad
ProtoSnap Plus.
https://learn.sparkfun.com/tutorials/lilypad-protosnap-plus-hookup-guide?_ga=2.234157401.659504291.1516640116-204410570.1509632255
LilyPad ProtoSnap Plus Hookup Guide - learn.sparkfun.com
LilyPad Arduino USB - ATmega32U4
1/23

Advertisement

loading
Need help?

Need help?

Do you have a question about the LilyPad ProtoSnap Plus and is the answer not in the manual?

Questions and answers
