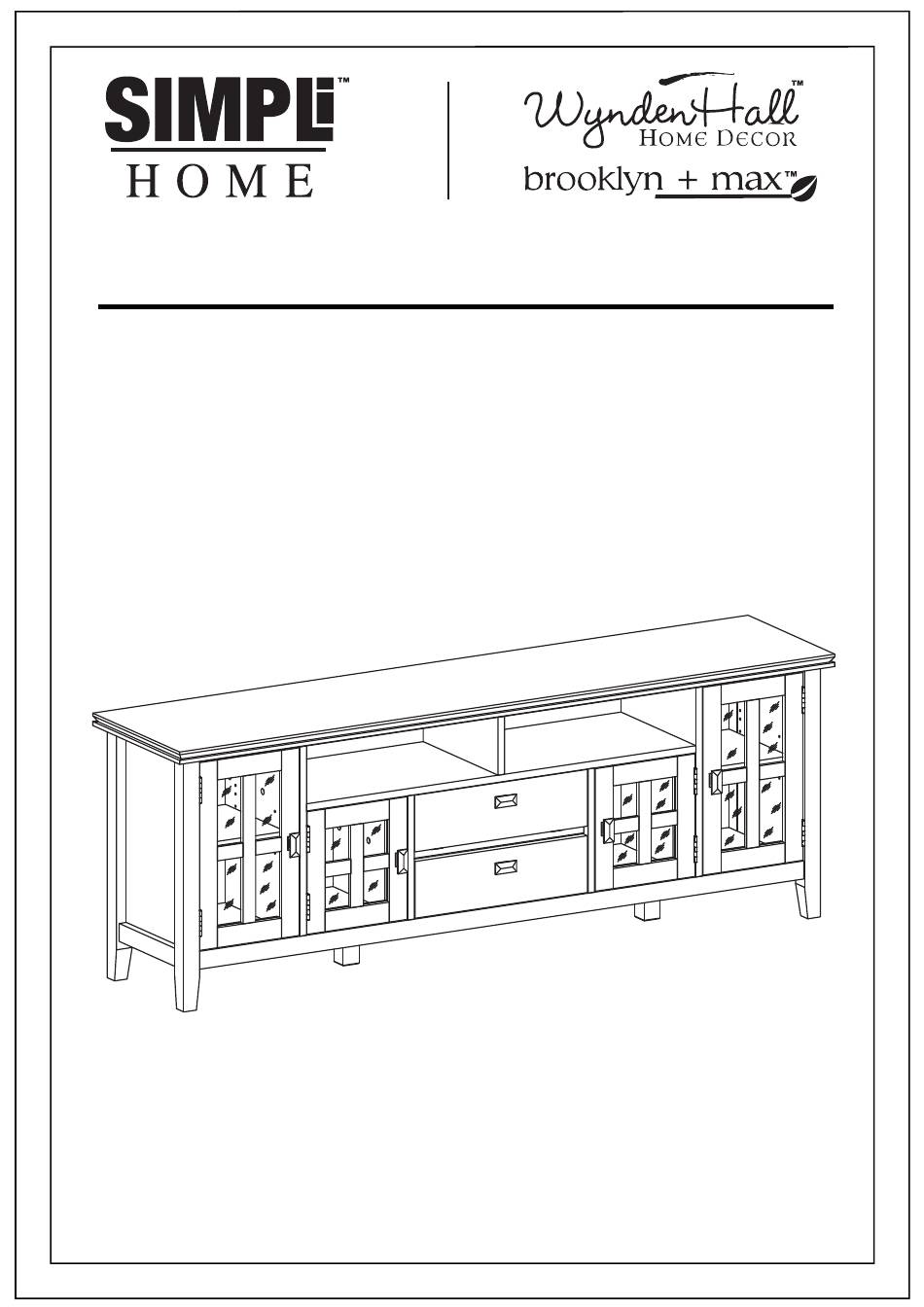

- Page 1 ARTISAN HOLDEN STRATFORD 72 INCH TV STAND MODEL # AXCHOL005-72-NAB 1/22...
- Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM...
- Page 3 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/22...
-
Page 4: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. - Page 5 PRE ASSEMBLY INFORMATION MODEL # AXCHOL005-72-NAB PARTS DESCRIPTION TOP SHELF BOTTOM SHELF QTY 1 QTY 1 QTY 1 BACK PANEL SIDE DIVIDER QTY 1 SET QTY 1 PAIR QTY 1 PAIR MIDDLE DIVIDER TOP DIVIDER CENTER SHELF QTY 1 PAIR...
- Page 6 PRE ASSEMBLY INFORMATION MODEL # AXCHOL005-72-NAB PARTS DESCRIPTION FLIP DOWN DOOR DRAWER FRONT BOTTOM SUPPORT LEG QTY 1 QTY 1 QTY 2 DRAWER SIDE DRAWER BACK DRAWER BOTTOM QTY 1 PAIR QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
-
Page 7: Hardware Description
PRE ASSEMBLY INFORMATION MODEL # AXCHOL005-72-NAB HARDWARE DESCRIPTION HANDLE ALLEN KEY SCREW CAM LOCK PIN M4 X 25mm ALLEN KEY M6 X 30 mm CAM LOCK QTY 6 SETS QTY 1 QTY 43 QTY 19 SETS PHILLIPS SCREW ROUND HEAD... - Page 8 COMPONENTS – KEY DIAGRAM MODEL # AXCHOL005-72-NAB 8/22...
- Page 9 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front O . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides P . 3. Insert 2 Cam Locks 2 into pre-drilled holes on each Drawer Side P .
- Page 10 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 3 1. Align Drawer Back Q with Drawer Bottom R and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each Side P . 3. Use Allen Key 3 to tighten screws. Do not over-tighten.
- Page 11 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 5 1. Attach Centre Shelf I to each Middle Divider G using 3 Allen Key Screws 1 . 2. Use Allen Key 3 to tighten screws. Do not over-tighten. 11/22...
- Page 12 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 6 NOTE: The screwdriver is not included in the hardware pack. 1. Attach 6 Cam Lock Pins 2 into pre-drilled holes on the bottom of Top Shelf C . 2. Align Cam Lock Pins with pre-drilled holes on Middle Divider G .
- Page 13 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 7 1. Attach Top Shelf C to each Divider F using 3 Allen Key Screws 1 . 2. Use Allen Key 3 to tighten screws. Do not over-tighten. 13/22...
- Page 14 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 8 1. Attach Bottom Shelf B to Dividers F & G using 12 Allen Key Screws 1 (3 Allen Key Screws / each Divider ). 2. Use Allen Key 3 to tighten screws. Do not over-tighten.
- Page 15 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 9 NOTE: The screwdriver is not included in the hardware pack. 1. Attach 3 Cam Lock Pins 2 to each Side E . 2. Align Cam Lock Pins with pre-drilled holes and attach Bottom Shelf B .
- Page 16 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 10 1. Attach 3 Cam Lock Pins 2 into pre-drilled holes on bottom of Top A ( at center ). 2. Align Cam Lock Pins with pre-drilled holes on Top Divider H . 3. Insert 3 Cam Locks 2 into pre-drilled holes on Top Divider H .
- Page 17 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 11 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Back Panels D to back of cabinet using Phillips Screws Round Head 5 into pre-drilled guide holes. 2. Use Phillips screwdriver to tighten screws.
- Page 18 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 12 NOTE: The screwdriver is not included in the hardware pack. 1. Attach hinges on Doors K to Sides E using Phillips Screw 9 into guide holes. 2. Attach hinges on Doors L to Divider F using Phillips Screw 9 into guide holes.
- Page 19 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 13 1.Use 4 Shelf Supports 7 for each Shelf J in desired location . 2. 2 Shelf Supports 7 may be used on back top of each Shelf J as a tipping restraint. STEP 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 20 ASSEMBLY MODEL # AXCHOL005-72-NAB STEP 15 NOTE: The screwdriver is not included in the hardware pack. 1. To attach Tipping Restraint 13 , follow instructions on Tipping Restraint package. When you determined the location for your unit, install the Furniture Tipping restraint.
-
Page 21: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 22 Questions, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings...
