Summary of Contents for Simpli Home Carlton 3AXCCRL-08

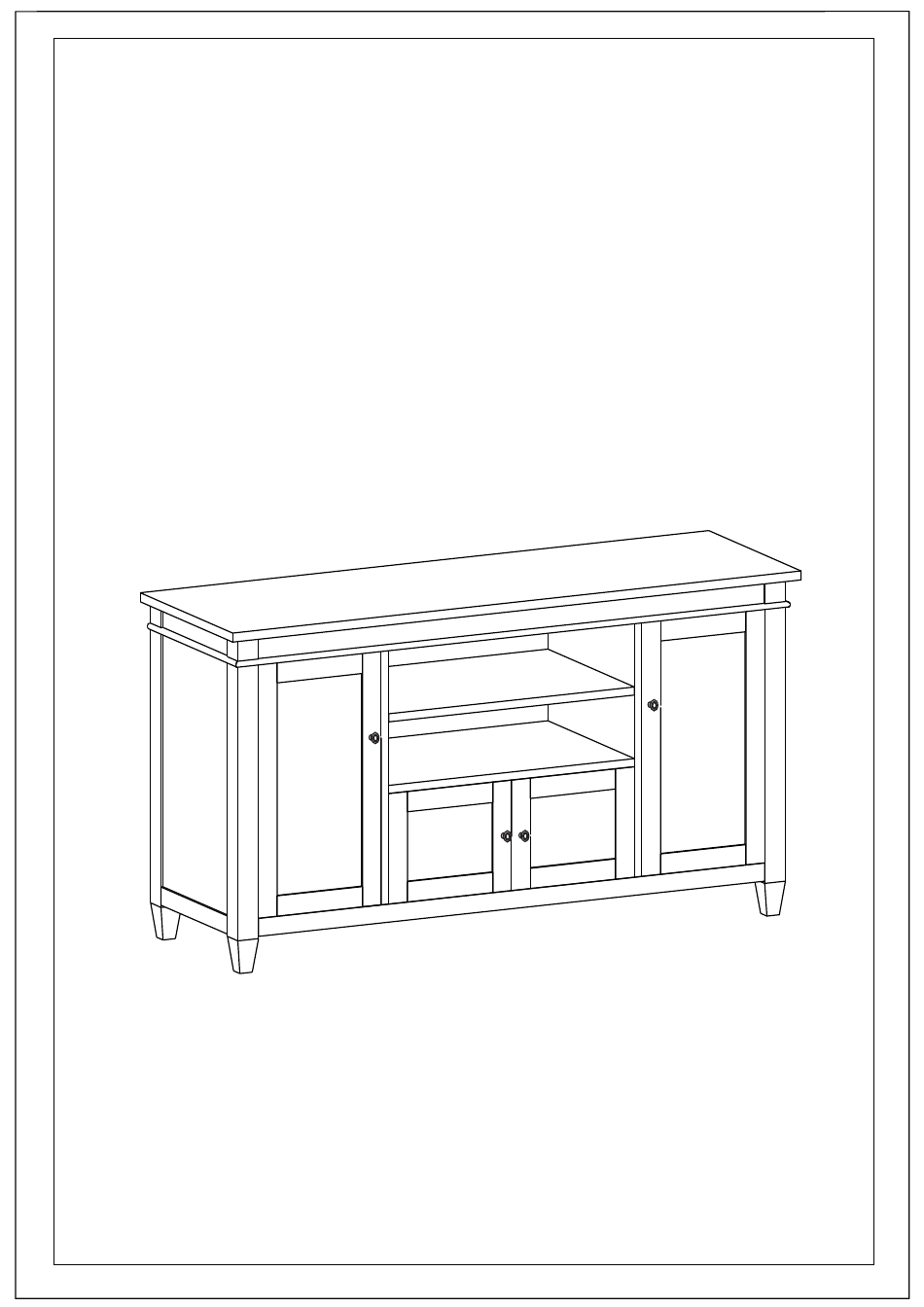

- Page 1 TV MEDIA STAND 1/13...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/13...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Parts Description
PRE ASSEMBLY INFORMATION PARTS DESCRIPTION SIDE DIVIDER QTY 1 QTY 1 PAIR QTY 1 PAIR BOTTOM PANEL TOP SHELF CABINET SHELF QTY 1 QTY 1 QTY 1PAIR CABINET SHELF DOOR DOOR QTY 1 QTY 1 PAIR QTY 1PAIR BACK PANEL FRONT BAR QTY 1 SET QTY 1... -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN M6 X 30 mm CAM LOCK ALLEN KEY QTY 18 SETS QTY 1 PHILLIPS SCREW HANDLE WOOD DOWEL ROUND HEAD M4 X 25 mm M4 X 15 mm 8 X 30 mm QTY 4 SETS QTY 4 3 QTY 16... - Page 6 COMPONENTS – KEY DIAGRAM 6/13...
- Page 7 ASSEMBLY STEP 1 Shelf Shelf STEP 2 1. Insert Wood Dowels 6 into pre-drilled holes of Dividers C . 2. Attach Dividers C to Bottom Panel D with Allen Key Screws 1 through pre-drilled holes . 7/13...
- Page 8 ASSEMBLY STEP 3 1. Insert Wood Dowels 6 into pre-drilled holes of Bottom Panel D and Front Bar K . 2. Attach Cam Lock Pins 2 to Sides B using guide holes. 3. Align Cam Locks Pins 2 into pre-drilled holes on Bottom Panel D . 4.
- Page 9 ASSEMBLY STEP 5 NOTE: The screwdriver is not included in the hardware pack. 1. Attach hinges on Doors I and Sides B using Phillips Screws 10. 2. Attach hinges on Doors H and Divider C using phillips Screws 10. 3. Attach Magnet Plates 7 to Bottom corner of Doors I and H using Phillips Screws 9 into guide holes on Doors I and H .
- Page 10 ASSEMBLY STEP 7 1. Use 4 Shelf Supports 8 for each shelf F & G in desired location. 2. 2 Shelf Supports 8 may be used on Back Top of each Shelf F & G as a tipping restraint. STEP 8 STEP 8 NOTE: The screwdriver is not included in the hardware pack.
-
Page 11: Warranty
WARRANTY Thank you for purchasing product. These products have been made to demanding, high-quality standardsand are guaranteed for domestic use against manufacturing faults for a period of12 months from the date of purchase. This warranty does not affect yourstatutory rights. In case of any malfunction of your product (failure, missing parts, etc.) please contact us at our toll free service line or by email. - Page 12 Question, problems, missing parts? Before returning please email Customer Support or call Customer Service For more information visit us on our website Like us on facebook 12/13...
- Page 13 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of our pieces Free!!! (draws monthly – shipping included) (vanities not included) 13/13...
