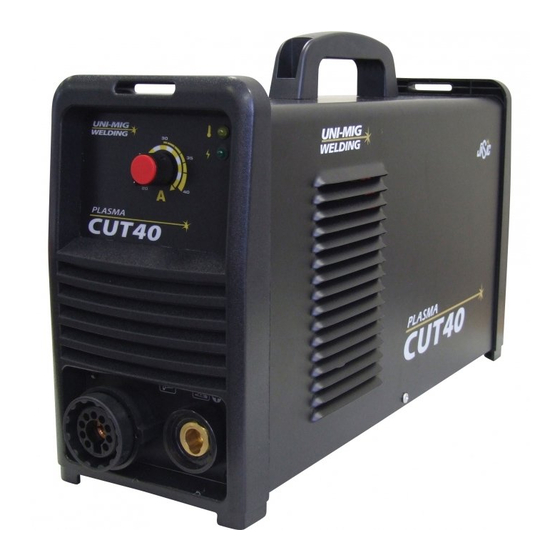

Uni-Mig CUT40 Instruction Manual

Uni-Mig CUT40 Instruction Manual

240v 10mm steel
Hide thumbs Also See for CUT40:

Advertisement

Page 1

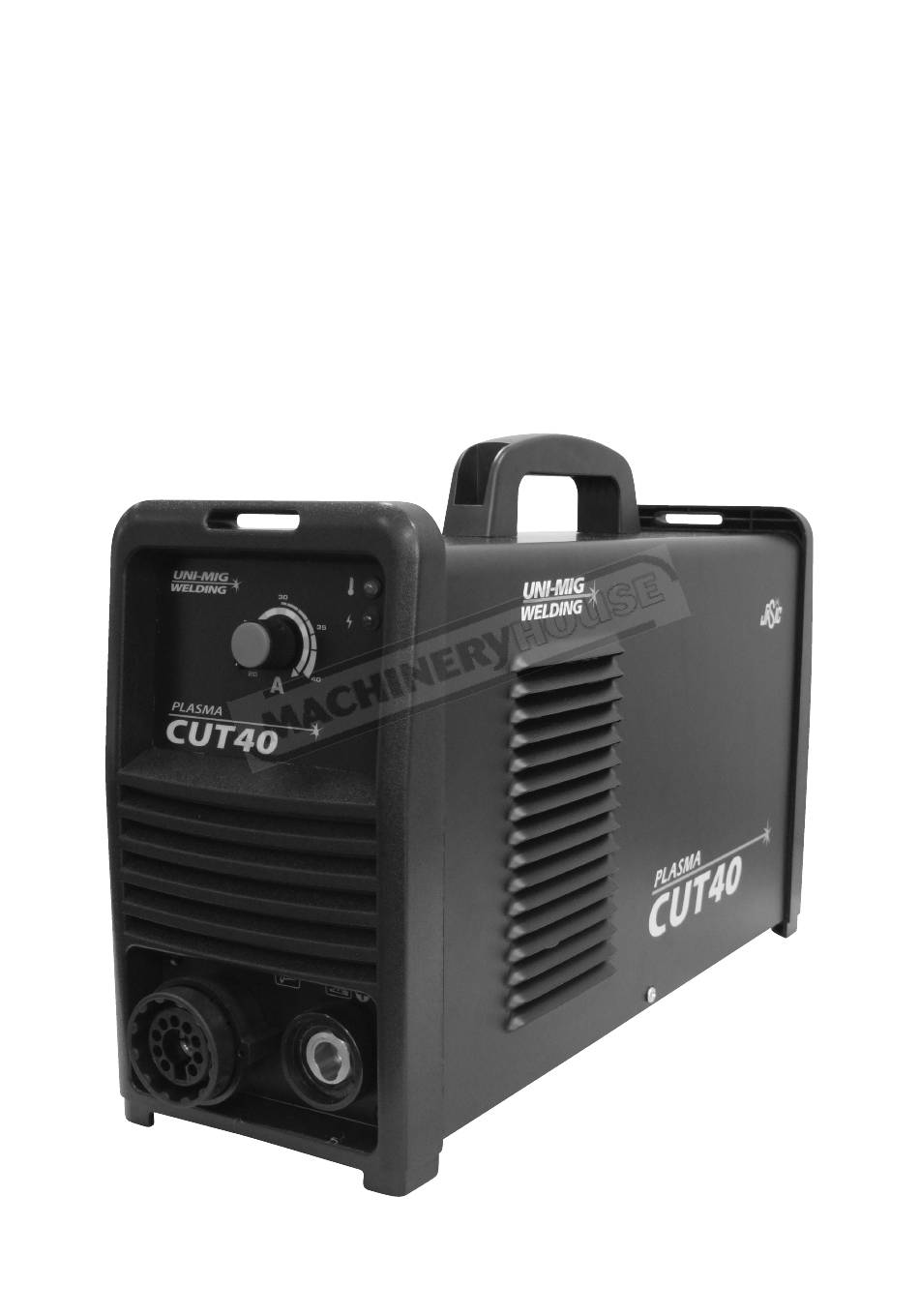

Instruction Manual for CUT40 (C422)
19/12/2014
INSTRUCTION MANUAL
CUT40
Plasma Cutter (240V)
10mm Steel
#KUPJR40
C422

Advertisement

loading
Need help?

Need help?

Do you have a question about the CUT40 and is the answer not in the manual?

Questions and answers

Summary of Contents for Uni-Mig CUT40

  • Page 1 Page 1 Instruction Manual for CUT40 (C422) 19/12/2014 INSTRUCTION MANUAL CUT40 Plasma Cutter (240V) 10mm Steel #KUPJR40 C422...
  • Page 2: Table Of Contents

    Page 2 Instruction Manual for CUT40 (C422) 19/12/2014 CONTENTS - Safety - General Description - Technical Specifications - Installation & Operation - Maintenance - Spare Parts List - Machine - Spare Parts List - Torch EC DECLARATION OF CONFORMITY Hereby we declare that our machines for industrial and professional...
  • Page 3: Safety

    Page 3 Instruction Manual for CUT40 (C422) 19/12/2014 CAUTION! BEFORE INSTALLING, OPERATING OR CARRYING OUT MAINTENANCE ON THE PLASMA CUTTER, READ THE CONTENTS OF THIS MANUAL CAREFULLY, PAYING PARTICULAR ATTENTION TO THE SAFETY RULES. In the event of these instructions not being clear, please contact your supplier.
  • Page 4 Page 4 Instruction Manual for CUT40 (C422) 19/12/2014 EYE AND BODY PROTECTION One of the hazards during the cutting process is the emission of electromagnetic waves due to the electric arc. The length of these waves ranges from infrared to ultraviolet. If these rays hit the eyes, they can cause various complaints such as conjunctivitis, burns to the retina, deterioration of sight, etc.
  • Page 5 Page 5 Instruction Manual for CUT40 (C422) 19/12/2014 NOISE Noise is generated during the cutting process. The noise level depends on the cutting parameters used. CAUTION: Noise can damage hearing Wear adequate hearing protection. BURNS The operator should be adequately protected during cutting operations. This should be routine practice.
  • Page 6: General Description

    Page 6 Instruction Manual for CUT40 (C422) 19/12/2014 GENERAL DESCRIPTION The plasma cutting unit generates constant current and has been designed to cut metals. The cutting process is carried out through the melting of the metal caused by high temperature created by the electric arc between the torch electrode and the base metal.
  • Page 7: Technical Specifications

    Page 7 Instruction Manual for CUT40 (C422) 19/12/2014 TECHNICAL SPECIFICATIONS TYPE CUT40(B) Input voltage (V) 240V AC ±10% Input Frequency (Hz) 50/60 Input capacitance (KVA) No-load voltage (V) Current range (A) 20-40 Output cutting voltage (V) Rated duty cycle (%)
  • Page 8: Installation & Operation

    Page 8 Instruction Manual for CUT40 (C422) 19/12/2014 INSTALLATION AND OPERATION In order for the unit to function correctly, it must be installed properly. Follow the procedure given below for correct installation: Read the safety rules given in this manual carefully.
  • Page 9 Page 9 Instruction Manual for CUT40 (C422) 19/12/2014 REGULATOR INSTALLATION AIR REGULATOR Attach to fitted mounts on the back of the machine. see figure below. attach quick release plug to connector socket see figure below.
  • Page 10: Maintenance

    Page 10 Instruction Manual for CUT40 (C422) 19/12/2014 MAINTENANCE AND INSPECTION Of the torch: CAUTION: Before inspecting or changing the parts of the torch, disconnect the power supply to the unit Special tools are not required to replace torch parts. Simply unscrew the shield cup and all the components of the torch can easily be replaced.
  • Page 11: Spare Parts List - Machine

    Page 11 Instruction Manual for CUT40 (C422) 19/12/2014 SPARE PARTS DESCRIPTION PART No. Front panel J02042 Cover J03235 Handle J24005 Knob C16001 35/50 Panel socket female CX0031 Top PCB B01005 Input cable C08608 Heat sink J20003, J20004 Bottom PCB B03012...
  • Page 12: Spare Parts List - Torch

    Page 12 Instruction Manual for CUT40 (C422) 19/12/2014 TORCH PARTS PCH/M 35 Replacement Parts 07035 WGA Part No. Description 07035 9-5807 Torch Head 07103 8-4305 Handgrip 52519/D 9-6006 Electrode 60050 9-6007 Gas Distributor 51290 9-6000 Cutting Tip 35A 52523/D 9-6506...
