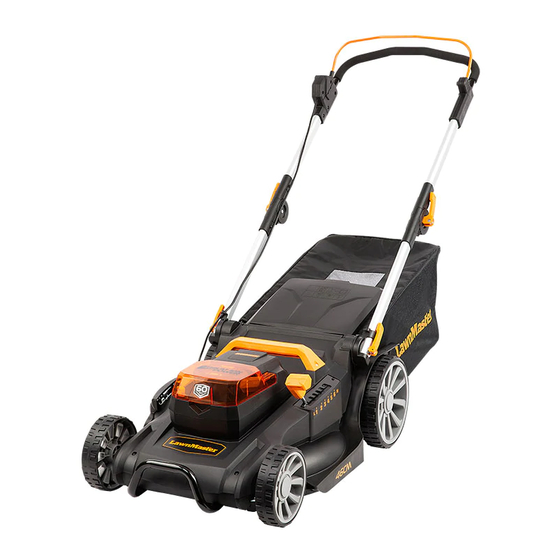

LawnMaster CLMFR6046A Instruction Manual

46cm 60v max* lithium-ion cordless mower
Hide thumbs Also See for CLMFR6046A:

Advertisement

Quick Links

Download this manual
Instruction Manual
46cm 60V MAX* Lithium-Ion Cordless Mower CLMFR6046A
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CLMFR6046A and is the answer not in the manual?

Questions and answers

Related Manuals for LawnMaster CLMFR6046A

Summary of Contents for LawnMaster CLMFR6046A

  • Page 1 Instruction Manual 46cm 60V MAX* Lithium-Ion Cordless Mower CLMFR6046A Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always...
  • Page 3 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6 Fig.7 Fig.8...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 7-16 In the Box Assembly 17-20 Operation 21-25 Maintenance 26-29 Troubleshooting 30-31 Recycling and Disposal...

  • Page 5: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Beware of sharp blades. Blades may continue to rotate after the motor is Switch off and remove the isolator key before adjusting, cleaning or before leaving the product unattended for any period.
  • Page 6 SYMBOLS SYMBOL DESIGNATION/EXPLANATION Do not subject the battery to direct sunlight over long periods and do not leave it on or near a heat source (max. 60°C). Recycle electrical waste products in an environmentally safe way where facilities exist. WARNING To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the instruction manual.

  • Page 7: Safety Information

    SAFETY INFORMATION IMPORTANT When using equipment, the following safety precautions must be followed to avoid injuries and damage: them. It is important to understand these instructions and to acquaint yourself with the machine, its correct usage and all safety requirements. available to the operator at all times.
  • Page 8 SAFETY INFORMATION and remove the battery pack and isolator key. children, or pets are nearby. doorways, shrubs, trees, or other objects that may obscure your view of a child or animal that may run into the path of the mower. accidents or hazards occurring to other people or their property.
  • Page 9 SAFETY INFORMATION slopes. towards you. Pay attention to what you are doing. alcohol or drugs. transportation when crossing surfaces other than grass, and when transporting the machine to and from areas to be mowed. grass collector, in place. with feet well away from the blade(s). motor on, except if the machine must be tilted for starting in long grass.
  • Page 10 SAFETY INFORMATION running. times. off. Any machine that cannot be controlled with the switch is dangerous and must be repaired. mower and remove the battery pack and isolator key. Make sure that all moving parts have come to a complete stop: for damage and make repairs before restarting and operating the mower.
  • Page 11 SAFETY INFORMATION injury. handle immediately. intended. Do not force the mower. while the motor is running. in the rain or in enclosed or poorly-ventilated environments, gases nearby. or roads. mower is in a safe condition for use. deterioration. parts of the machine. wait until the blade comes to a complete stop before removing the collection bag or carrying out maintenance.
  • Page 12 SAFETY INFORMATION damaged safety devices. Doing so can result in injury. mower is not in use. This prevents accidental starting of the machine. genuine replacement parts and accessories. recognise and handle risks early. Fast intervention can prevent serious injury and damage to property. is any malfunction.
  • Page 13 SAFETY INFORMATION temperature between 0°C and 25°C. Battery Safety Information manufacturer. A charger that is suitable for one type of another battery pack. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery. sources may cause an increased danger of explosion. use a battery pack or charger that has been dropped or received a sharp blow.
  • Page 14 SAFETY INFORMATION leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If liquid gets minutes, then seek immediate medical attention. other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
  • Page 15 SAFETY INFORMATION immediately discontinue use. Replace the charger with the manual. If the power cord for this equipment is damaged, it must be replaced by the manufacturer, a customer service prevent hazards. outlets will reduce the risk of electric shock. not use a defective charger and do not disassemble the electric shock or electrocution.

  • Page 16: In The Box

    SAFETY INFORMATION All exposed metal parts are isolated from the internal metal motor components with protecting insulation. Intended Use This lawnmower is designed for domestic use only: domestic and hobby gardens. and may not be used to mow wet or unusually high grass. not for any commercial trade use.

  • Page 17: Assembly

    ASSEMBLY Assembly Preparation includes suitable personal protective equipment. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to pay attention to this warning could result in serious personal injury. WARNING Do not attempt to modify this product or create accessories not recommended for use with this leading to possible serious personal injury.
  • Page 18 ASSEMBLY handle. Do not use excessive force; this may damage the levers (Fig. 4). Assembling the Grass Collection Bag (See Figs. 5-6) Your mower comes with a tool free grass collection bag. located on the top (Fig. 5). support legs are located on the inside of the collection bag. support sleeves (Fig.
  • Page 19 ASSEMBLY NOTE: This mulching plug prevents grass from being collected by blocking the collection chute. This allows nutrient for the lawn. To install the mulching plug: discharge chute. Ensure that the locking latch snaps into place (Fig. 9 & 10). To remove the mulching plug: the mulching plug up and out of the discharge chute.
  • Page 20 ASSEMBLY To install the battery pack: Open the battery compartment cover on top of the mower deck. and then insert the battery pack into the compartment. NOTE: starting operation. To remove the battery pack: battery compartment (Fig. 12).

  • Page 21: Operation

    OPERATION Setting the Cutting Height (See Fig. 13) WARNING removing the isolator key. Keep your feet away from the deck when adjusting its height. your lawn. The mower can be set to 6 cutting heights between 25mm and 75mm. Choose the appropriate cutting height according to the types and conditions of the grass.
  • Page 22 OPERATION • Protect the battery from heat, from continuous exposure to sun and keep away from radiation or other heat sources. Do not leave the battery in the mower in direct sunlight over long periods. • The battery is supplied partially charged. To ensure full capacity of the battery, charge the at any time without reducing its service life.
  • Page 23 OPERATION • Charged: continuous green LED on the charger indicates that the battery is ready for use. Wait until the cooling fan stops, remove the battery pack from the charger and disconnect the charger from the power supply. • on the charger indicates that charging is paused.
  • Page 24 OPERATION iPower Mode Indicator (See Fig. 20) Push the press button repeatedly to cycle through the different motor power output levels (Fig. 20). Motor Power Output Level Runtime Mode Indicator on Panel Automatically adjust to suit your lawn conditions. Balanced Runtime Lawn needs only light mowing.
  • Page 25 OPERATION Mowing (See Figs. 21-22) lawn mower blades or motor. Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others. gradually at each pass. Never cut the grass by more than half its height. proper collection of the clippings.

  • Page 26: Maintenance

    MAINTENANCE WARNING Always switch the product off, disconnect the battery pack and isolator key and let the product cool down before performing inspection, maintenance and cleaning work! WARNING other parts may create a hazard or cause product damage. WARNING Always wear safety goggles or glasses with side shields during power tool operation. If operation is dusty, it is advised to also wear a dust mask.
  • Page 27 MAINTENANCE Replacing the Mower Blade (See Figs. 23-24) NOTE: Remove the isolator key and battery before performing any maintenance! NOTE: recommended replacement blades. location. hold the blade, in order to prevent the blade from turning when the blade nut is being removed. kit.
  • Page 28 MAINTENANCE To check the blade balance: NOTE: If a vise is not available, a straight nail can also be used. downward, sharpen the heavy side until the blade is balanced. Storing the Mower (See Figs. 27-28) To lower the handle before storing: cables do not become trapped (Fig.
  • Page 29 MAINTENANCE The underside of mower deck should be cleaned after each use as grass clippings, leaves, dirt and other debris may accumulate causing rust and corrosion. the mower clean with a dry cloth occasionally. isolator key and battery pack. Tilt the mower forward, or on its side, and clean.

  • Page 30: Troubleshooting

    TROUBLESHOOTING WARNING Only perform the steps described within these instructions! All further inspection, maintenance and Gloves and appropriate protective clothing must be worn when performing these instructions. Always turn off the machine and remove the battery pack and isolator key before making any adjustment.
  • Page 31 TROUBLESHOOTING Wet grass clippings are sticking Wait until the grass dries before Mower does not mulch to the underside of the deck. mowing. properly. Missing mulching plug. Install the mulching plug. Check underneath the mower and Possible clogging. clear out as necessary (always wear Poor cutting or motor gardening gloves).
  • Page 32 SPECIFICATIONS 60V Cordless Mower CLMFR6046A No Load Speed 3200-3300-3400 /min Cutting Width 46cm Cutting Height Adjustment 25/35/45/55/65/75mm (6 Positions) Grass Collection Box Capacity Functions 4-in-1: Mulch, Rear Bag, Rear Discharge, Side Discharge Wheel Size 170/235mm Degree of Protection Sound Pressure Level (L...

  • Page 33: Recycling And Disposal

    RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly. This appliance contains Lithium-ion battery. Do not dispose of batteries in household where they will be recycled in an environmentally friendly manner.
  • Page 34 Fig.9 Fig.10 Fig.11 Fig.12 Fig.13 Fig.14 Fig.15 Fig.16 Fig.17 Fig.18 Fig.19 Fig.20 Fig.21 Fig.22 Fig.23 Fig.24 Fig.25 Fig.26 Fig.27 Fig.28...
