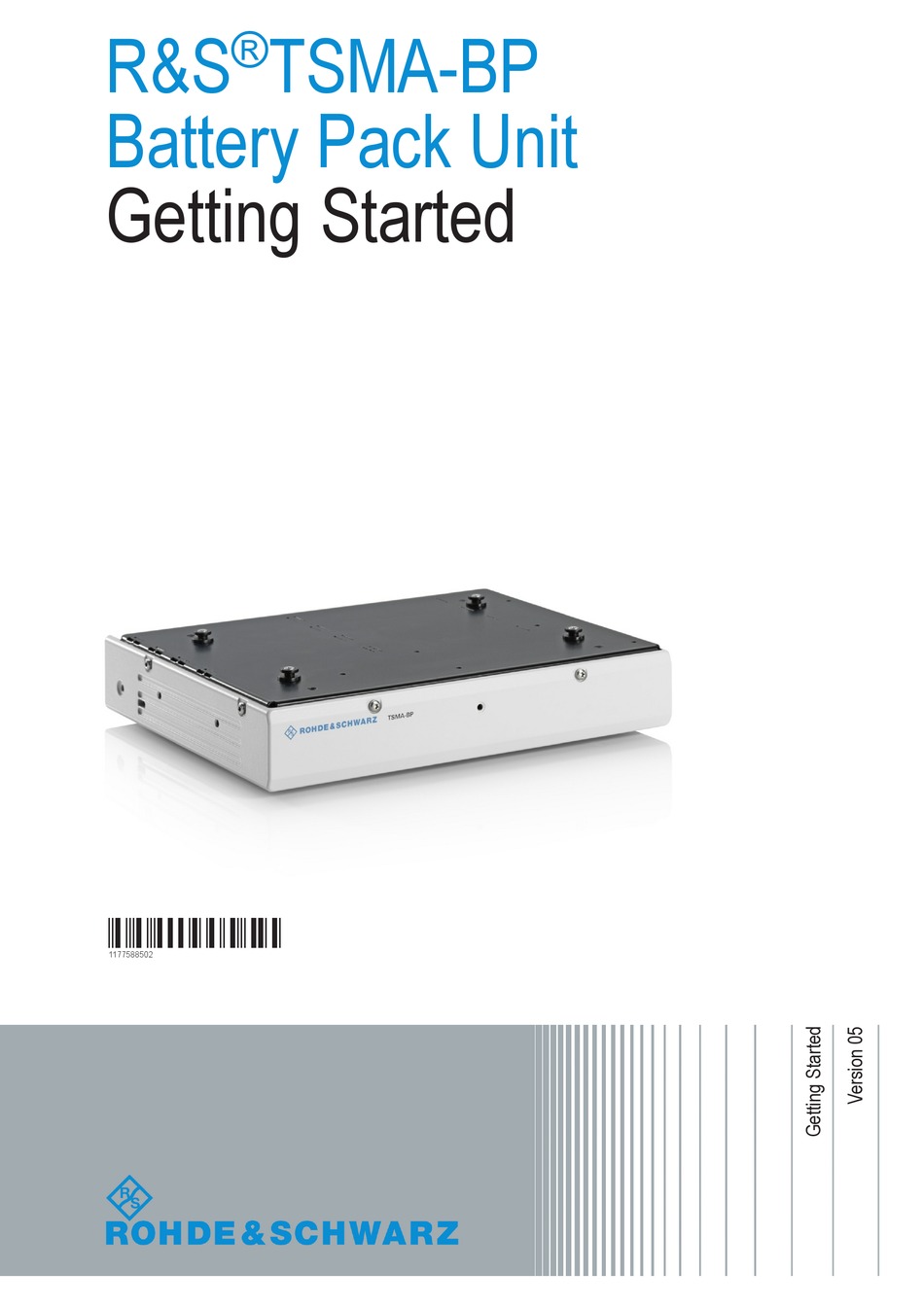

- Page 1 ® R&S TSMA-BP Battery Pack Unit Getting Started (;ÛÈã2) 1177588502...
- Page 2 Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of the owners. ® 1177.5885.02 | Version 05 | R&S TSMA-BP ® The following abbreviations are used throughout this manual: R&S TSMA-BP Battery Pack Unit is abbre- viated as R&S TSMA-BP Battery Pack Unit.
-
Page 3: Table Of Contents
3 Key Features................8 4 Preparing for Use..............9 4.1 Unpacking and Setting Up the Instrument......... 9 4.2 Inserting a Battery in the R&S TSMA-BP Battery Pack Unit... 10 4.3 Connecting the R&S TSMA-BP Battery Pack Unit with R&S TSMA ......................11 4.4 Connecting the R&S TSMA-BP Battery Pack Unit with External... - Page 4 ® Contents R&S TSMA-BP Getting Started 1177.5885.02 ─ 05...
-
Page 5: Safety Information
R&S TSMA-BP Safety Information The product documentation helps you use the R&S TSMA-BP Battery Pack Unit safely and efficiently. Follow the instructions provided here and in the printed "Basic Safety Instructions". Keep the product documentation nearby and offer it to other users. -
Page 6: Documentation Overview
TSMA-BP Battery Pack Unit product page at: www.rohde-schwarz.com/manual/tsmx Getting Started Manual Introduces the R&S TSMA-BP Battery Pack Unit and describes how to set up and start working with the product. Includes basic operations, typical measurement examples, and general information, e.g. safety instructions, etc. A printed version is delivered with the instrument. -
Page 7: Release Notes And Open Source Acknowledgment (Osa)
® Documentation Overview R&S TSMA-BP Release Notes and Open Source Acknowledgment (OSA) www.rohde-schwarz.com/brochure-datasheet/tsmx Release Notes and Open Source Acknowledg- ment (OSA) The release notes list new features, improvements and known issues of the cur- rent firmware version, and describe the firmware installation. -
Page 8: Key Features
R&S TSMA-BP Key Features The R&S TSMA-BP Battery Pack Unit allows to enhance the R&S TSMA instru- ment to a portable measurement solution based on a battery powered system. Key Features ● Power Supply for R&S TSMA in portable applications ●... -
Page 9: Preparing For Use
® Preparing for Use R&S TSMA-BP Unpacking and Setting Up the Instrument Preparing for Use Risk of injury due to disregarding safety information Observe the information on appropriate operating conditions provided in the data sheet to prevent personal injury or damage to the instrument. Read and observe the basic safety instructions provided with the instrument, in addition to the safety instructions in the following sections. -
Page 10: Inserting A Battery In The R&S Tsma-Bp Battery Pack Unit
Accessory list The following items are included with shipment of the R&S TSMA-BP Battery Pack Unit: ● R&S TSMA-BP Battery Pack Unit (R&S TSMA-BP, R&S No. 1523.8009.02) The following items are optional and must be ordered separately: ●... -
Page 11: Connecting The R&S Tsma-Bp Battery Pack Unit With R&S Tsma
Connecting the R&S TSMA-BP Battery Pack Unit with R&S TSMA In order to use the R&S TSMA with the R&S TSMA-BP Battery Pack Unit, the fol- lowing steps must be performed. The R&S TSMA-BP Battery Pack Unit may be used only with closed battery cover. - Page 12 ® Preparing for Use R&S TSMA-BP Connecting the R&S TSMA-BP Battery Pack Unit with R&S TSMA Figure 4-2: R&S TSMA-BP 1 = Connectors for R&S TSMA base unit Figure 4-3: R&S TSMA Base Unit (bottom side) 1 = Connectors for R&S TSMA-BP 2.
- Page 13 1 = Vertical attachment of R&S TSMA base unit (bottom) with R&S TSMA BP (top) 2 = Move T&S TSMA base unit to the front side 3. Lock the interconnection using the lock (3). Figure 4-5: Connection of R&S TSMA with R&S TSMA-BP Battery Pack Unit Getting Started 1177.5885.02 ─ 05...
- Page 14 3 = Lock (front side) 4. Via the cable (3), you have to connect the DC IN connector on the R&S TSMA (1) with the TSMA connector (7 pins) on the R&S TSMA-BP Battery Pack Unit (2). Figure 4-6: Cabling of R&S TSMA with R&S TSMA-BP Battery Pack Unit 1 = DC IN Connector of R&S TSMA Base Unit...
-
Page 15: Connecting The R&S Tsma-Bp Battery Pack Unit With External Power Supply
TSMA-BP Connecting the R&S TSMA-BP Battery Pack Unit with External Power Supply The R&S TSMA Base Unit boots as soon as the R&S TSMA-BP Battery Pack Unit (including charged batteries) is connected with the R&S TSMA via the con- nection cable (3). - Page 16 TSMA-BP Connecting the R&S TSMA-BP Battery Pack Unit with External Power Supply Figure 4-8: Connecting the R&S TSMA-BP Battery Pack Unit with a AC power supply 1 = DC IN Connector R&S TSMA Base Unit 2 = TSMA Connector R&S TSMA-BP Battery Pack Unit 3 = Interconnection Cable (R&S TSMA Base Unit <->...
-
Page 17: Operation
1 = Charging state display The batteries can be exchanged during operation (hot-swap mode). In this case, at least one battery must be always in the R&S TSMA-BP Battery Pack Unit. Do not remove both batteries at the same time. - Page 18 Figure 5-2: R&S TSMA-BP Battery Pack Unit - Status LEDs 1 (P501) = Status LED for battery 1 2 (P500) = Status LED for battery 2 Table 5-1: R&S TSMA-BP Battery Pack Unit LED states and their meaning (LED 1 and LED Color State...
- Page 19 Operation R&S TSMA-BP The LEDs of the R&S TSMA-BP Battery Pack Unit are controlled by the R&S TSMA instrument. The R&S TSMA-BP Battery Pack Unit without con- nected R&S TSMA instrument does not display the charging status via the LEDs.
-
Page 20: Index
® Index R&S TSMA-BP Index Brochures ..........6 Data sheets ..........6 Getting started ........... 6 Help ............6 Open source acknowledgment (OSA) ..7 Release notes ........... 7 Safety instructions ........6 User manual ..........6 Getting Started 1177.5885.02 ─ 05...
