BeneVision TM80
Telemetry Monitor
Q u i c k R e fe re n ce G u i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BeneVision TM80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mindray BeneVision TM80

Summary of Contents for Mindray BeneVision TM80

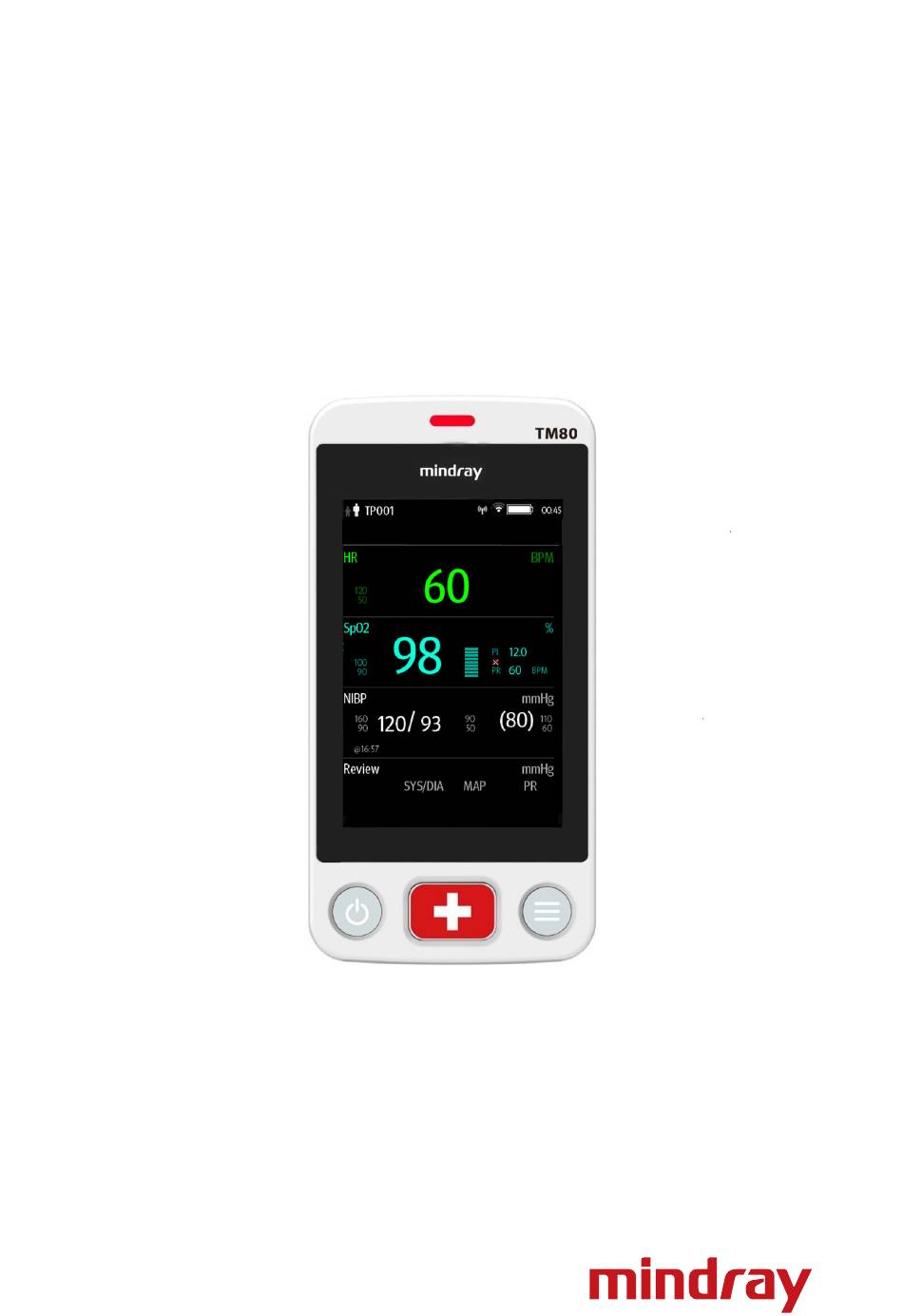

  • Page 1 BeneVision TM80 Telemetry Monitor Q u i c k R e fe re n ce G u i d e...
  • Page 2 Note: The TM80 Quick Reference Guide is not intended as a replacement to the Operating Instructions. Prior to operating equipment, the user must be familiar with the Operating Instructions Manual contents. This document is a guideline only to be used as an aid to comprehensive Inservice Training.

  • Page 3: Table Of Contents

    Table of Contents TM80 Physical View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Navigation .
  • Page 4 Table of Contents (cont'd) (OPTIONAL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Connect the SpO Module .
  • Page 5 Table of Contents (cont'd) Clean/Disinfect the TM80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Clean the TM80 .

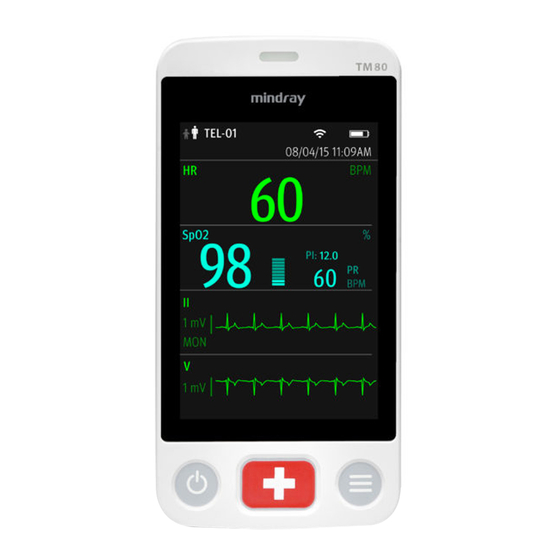

  • Page 7: Tm80 Physical View

    BeneVision TM80 Quick Reference Guide TM80 PHYSICAL VIEW 1. Display Activation (Power On/Off ) key When the TM80 is powered off • Pressing this key will turn the TM80 on. When the TM80 is powered on • And the screen display is on, pressing this key will turn the display off.
  • Page 8 BeneVision TM80 Quick Reference Guide • Pressing this key when the screen lock mode is configured for View Only will display the Screen Locked menu. 4. Display Touch screen display for viewing patient information and adjusting patient settings. 5. Patient alarm light indicator 6.

  • Page 9: General Navigation

    BeneVision TM80 Quick Reference Guide GENERAL NAVIGATION Swipe for More Data P/N: 046-017383-00 Rev1.0...

  • Page 10: View More Data

    BeneVision TM80 Quick Reference Guide View More Data The TM80 provides the following shortcuts to access additional information, as shown in the following figures: • Tap to enter the Patient Info menu • Tap to to view the MPAN info •...

  • Page 11: Quick Key/Screen Menu Bar Deployment

    BeneVision TM80 Quick Reference Guide Quick Key Deployment/Screen Menu Bar Deployment Note: The quick keys are configurable. These images are just representative. P/N: 046-017383-00 Rev1.0...

  • Page 12: Patient Setup

    BeneVision TM80 Quick Reference Guide PATIENT SETUP Admit After discharging the previous patient, you can admit a new patient by pressing Discharge Discharging the patient will stop monitoring, clear patient information, and restore default (preset) settings on the TM80. A patient can be discharged by selecting the Discharge Patient menu.

  • Page 13: Standby

    BeneVision TM80 Quick Reference Guide To adjust the patient category: 1. Press to enter the main menu. 2. Tap Patient Info. 3. Tap Patient Category to select the patient category. 4. Select Yes to confirm that the patient category should be changed.

  • Page 14: Resume Monitoring

    BeneVision TM80 Quick Reference Guide Resume Monitoring • Restores patient's settings, resumes alarm notification on the TM80 and the CMS. • Alarm system is activated. • The TM80 notifies the CMS of returning to Monitoring mode. To exit Standby mode: Press to exit Standby mode.

  • Page 15: Ecg

    BeneVision TM80 Quick Reference Guide Select ECG Leadwire The TM80 allows the clinician to set the ECG Leadwire Type being used. To configure the ECG Leadwire Type: • On the main screen, tap the HR digital area or ECG waveform area to enter the ECG menu.

  • Page 16: Enable Pacer

    BeneVision TM80 Quick Reference Guide The Lead Placement window indicates the lead status. Information bar Lead on indicator Lead off indicator When any of the leads are off, the indications are as follows: • The lead off message displays on the information bar.

  • Page 17: Resp

    BeneVision TM80 Quick Reference Guide RESP (OPTIONAL) Set NCM Alarm Delay The TM80 allows configuring the desired time for NCM Alarm Delay. When the patient has stopped breathing for longer than the set NCM Alarm Delay time, the TM80 will trigger the "No Chest Movement" alarm.
  • Page 18 BeneVision TM80 Quick Reference Guide module sensor connector sensor Connecting the Masimo SpO module P/N: 046-017383-00 Rev1.0...

  • Page 19: Initiate The Spo 2 Measurement

    BeneVision TM80 Quick Reference Guide module sensor connector sensor Connecting the Nellcor SpO module Initiate the SpO Measurement 1. Connect the sensor to the SpO module and the SpO module to the TM80. 2. Select an appropriate sensor according to the patient size, and weight.

  • Page 20: Nibp (Optional)

    BeneVision TM80 Quick Reference Guide NIBP (OPTIONAL) The TM80 allows non-invasive blood pressure (NIBP) monitored by a BP10 NIBP module. Pair a TM80 with a BP10 1. Press the MPAN key on the right panel of the BP10. The“Pairing... ”...

  • Page 21: Unpair A Tm80 With A Bp10 Via The Tm80

    BeneVision TM80 Quick Reference Guide Unpair a TM80 with a BP10 via the TM80 Option 1: 1. Press to enter the main menu. 2. Tap Wireles Modules. 3. Select the device you wish to disconnect from the TM80 from the devices list under Devices and tap Disconnect.

  • Page 22: Change Parameter Alarm Properties

    BeneVision TM80 Quick Reference Guide Change Parameter Alarm Properties 1. Enter the Alarm Limits menu in either of the following ways: Select the Alarm Limits quick key. ¡ to enter the main menu → tap Alarms →tap Alarm Limits. Press ¡...

  • Page 23: Review

    BeneVision TM80 Quick Reference Guide 2. Tap the Alarm Reset quick key. After the alarm system is reset, depending upon the system configuration, the alarm system responds as follows: For physiological alarms: • The alarm sound will be silenced. • The symbol appears on the top of the main screen.

  • Page 24: Screen Display

    BeneVision TM80 Quick Reference Guide 1. Press to enter the main menu. 2. Tap Review. 3. Tap Tabular Trends . SCREEN DISPLAY Switch Orientation 1. Swipe your finger down from the top of the main screen to display the following buttons.

  • Page 25: Screen Lock/View Only Mode

    BeneVision TM80 Quick Reference Guide SCREEN LOCK/VIEW ONLY MODE The TM80 provides the ability to lock the touch screen display to restrict user access, options for View Only and Locked are available. View Only allows patient data to be viewed but prevents access to settings without a passcode.

  • Page 26: Adjust Volumes

    BeneVision TM80 Quick Reference Guide 3. Enter the passcode to unlock the screen. Once the passcode is entered the screen is temporarily unlocked. If the clinician turns off the TM80 or the display times out, the passcode will need to be re-entered.

  • Page 27: Clean/Disinfect The Tm80

    BeneVision TM80 Quick Reference Guide CLEAN/DISINFECT THE TM80 Clean the TM80 Clean your equipment on a regular basis. Before cleaning, consult your hospital's regulations for cleaning the equipment. Caution: Never immerse the lithium-ion battery pack, AA battery tray and AA batteries in any fluids.
  • Page 28 BeneVision TM80 Quick Reference Guide The following table lists approved cleaning and disinfecting agents. Product Name Product Type Ingredients Sodium hypochlorite Liquid Sodium hypochlorite bleach 10% bleach* Hydrogen peroxide* Hydrogen peroxide 3% Isopropanol* Isopropanol 70% 1-Propanol* 1-Propanol 50% Metrex CaviCide1™...
  • Page 29 BeneVision TM80 Quick Reference Guide Product Name Product Type Ingredients Alpet® D2 Surface Wipes Isopropyl Alcohol 58.6000%® Sanitizing Wipes Octyl Decyl Dimethyl Ammonium chloride 0.0075%, Dioctyl Dimethyl Ammonium Chloride 0.0030% Clorox Dispatch® Sodium Hypochlorite 0.65% Hospital Cleaner Disinfectant Towels with Bleach Clorox Sodium Hypochlorite 0.55%...

  • Page 30: Disinfect The Tm80

    BeneVision TM80 Quick Reference Guide Product Name Product Type Ingredients PDI Sani-Cloth® Plus Wipes n-Alkyl dimethyl ethylbenzyl Germicidal Disposable ammonium chlorides 0.125%, Cloth n-Alky dimethyl benzyl ammonium chlorides 0.125% PDI Super Sani- n-Alkyl dimethyl ethylbenzyl Cloth®Germicidal ammonium chlorides 0.25%, Disposable Wipe* n-Alkyl dimethyl benzyl ammonium chlorides 0.25%,...

  • Page 31: Clean/Disinfect Reusable Accessories

    BeneVision TM80 Quick Reference Guide CLEAN/DISINFECT REUSABLE ACCESSORIES To clean and disinfect reusable ECG leadwires and SpO sensors, refer to the instructions for use delivered with the accessory. STERILIZATION Sterilization is not recommended for this equipment, related products, accessories or supplies unless otherwise indicated in the instructions for use delivered with the products, accessories or supplies.
  • Page 32 Mindray DS USA, Inc. 800 MacArthur Boulevard, Mahwah, New Jersey 07430 USA Tel: 1.800.288.2121, 1.201.995.8000 www.mindray.com 0 4 6 - 0 1 7 3 8 3 - 0 0 ( 1 . 0 )
