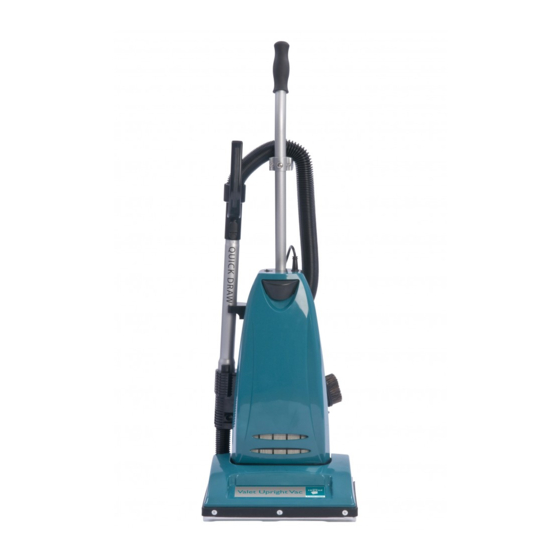

Commercial single motor upright vacuum cleaner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ORIGINAL INSTRUCTIONS
CAUTION – READ THESE INSTRUCTIONS BEFORE USING THE MACHINE
User instructions
Valet Upright Vac – VUV-QD
Commercial single motor upright
vacuum cleaner
03-8218-0000 Issue 3
03/10
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Valet Upright Vac VUV-QD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Truvox Valet Upright Vac VUV-QD

Summary of Contents for Truvox Valet Upright Vac VUV-QD

  • Page 1 ORIGINAL INSTRUCTIONS CAUTION – READ THESE INSTRUCTIONS BEFORE USING THE MACHINE User instructions Valet Upright Vac – VUV-QD Commercial single motor upright vacuum cleaner 03-8218-0000 Issue 3 03/10...
  • Page 2 Parts Identification Packing list Item Quantity Item Quantity Valet Upright Vac Dusting brush Dust bag (in machine) Crevice tool Handle User instructions Vacuum hose Telescopic wand If any of the above items are missing please contact your supplier immediately...

  • Page 3: Table Of Contents

    Contents Product information ........................4 1.1 Important Safety Advice .....................4 1.2 Guidelines for the operator ....................5 1.3 Transporting the machine ....................5 Preparing for use........................5 2.1 Symbols & Markings......................5 2.2 Electrical connection......................5 2.3 How to assemble the vacuum.....................5 2.3.2 Attaching the telescopic wand..................6 Controls ...........................6 Operation..........................6 4.1 How to change the dust bag ....................6...

  • Page 4: Product Information

    If you is damaged in any way. Contact an authorised have any queries please contact the supplier who you purchased the machine from or Truvox service agent for repair or adjustment. • Do not operate switches or touch the mains International on the contact details provided at the back.

  • Page 5: Guidelines For The Operator

    • Take care when using a machine near the top Take extreme care when moving the machine up or down steps or stairs. of stairs to avoid overbalancing. 2. Preparing for use Guidelines for the operator WARNING Operators must be fully trained in the Symbols &...

  • Page 6: Attaching The Telescopic Wand

    To release the handle, step on the pedal at the left rear corner of the vacuum cleaner 1. Middle position – for normal cleaning 2.3.2 Attaching the telescopic wand 2. Upright position – for when cleaning tools are • Push the wand onto the hose attachment. used or for storage.

  • Page 7: Secondary Filter

    Secondary Filter 5. Reinsert the agitator holder. Be sure that the Your Truvox vacuum cleaner is equipped with a agitator holder is in place before fastening the secondary filter and a HEPA filter. These filters lower plate. capture fine dust particles and protect the motor 6.

  • Page 8: Cleaning The Nozzle Hose

    (Fig. 15). Turn the the machine, who will arrange service. Repairs unit over and unscrew and remove the and servicing of Truvox products should only be bottom plate (see "How To Remove Bottom performed by trained staff. Improper repairs can Plate.").

  • Page 9: Guarantee

    Your product is guaranteed for one year from the Truvox parts. date of original purchase, or hire purchase, - Defects in other than genuine Truvox parts, against defects in materials or workmanship or repairs, modifications or adjustments during manufacture. Within the guarantee period...

  • Page 10: Technical Specification

    10. Technical Specification 230 V ~ 50 Hz, Class I construction. Enclosure to IP20. With 15m supply cord and 13A fused plug. Model Valet Upright Vac Valet Upright Vac Ref No VUV-QD VUV-QD/EURO Tank material Voltage a.c. Frequency No. of motors Motor rating 1200 1200...
  • Page 11 Spare Parts List Model Ref.:- VUV-QD SERIES A Spare Parts List Issue 3 Dated 21 October 2011 Ref. Drawing 09-1120-0000 Dated 09th February 2010 Drawing Part Number DESCRIPTION Qty Per Ref. Refer to Drawing 09-1120-0000 Sheet 1 AEA0283582 Dust Compartment AEA1403582 Boot Strain Relief AE2363000...
  • Page 12 Drawing Part Number DESCRIPTION Qty Per Ref. Refer to Drawing 09-1120-0000 Sheet 1 002AE00001 Zip Tie Handle Screw M5*45 AEA1374582 Plastic Frame Washer 4.2*14*1 AEA1563582 Cord Holder Set Screw M4*21 AEAA034858 Quick Draw Wand Assembly U2-U11-091 Quick Draw Attachment Holder AE2403000 Wire Harness AE2133000...

  • Page 15: Declaration Of Conformity

    13. Declaration of Conformity EC Declaration of Conformity We, Truvox International Ltd. Third Avenue, Millbrook, Southampton, Hampshire England SO15 0LE declare that the machinery Make Commercial upright single motor vacuum cleaners Type Valet Upright Vac Model VUV-QD… Serial Number : from 01000...
