THIS USER GUIDE SHOULD ALWAYS BE USED IN CONJUNCTION WITH THE USER MANUAL

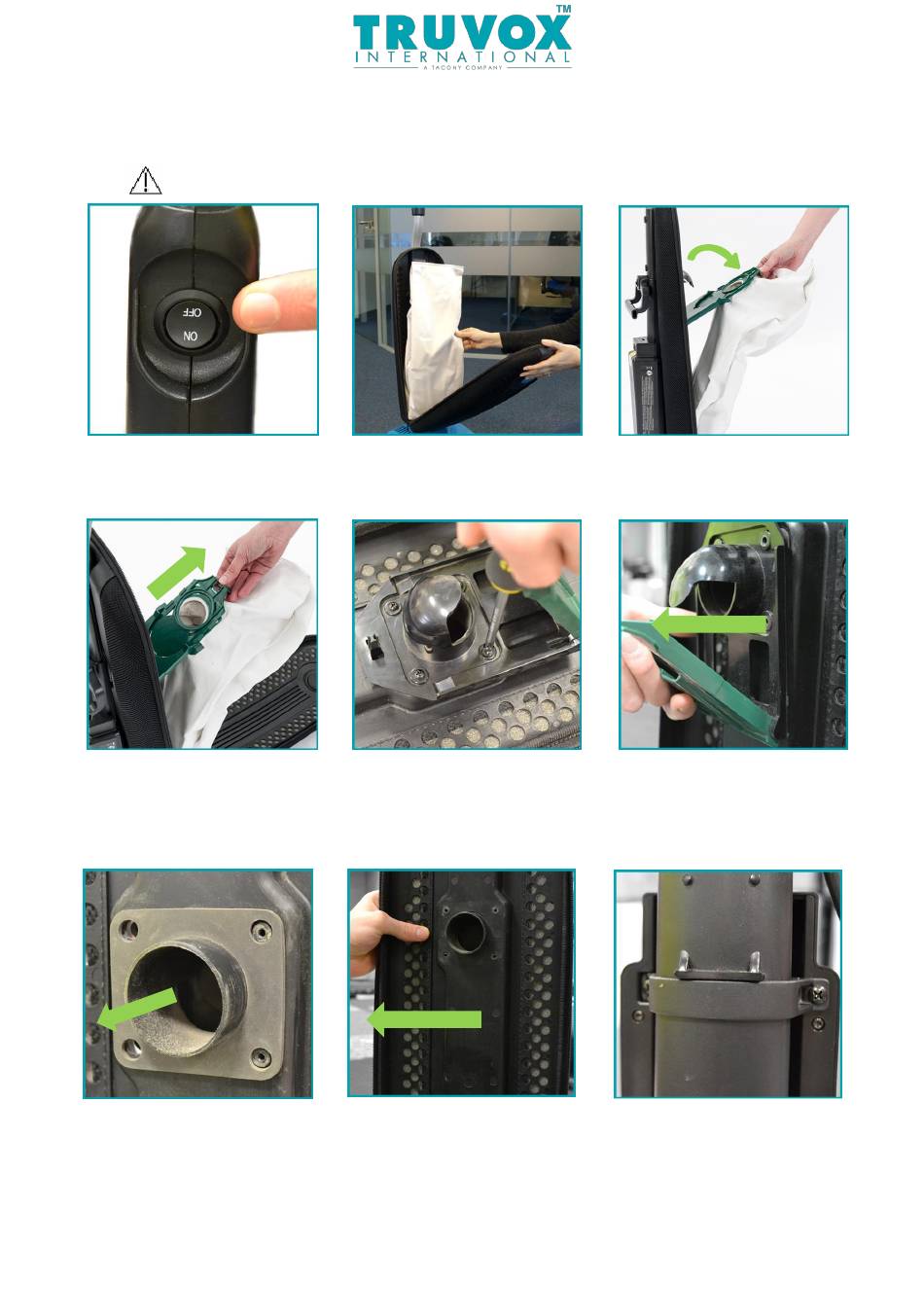

Firstly, ensure that the

machine is switched off.

Slide the bag out of the bag

holder which automatically

seals the bag opening and place

to one side.

Remove the rubber gasket.

UK-UPGRADEVBU-REV.00 (0119)

Upgrade VBU to VBUII User Guide

Latch Kit: 05-4759-000

Unzip and open the bag

compartment.

Lay the machine on the floor and

undo the 4 screws surround the

vacuum bag holder using a cross-

head screwdriver.

Remove the bag compartment.

Remove the used vacuum bag

by pulling the green bag collar

tab away from the vacuum.

Remove the vacuum bag

holder.

Please note that the battery clamp

is currently positioned beneath the

lug on the handle duct.

Need help?

Do you have a question about the VBU and is the answer not in the manual?

Page 1 Upgrade VBU to VBUII User Guide Latch Kit: 05-4759-000 THIS USER GUIDE SHOULD ALWAYS BE USED IN CONJUNCTION WITH THE USER MANUAL Firstly, ensure that the Remove the used vacuum bag Unzip and open the bag by pulling the green bag collar compartment.
Page 2 Unscrew the 2 screws in the Remove the battery and battery Please note that the battery battery clamp. clamp. clamp is not symmetrical.   Please note that the latch is The battery clamp will be Hold the latch against the also not symmetrical.
Page 3 Lay the vacuum on its back and fit Secure the 4 screws Replace the dust bag holder. the bag compartment (1) onto surrounding the vacuum bag the machine then replace the holder. rubber gasket (2) so that the screw holes are aligned. Attach the battery to the Return the machine to an upright machine as shown so that the...
