7 Common operation of the web screens
7 .21 Layout programming – searching for a device
3
1
7 .22 Layout programming – deleting a layout
26
Installation and Operating Instructions CGLine+ Web-Controller 40071860236 (E) February 2019 www.eaton.com
2
1
2

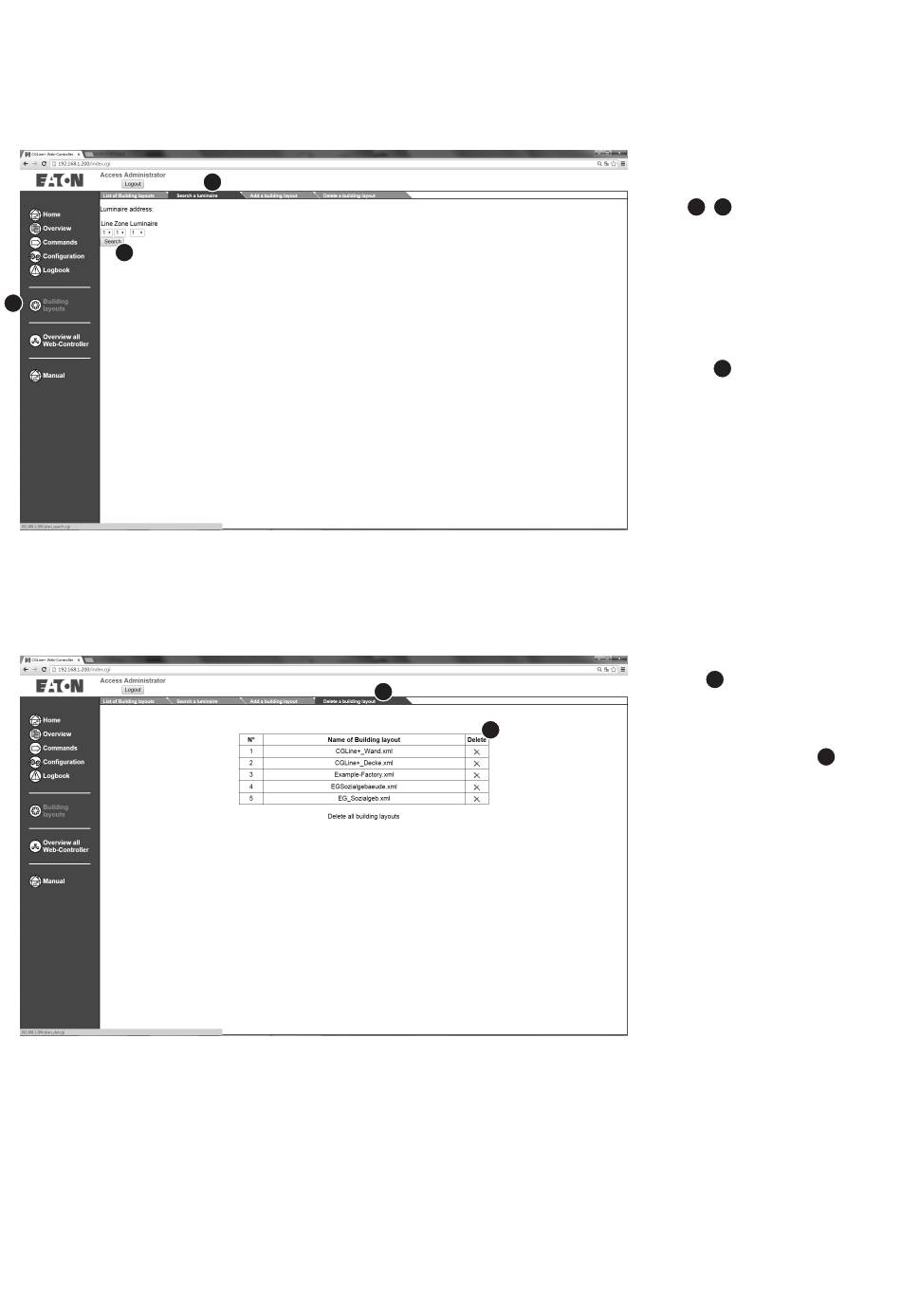

For locating luminaires in
a line and zone in a layout
plan, there is a search func-
tion
1
,
2
. This enables
quickly finding any defective
luminaires in a building.
To find a luminaire in the
layout plan,the line, the
zone and the luminaire to
address can be selected. The
corresponding luminaire in
the layout is highlighted via
"Search"
3
.
In the menu "Delete
layout"
1
any graphics cre-
ated can be deleted again
from the web server.
Selected plans are removed
again via "Delete layout".
2
