Digital Input/Output" Configuration Screen - Eaton CGLine+ Web-Controller Installation And Operating Instructions Manual

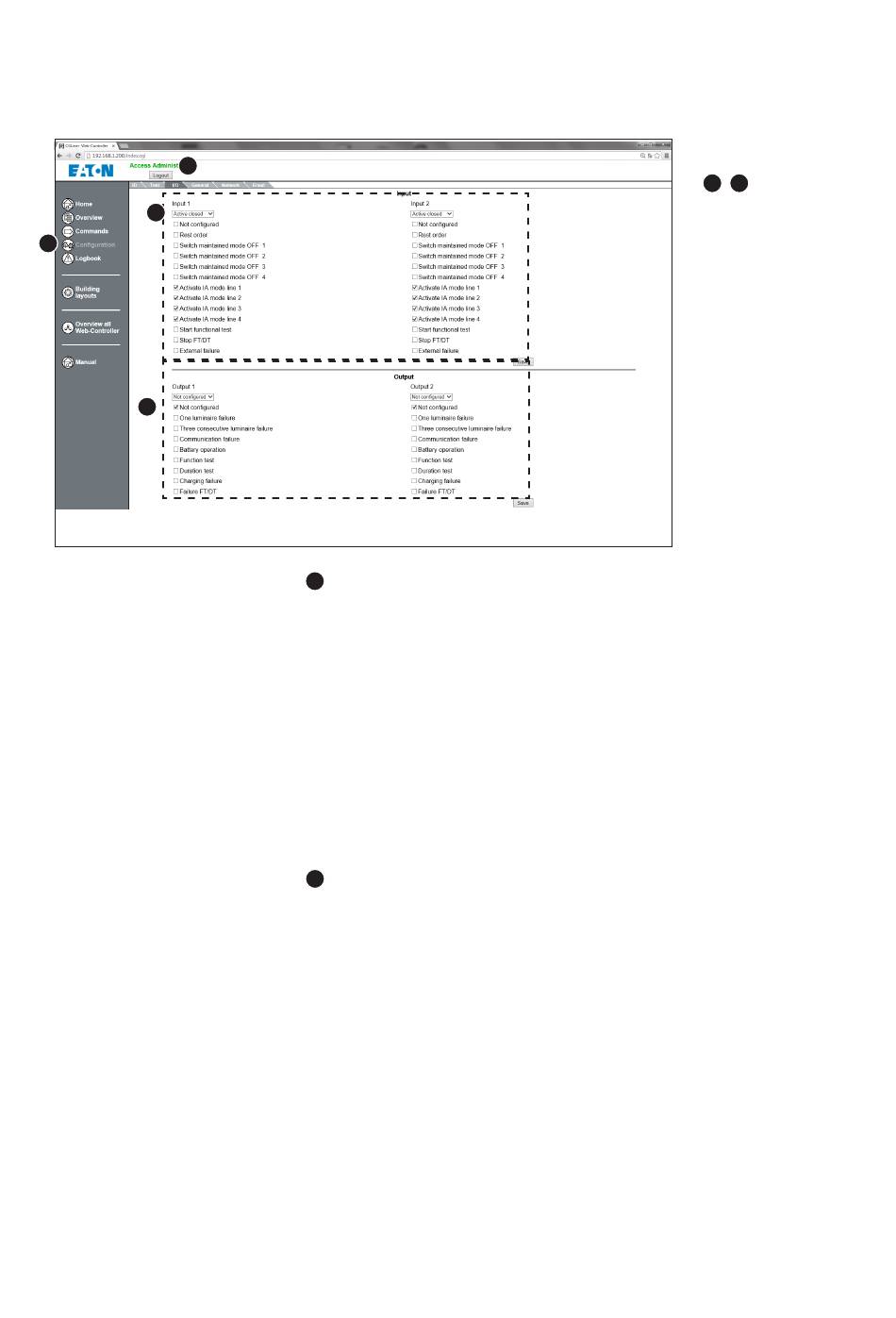

7 . 1 1 „Digital input/output" configuration screen
2
3
1
4
Configuration of the two digital inputs
Not configured: no function
n
Rest order: During a mains failure (luminaires are in emergency mode), the rest mode will
n
switch OFF the luminaires. If mains return, the luminaires will go back in normal mode. To the
next mains failure, the luminaires switch again to emergency mode.
Activate IA mode: Activate the Increase Affordance mode in line 1, 2, 3 and/or 4.
n
Maintained mode OFF per line: Switches off the maintained mode luminaires of the line as
n
long as the input is active
Start function test: With positive pulse, starts the function test with all luminaires
n
Stop FT/DT: Interrupts a duration test or function test with all luminaires
n
External failure
n
Configuration of the two relay outputs
Not configured: no function
n
One luminaire fault: Common fault for at least one luminaire
n
Three consecutive luminaires failure: At least 3 consecutive luminaires in a zone are faulty
n
Communication fault: At least 1 luminaire has a communication fault
n
Battery operation: At least 1 luminaire is in battery mode, e.g. with mains failure
n
Function test: At least 1 luminaire is in a function test
n
Duration test: At least 1 luminaire is in a duration test
n
Charging failure: At least 1 luminaire has a battery or charge fault
n
Test failure: At least 1 luminaire has an FT or DT fault, e.g. nominal operating time not reached
n
Installation and Operating Instructions CGLine+ Web-Controller 40071860236 (E) February 2019 www.eaton.com
3 :
4 :
7 Common operation of the web screens
In the configuration menu
of the two digital inputs
1
assigned specific commands
and the two relays can be
assigned conditions when
the relay's state changes.
, the inputs can be
2
