Napoleon ALLURE VERTICAL Series Manual

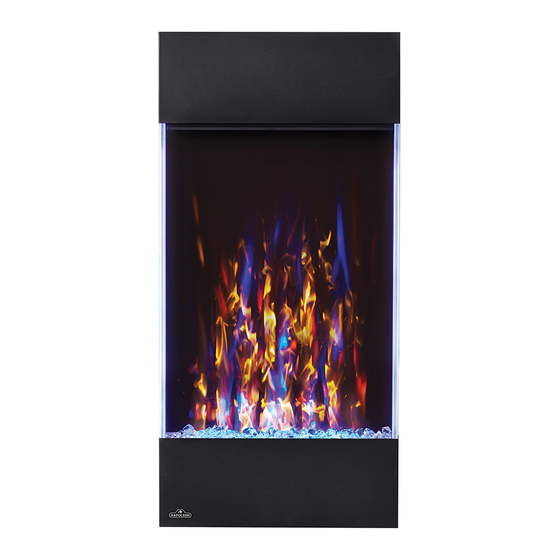

ALLURE™ VERTICAL SERIES - NEFVC38H
Specifications
Model BTU
NEFVC38H 5000
* See "Recessed Installation" section for framing dimensions.

Dimensions

13/16"
(19.60mm)
36 1/2"
(927.40mm)

Minimum Mantel Clearances

WARNING
!
• When using paint or lacquer to finish the mantel, the paint or lacquer must be heat resistant to prevent discolouration.
Product information provided is not complete and is subject to change without notice. Please consult the installation manual for
the most up to date installation information.
Width
Watts
Actual Framing
1500 16
1"
14"
(24.95mm)
(365.50mm)
BACK VIEW
Mantel
0"
2"
(5cm)
Wall
Floor
Side View (Wall Mount)
24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 • 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8
Fireplaces, Heating and Cooling: 705-721-1212 • Grills: 705 726-4278 • napoleonproducts.com
Height
Actual Framing
* 38 *
5 5/8"
(143.50mm)
3"
(76mm)
36 1/2"
(927.40mm)
(15mm)
5/8"
(15mm)
RIGHT SIDE
VIEW
Mantel
0"
2"
(5cm)
Floor
Side View (recessed into a wall)
Depth
Actual Framing
5 5/8 *
6"
(153.20mm)
5/16"
(8.20mm)
26"
(660.20mm)
38"
(965.2mm)
5/8"
151/4" (385mm)
16" (406.40mm)
FRONT VIEW
0"
0"
0"
Viewing Area
26 x 15 1/4
W415-1907 / 09.20.18
