Napoleon ALLURAVISION Series Quick Start Manual

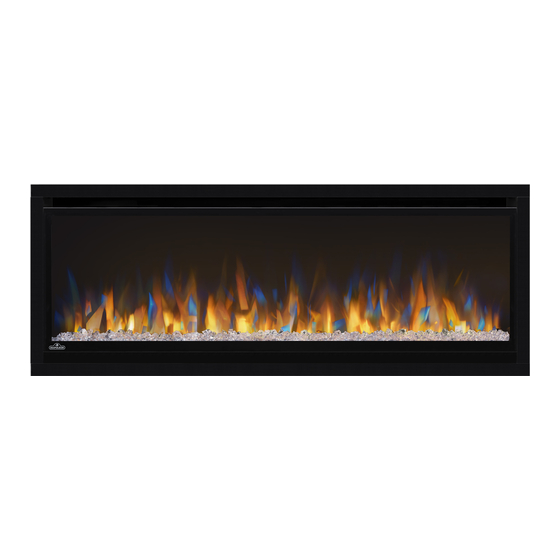

ALLURAVISION™ SERIES ELECTRIC FIREPLACE

Specifications

Model BTU
NEFL32CHD 5000
NEFL42CHD 5000
NEFL50CHD 5000
NEFL60CHD 5000
NEFL74CHD 5000
NEFL100CHD 5000
NEFL32CHS 5000
NEFL42CHS 5000
NEFL50CHS 5000
NEFL60CHS 5000
NEFL74CHS 5000
NEFL100CHS 5000
FRONT VIEW RIGHT SIDE VIEW
A
F
G
VIEWING AREA
Product information provided is not complete and is subject to change without notice. Please consult the installation manual for
the most up to date installation information.
Width
Actual Framing
32 5/8 33 1/8
42 1/16 42 9/16
50 5/16 50 13/16
60 3/16 60 11/16
74 5/16 74 13/16
100 5/16 100 13/16
32 5/8 33 1/8
42 1/16 42 9/16
50 5/16 50 13/16
FRONT VIEW
FRONT VIEW
60 3/16 60 11/16
74 5/16 74 13/16
100 5/16 100 13/16
A
F
VIEWING AREA
VIEWING AREA
C
CORD LOCATION
CORD LOCATION
D
B
Model No. A
NEFL32CHS 35"
NOTE: MODEL SHOWN IS NEFL32CHS
(88.8cm)
NEFL42CHS 44 7/16"
(112.8cm)
52 11/16"
NEFL50CHS
(133.8cm)
NEFL60CHS 62 9/16"
(158.8cm)
NEFL74CHS 76 3/4"
(194.8cm)
102 11/16"
NEFL100CHS
(260.8cm)
NEFL32CHD 35"
(88.8cm)
NEFL42CHD 44 7/16"
(112.8cm)
52 11/16"
NEFL50CHD
(133.8cm)
NEFL60CHD 62 9/16"
(158.8cm)
NEFL74CHD 76 3/4"
(194.8cm)
102 11/16"
NEFL100CHD
(260.8cm)
24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 • 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8
Fireplaces, Heating and Cooling: 705-721-1212 • Grills: 705 726-4278 • napoleonproducts.com
Height
Actual Framing
15 7/8 16 1/8
15 7/8 16 1/8
15 7/8 16 1/8
15 7/8 16 1/8
15 7/8 16 1/8
15 7/8 16 1/8
15 7/8 16 1/8
15 7/8 16 1/8
15 7/8 16 1/8
RIGHT SIDE VIEW
RIGHT SIDE VIEW
15 7/8 16 1/8
15 7/8 16 1/8
15 7/8 16 1/8
A
TOP VIEW
F
G B
G B
E
NOTE: MODEL SHOWN IS NEFL32CHS
NOTE: MODEL SHOWN IS NEFL32CHS
H
CORD LOCATION
Dimensions
B C D E
17 5/16" 4 1/4" 15 7/8" 32 5/8"
(44cm) (10.8cm) (40.2cm) (82.8cm)
17 5/16" 4 1/4" 15 7/8" 42 1/16"
(44cm) (10.8cm) (40.2cm) (106.8cm)
17 5/16" 4 1/4" 15 7/8" 50 5/16"
(44cm) (10.8cm) (40.2cm) (127.8cm)
17 5/16" 4 1/4" 15 7/8" 60 3/16"
(44cm) (10.8cm) (40.2cm) (152.8cm)
17 5/16" 4 1/4" 15 7/8" 74 5/16"
(44cm) (10.8cm) (40.2cm) (188.8cm)
17 5/16" 4 1/4" 15 7/8" 100 5/16"
(44cm) (10.8cm) (40.2cm) (254.8cm)
17 5/16" 5 13/16" 15 7/8" 32 5/8"
(44cm) (14.8cm) (40.2cm) (82.8cm)
17 5/16" 5 13/16" 15 7/8" 42 1/16"
(44cm) (14.8cm) (40.2cm) (106.8cm)
17 5/16" 5 13/16" 15 7/8" 50 5/16"
(44cm) (14.8cm) (40.2cm) (127.8cm)
17 5/16" 5 13/16" 15 7/8" 60 3/16"
(44cm) (14.8cm) (40.2cm) (152.8cm)
17 5/16" 5 13/16" 15 7/8" 74 5/16"
(44cm) (14.8cm) (40.2cm) (188.8cm)
17 5/16" 5 13/16" 15 7/8" 100 5/16"
(44cm) (14.8cm) (40.2cm) (254.8cm)
Depth
Actual Framing
5 13/16 6 1/16 30 13/16 x 11 1/16
5 13/16 6 1/16
5 13/16 6 1/16
5 13/16 6 1/16
5 13/16 6 1/16
5 13/16 6 1/16
4 1/4 4 1/2 30 13/16 x 11 1/16
4 1/4 4 1/2
4 1/4 4 1/2
TOP VIEW
TOP VIEW
4 1/4 4 1/2
4 1/4 4 1/2
4 1/4 4 1/2
C
C
D
D
F G H
30 13/16" 11 1/16" 3/4"
(78.2cm) (28.1cm) (1.8cm)
40 1/4" 11 1/16" 3/4"
(102.2cm) (28.1cm) (1.8cm)
48 1/2" 11 1/16" 3/4"
(123.2cm) (28.1cm) (1.8cm)
58 5/16" 11 1/16" 3/4"
(148.2cm) (28.1cm) (1.8cm)
72 1/2" 11 1/16" 3/4"
(184.2cm) (28.1cm) (1.8cm)
98 1/2" 11 1/16" 3/4"
(250.2cm) (28.1cm) (1.8cm)
30 13/16" 11 1/16" 3/4"
(78.2cm) (28.1cm) (1.8cm)
40 1/4" 11 1/16" 3/4"
(102.2cm) (28.1cm) (1.8cm)
48 1/2" 11 1/16" 3/4"
(123.2cm) (28.1cm) (1.8cm)
58 5/16" 11 1/16" 3/4"
(148.2cm) (28.1cm) (1.8cm)
72 1/2" 11 1/16" 3/4"
(184.2cm) (28.1cm) (1.8cm)
98 1/2" 11 1/16" 3/4"
(250.2cm) (28.1cm) (1.8cm)
Viewing Area
40 1/4 x 11 1/16
48 1/2 x 11 1/16
58 5/16 x 11 1/16
72 1/2 x 11 1/16
98 1/2 x 11 1/16
40 1/4 x 11 1/16
48 1/2 x 11 1/16
58 5/16 x 11 1/16
72 1/2 x 11 1/16
98 1/2 x 11 1/16
E
E
H
H
CORD LOCATION
CORD LOCATION
DATE 03/2018
