- Page 1 CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide Doc. No. 002-12543 Rev. *A Cypress Semiconductor 198 Champion Court San Jose, CA 95134-1709 www.cypress.com...
- Page 2 A critical component is any component of a device or system whose failure to perform can be reasonably expected to cause the failure of the device or system, or to affect its safety or effectiveness. Cypress is not liable, in whole or in part, and you shall and hereby do release Cypress from any claim, damage, or other liability arising from or related to all Unintended Uses of Cypress products.
-
Page 3: Table Of Contents
Solar BLE Sensor ..............................14 Enclosure ..................................16 Solar BLE Sensor Enclosure ..........................16 How to Install the Board in the Enclosure ......................17 Revision History ................................... 19 CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide, Doc. No. 002-12543 Rev. *A... -
Page 4: Safety Information
Regulatory Compliance The CYALKIT-E03 Solar-Powered Bluetooth Low Energy (BLE) Sensor Beacon 5 Pack is intended for use as a development platform for hardware or software in a laboratory environment. The board is an open system design, which does not include a shielded enclosure. -
Page 5: General Safety Instructions
Handling Boards CYALKIT-E03 boards are sensitive to ESD. Hold the board only by its edges. After removing the board from its box, place it on a grounded, static-free surface. Use a conductive foam pad, if available. Do not slide the board over any surface. -
Page 6: Introduction
The sensor data is transmitted to a BLE device and sent to the cloud for analysis. This kit guide explains how to set up and use the CYALKIT-E03. Be sure to read it before using the product. For questions, please consult with sales or support representatives. -
Page 7: Block Diagrams
Android 4.4 or newer 1.3 Features The CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack provides everything needed to develop a light-powered sensor node that transmits sensor data using Bluetooth Low Energy (BLE): Tiny solar-powered BLE sensor board (circle with 24-mm diameter, same size as 25-cent coin) ... - Page 8 Test pads for power, ground, primary battery input, and SWD interface for programming Uses the following Cypress devices: □ S6AE103A ultra-low-power energy harvesting PMIC □ CYBLE-022001-00 EZ-BLE PRoC module CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide, Doc. No. 002-12543 Rev. *A...
-
Page 9: Getting Started
Each Solar BLE Sensors are numbered with the IDs (#2 to #6) on the bottom side of the enclosure from the factory. Refer to CYALKIT-E02 Kit Guide for information on how to change the ID. CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide, Doc. No. 002-12543 Rev. *A... -
Page 10: Wsn Operation With A Mobile Device
In this section, you will confirm that the Solar BLE Sensors are operating as a WSN by using the apps on your mobile device to detect temperature and humidity changes. 2.2.1 Mobile Apps Installation The Cypress BLE-Beacon app is available on Google Play and in the Apple Store for free. To install the app, follow these instructions. 2.2.1.1 Installing the Android App Open Google Play and search for “Cypress BLE-Beacon”. - Page 11 Enclosure Select the Cypress BLE-Beacon (BLE-Beacon) app. On the subsequent screen, click the Install button to proceed with installation. When presented with the app permission dialog, click Accept to continue. When the installation is complete, the BLE-Beacon app can be launched from the App Drawer.
- Page 12 2.2.1.2 Installing the iOS App Open App Store and search for “Cypress BLE-Beacon.” Select the Cypress BLE-Beacon (BLE-Beacon) app, and proceed to install the app on your iOS device. Place the Solar BLE Sensor under an office light. Refer to step 3 of 2.1.1 Establishing BLE...
- Page 13 While Using the App (iOS: Home screen > Settings > BLE-Beacon > Location). Refer to Cypress BLE-Beacon iOS App User Guide for detailed information. CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide, Doc. No. 002-12543 Rev. *A...
-
Page 14: Hardware
Note that the Solar BLE Sensor is not printed on the silk screen of all components due to tiny size. To identify the components, refer to the assembly drawing shown in Figure 3-2. CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide, Doc. No. 002-12543 Rev. *A... - Page 15 Enclosure Figure 3-2. Solar BLE Sensor Assembly Drawing Refer to CYALKIT-E02 Kit Guide for detailed information on each block. CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide, Doc. No. 002-12543 Rev. *A...
-
Page 16: Enclosure

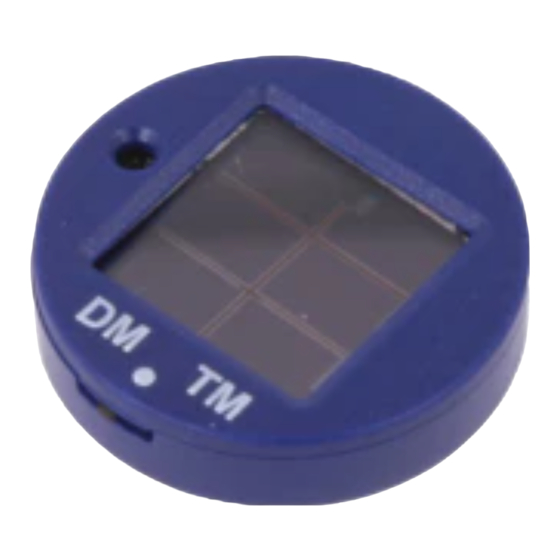

The kit includes an enclosure for the Solar BLE Sensor, shown in the following image. It contains three parts: a top cover, a bottom cover, and the transparent sheet for solar cell. Top Cover Transparent sheet Solar BLE Sensor Bottom Cover CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide, Doc. No. 002-12543 Rev. *A... -
Page 17: How To Install The Board In The Enclosure
Adjust the position of the circle mark on the top cover and SW1 on the Solar BLE Sensor. Install the top cover on the bottom cover. CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide, Doc. No. 002-12543 Rev. *A... - Page 18 Enclosure CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide, Doc. No. 002-12543 Rev. *A...
-
Page 19: Revision History
Document Title: CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide Document Number: 002-12543 Revision Issue Date Origin of Change Description of Change 04/28/2016 EIFU Initial release 04/07/2017 EIFU Updated template CYALKIT-E03 Solar-Powered BLE Sensor Beacon 5 Pack Kit Guide, Doc. No. 002-12543 Rev. *A...
