Please read all instructions carefully before installing the hirise adaptor kit.

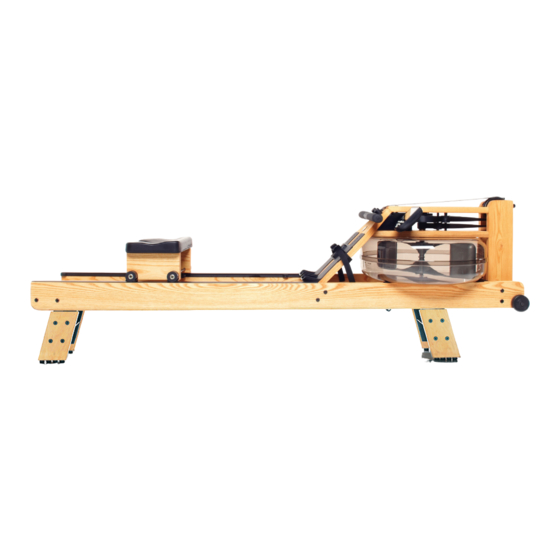

The WaterRower HiRise Adapter has been designed to raise the WaterRower 8" (200mm) in

order to provide;

•

Ease of entry

•

Higher positioning when in use

Package contents:

• B600L: HiRise Adaptor Down Brackets Left (x2)*

• B600R: HiRise Adaptor Down Brackets Right (x2)*

• W100: Wooden Legs Front (x4)*

• B600C: Cross Brackets (x2)

• B110: Screws (x16)

• B712: JCB bolt (x16)*

• B700: JCN nut (x16)*

*These parts come assembled, please disassemble

before you begin to install the HiRise Kit.

HIRISE ADAPTOR KIT - S4, DUAL R AIL MODELS

Tools Needed:

• 5mm Allen Key (x2)

• Philips Head Screwdriver

• Power Drill

Page 1 HIRISE ADAPTOR KIT - S4, DUAL R AIL MODELS Please read all instructions carefully before installing the hirise adaptor kit. The WaterRower HiRise Adapter has been designed to raise the WaterRower 8” (200mm) in order to provide; • Ease of entry •...
Page 2 Stand the WaterRower upright. Using a Phillip’s head screwdriver, remove all 16 Rail Bumpers and Rail Bumper screws from underneath the rails.
Page 3 Attach the Down Brackets (x4) with the provided screws (B110) - 4 screws on each bracket. These go into the holes left when the screws and Rail Bumpers were removed. You may need to pre drill the 4 holes to make inserting the provided screws easier. Be sure the angle of each bracket is oriented away...
Page 4 Once everything is in place, go back and tighten all of the bolts from Step 4. Please visit www.waterrowerservice.com for further WaterRower service instructions. If you have any questions about the installation of your HiRise adaptor, please contact your nearest WaterRower office for assistance: www.waterrowerservice.com/contact-us...
