Connection Cables El654, El655 - Assa Abloy ABLOY EL654 Manual

When the loop connector is connected, the lock is set to group 2.
Note! When EL654/ EL655 is set alone (without auxiliary lock) in group 2, the blue wire in the loop connector must be cut.
CONNECTION BETWEEN EL654/EL655 AND AUXILIARY LOCK CASE
It is possible to connect EL654/EL655 together with lock cases ABLOY EL480, EL482, EL402 and EL490.
The wiring must be implemented by using ABLOY connection cables EA235 or EA236 depending on the lock type
(see page 9).
The auxiliary lock case is activated by using the configuration connector loop connector as follows:
- Connect the loop connector to the EL654/EL655 cable (3-pin AMP connector).
- Turn the power off from EL654/EL655.
Note! The power must be turned off everytime you activate a new EL654/EL655 lock case.
Connect loop connector
when installing lock to
group 2.

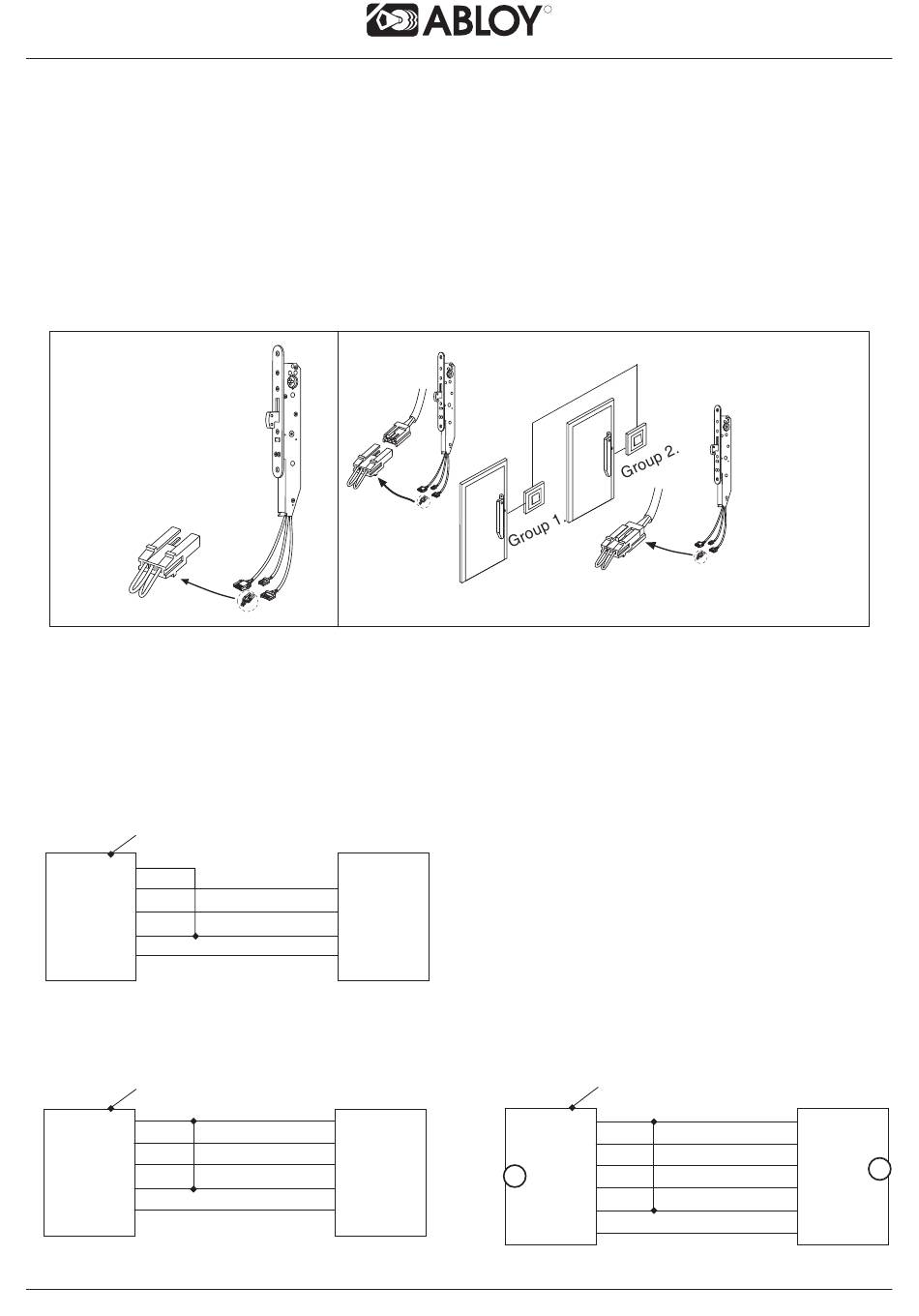

CONNECTION CABLES EL654, EL655

CABLE EA236 -EL654, EL655 <=> EL402, EL480, EL482
CABLE EA235 -EL654, EL655 <=> EL490
Connections between EL654 / EL655 and EL402 / EL480 / EL482
EL654, EL655
Red connector
WHITE
GREEN
BLUE
BLACK
RED
Connections between EL654 / EL655 and EL490
EL654, EL655
Red connectort
WHITE
GREEN
BLUE
BLACK
RED
EL402, EL480, EL482
EA236
GREEN
YELLOW
BLACK
RED
EL490
EA235
WHITE
GREEN
YELLOW
BLACK
RED
R
Grouping in a CAN network.
Connections between EL654 / EL655 and old motor
lock case 8329
EL654, EL655
Red connector
WHITE
GREEN
YELLOW
!
BLUE
BLACK
RED
8329
EA204
BLACK
GREEN
BLUE
YELLOW
WHITE
RED
!
9
