Locking Device Properties: Configuration/Data: Smartrelay (G2) - Simons Voss Technologies SmartRelay SREL Series Manual

SREL1+2 (Manual)

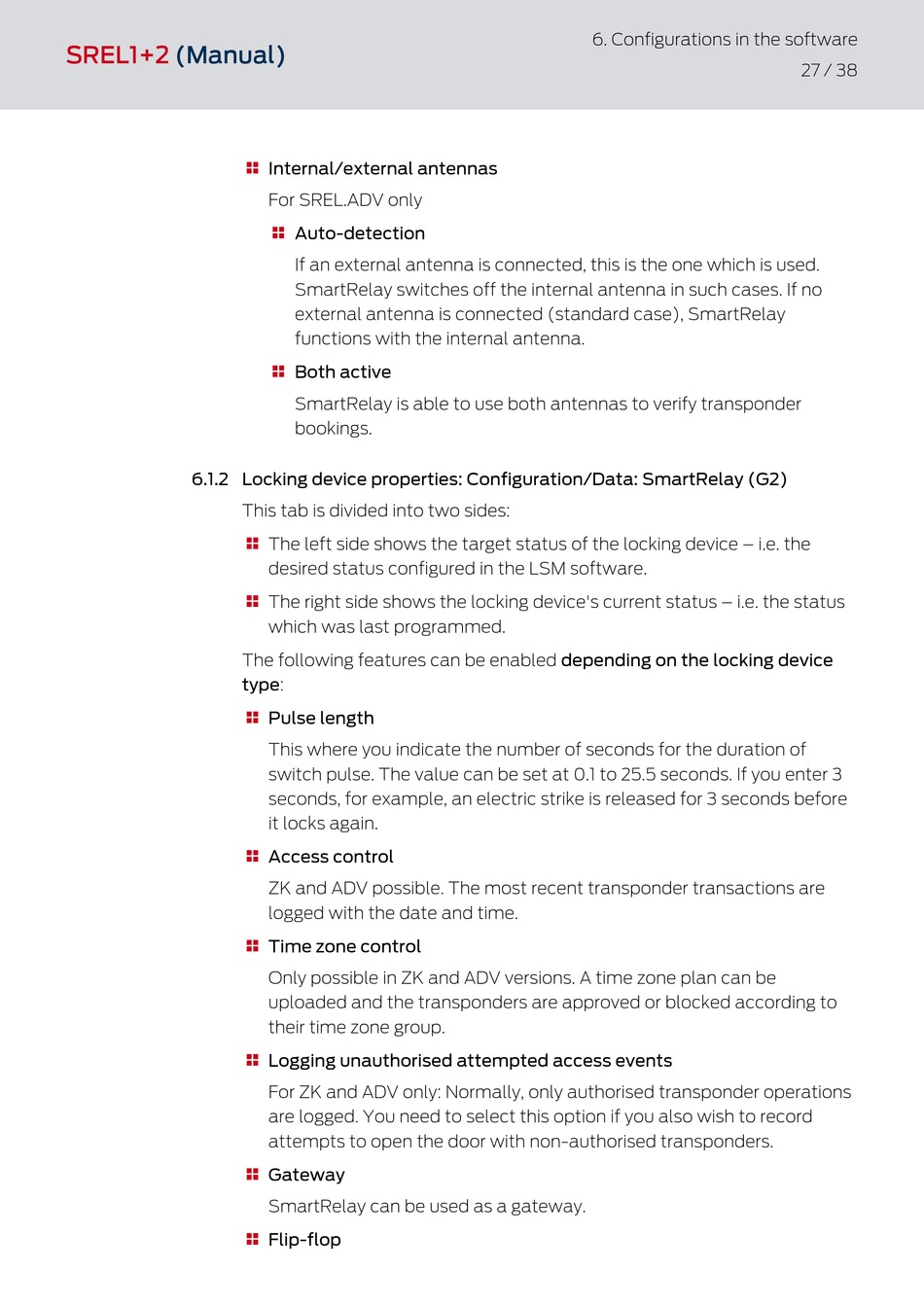

6.1.2 Locking device properties: Configuration/Data: SmartRelay (G2)

Internal/external antennas

For SREL.ADV only
Auto-detection

If an external antenna is connected, this is the one which is used.
SmartRelay switches off the internal antenna in such cases. If no
external antenna is connected (standard case), SmartRelay
functions with the internal antenna.
Both active

SmartRelay is able to use both antennas to verify transponder
bookings.
This tab is divided into two sides:
The left side shows the target status of the locking device – i.e. the

desired status configured in the LSM software.
The right side shows the locking device's current status – i.e. the status

which was last programmed.
The following features can be enabled depending on the locking device
type:
Pulse length

This where you indicate the number of seconds for the duration of
switch pulse. The value can be set at 0.1 to 25.5 seconds. If you enter 3
seconds, for example, an electric strike is released for 3 seconds before
it locks again.
Access control

ZK and ADV possible. The most recent transponder transactions are
logged with the date and time.
Time zone control

Only possible in ZK and ADV versions. A time zone plan can be
uploaded and the transponders are approved or blocked according to
their time zone group.
Logging unauthorised attempted access events

For ZK and ADV only: Normally, only authorised transponder operations
are logged. You need to select this option if you also wish to record
attempts to open the door with non-authorised transponders.
Gateway

SmartRelay can be used as a gateway.
Flip-flop

6. Configurations in the software
27 / 38
