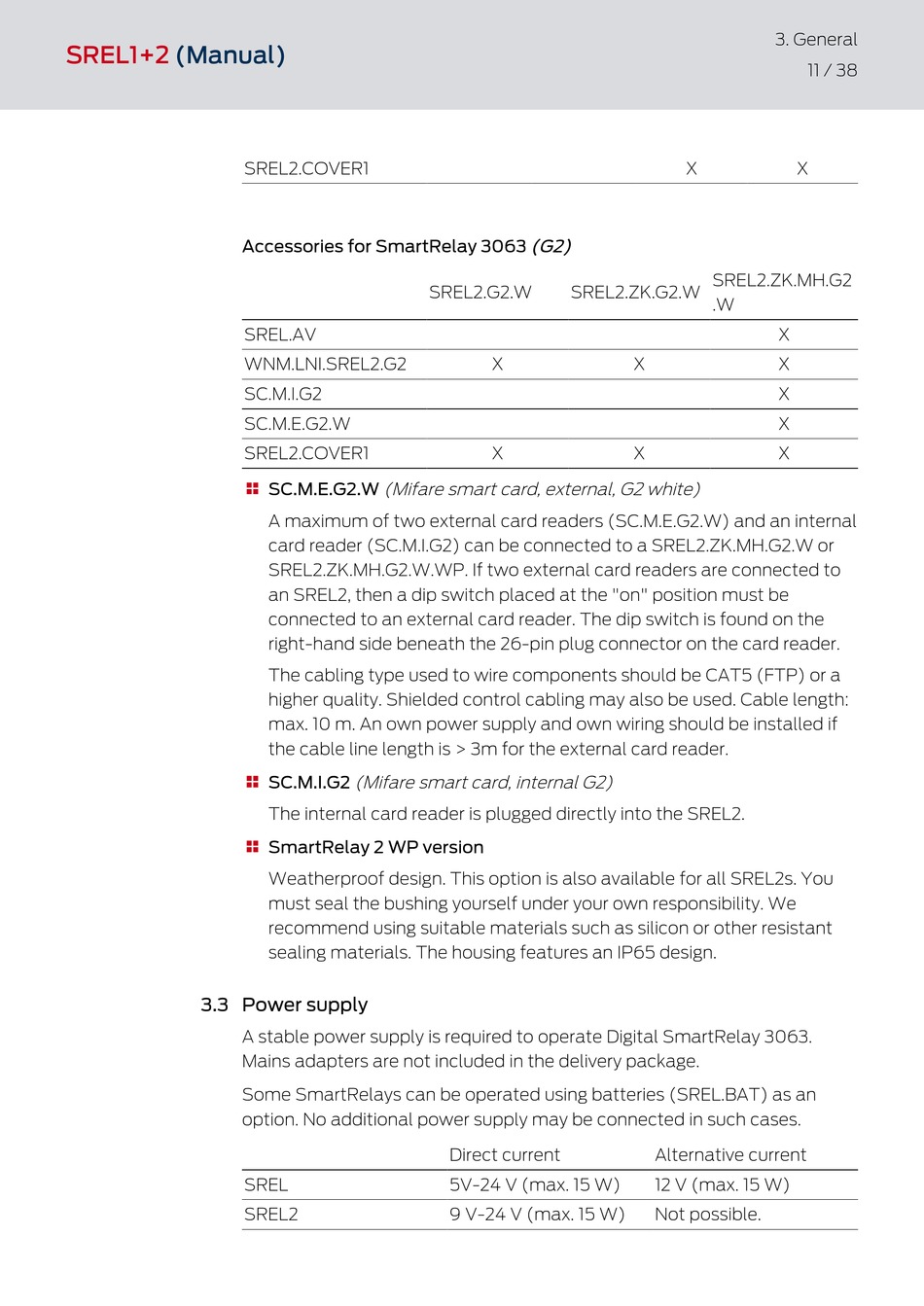

3.3 Power supply

SREL2.COVER1
Accessories for SmartRelay 3063 (G2)
SREL.AV
WNM.LNI.SREL2.G2
SC.M.I.G2
SC.M.E.G2.W
SREL2.COVER1
SC.M.E.G2.W (Mifare smart card, external, G2 white)

A maximum of two external card readers (SC.M.E.G2.W) and an internal
card reader (SC.M.I.G2) can be connected to a SREL2.ZK.MH.G2.W or
SREL2.ZK.MH.G2.W.WP. If two external card readers are connected to
an SREL2, then a dip switch placed at the "on" position must be
connected to an external card reader. The dip switch is found on the
right-hand side beneath the 26-pin plug connector on the card reader.
The cabling type used to wire components should be CAT5 (FTP) or a
higher quality. Shielded control cabling may also be used. Cable length:
max. 10 m. An own power supply and own wiring should be installed if
the cable line length is > 3m for the external card reader.
SC.M.I.G2 (Mifare smart card, internal G2)

The internal card reader is plugged directly into the SREL2.
SmartRelay 2 WP version

Weatherproof design. This option is also available for all SREL2s. You
must seal the bushing yourself under your own responsibility. We
recommend using suitable materials such as silicon or other resistant
sealing materials. The housing features an IP65 design.
A stable power supply is required to operate Digital SmartRelay 3063.
Mains adapters are not included in the delivery package.
Some SmartRelays can be operated using batteries (SREL.BAT) as an
option. No additional power supply may be connected in such cases.
SREL
SREL2
SREL2.G2.W SREL2.ZK.G2.W
X
X
Direct current
5V-24 V (max. 15 W)
9 V-24 V (max. 15 W)
3. General
11 / 38
X X
SREL2.ZK.MH.G2
.W
X
X X
X
X
X X
Alternative current
12 V (max. 15 W)
Not possible.
