Portbase User Guide
2. Product Description

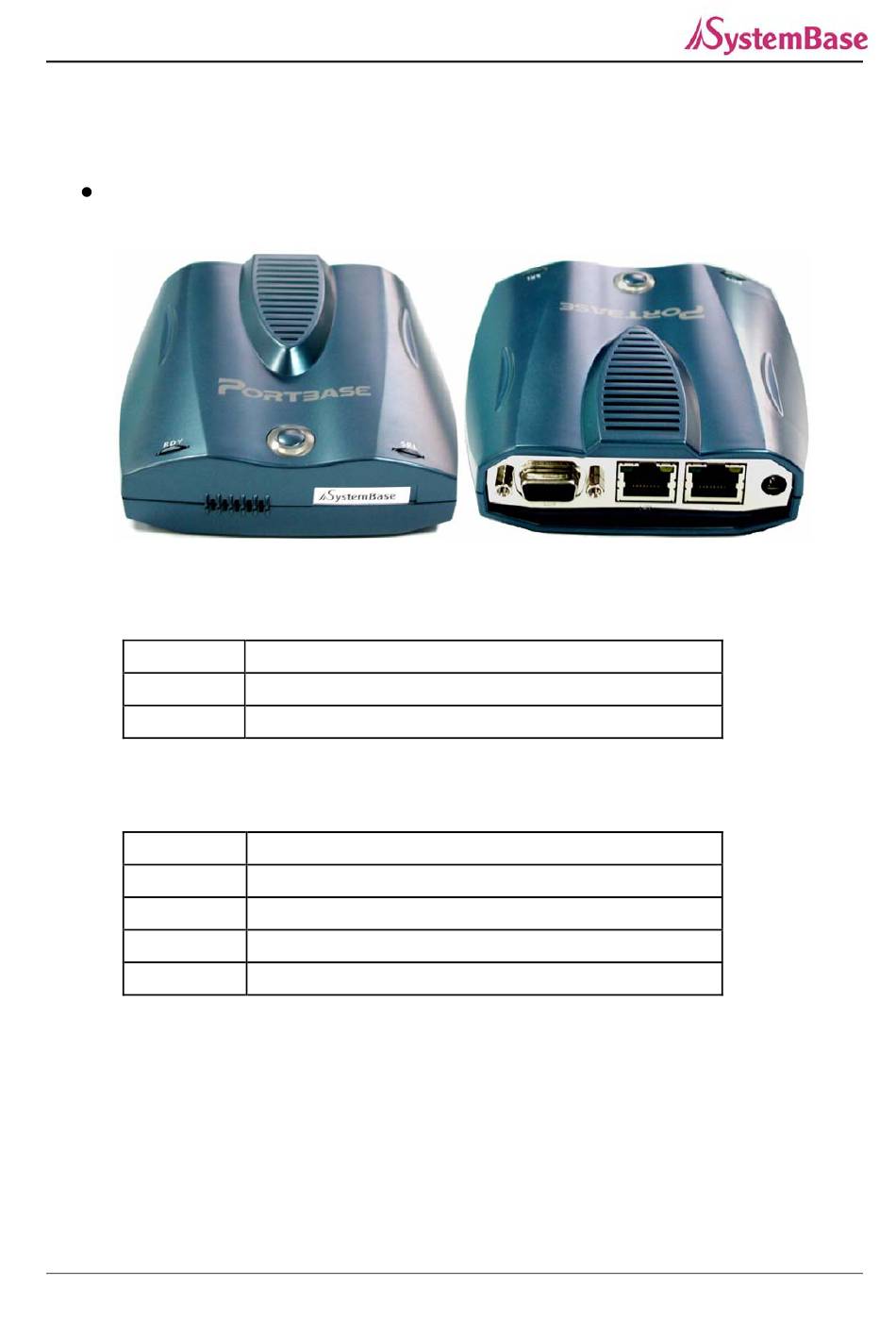

3010 Models
Front
PWR
RDY
SRL
Rear
PWR
LAN
WAN
Reset
COM
Red light when power is on
Green light when firmware is ready (blinks with errors)
Green light blinks when serial data is transmitted
Socket for DC 5V power supply.
10/100 Mbps Ethernet RJ-45 (Secondary LAN Port)
10/100 Mbps Ethernet RJ-45 (Primary LAN Port)
Hardware reset button (at the bottom of the device)
DB-9 (Female) serial port for RS232/422/485
