Portbase User Guide

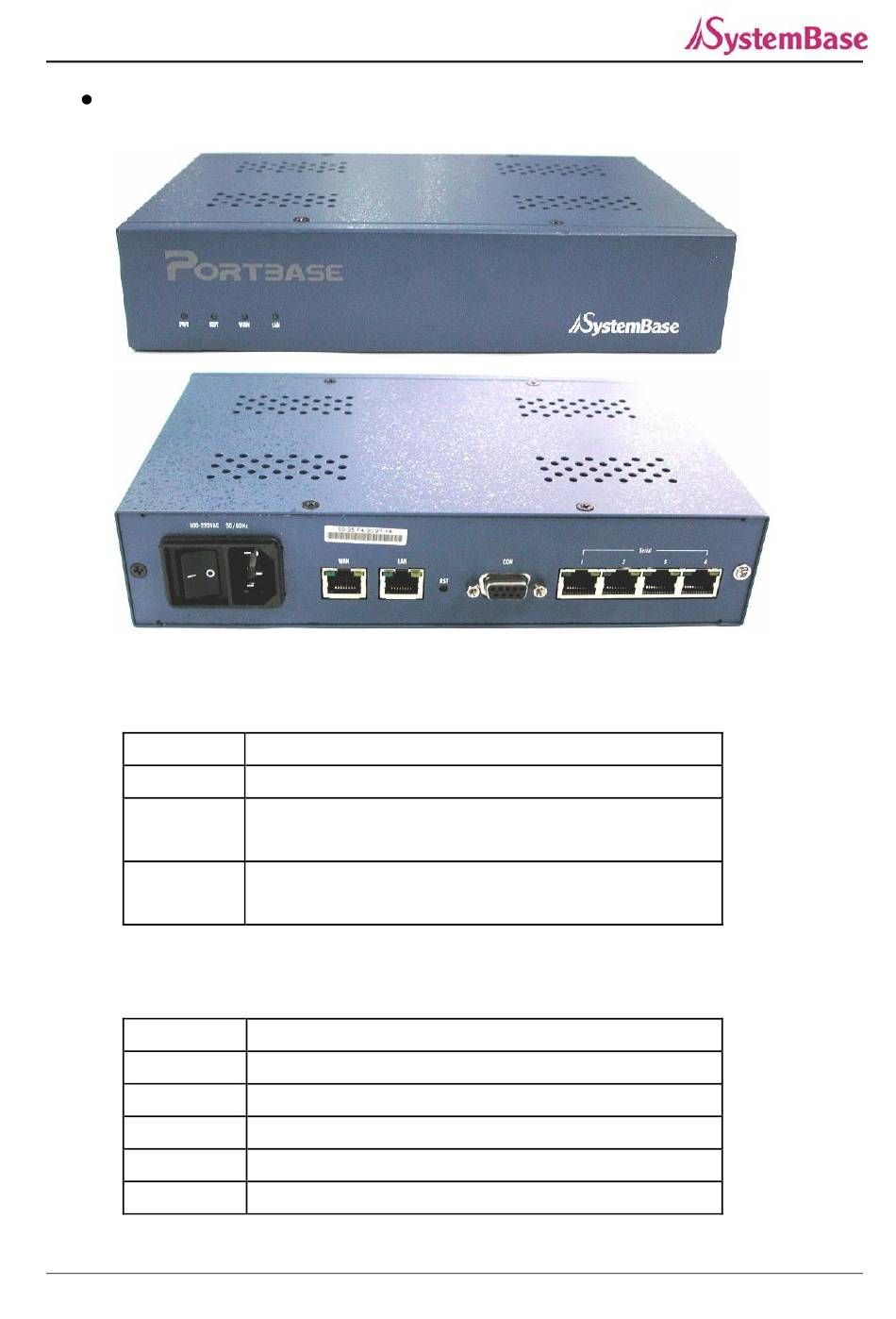

3040 Models
Front
PWR
RDY
WAN
LAN
Rear
PWR
WAN
LAN
Reset
COM
Serial
Red light when power is on
Green light when firmware is ready (blinks with errors)
Green light when 10/100Mbps network connection is
detected.
Green light when 10/100Mbps network connection is
detected.
Socket for 100-220V AC, 50-60Hz power supply
10/100 Mbps Ethernet RJ-45 (Primary LAN Port)
10/100 Mbps Ethernet RJ-45 (Secondary LAN Port)
Hardware reset button
Console serial port for environment setting
RJ-45 socket for serial ports (RS232/422/485)
