Portbase User Guide

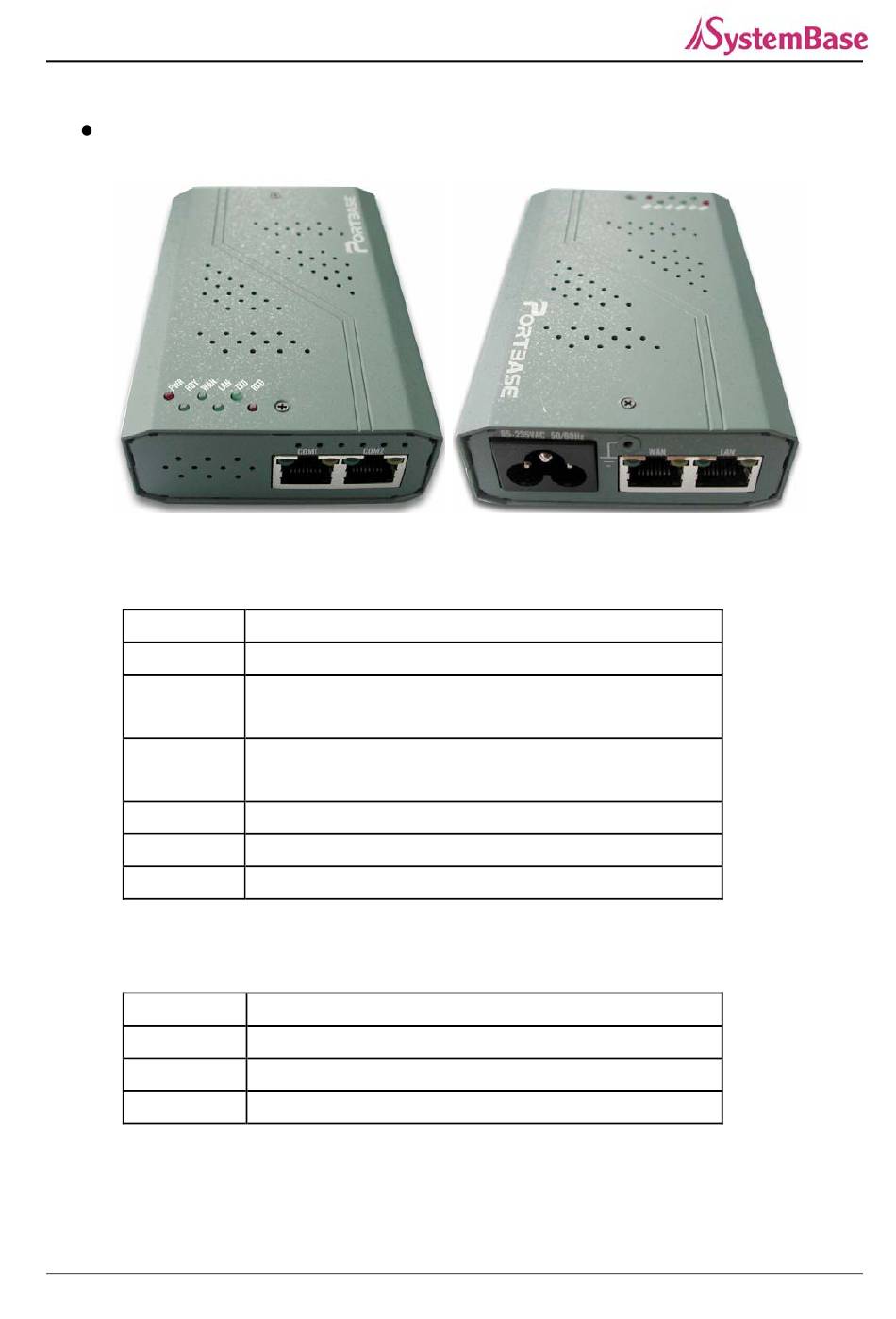

3020F Models
Front
PWR
RDY
WAN
LAN
RxD
TxD
COM 1,2
Rear
PWR
LAN
WAN
Reset
Red light when power is on
Green light when firmware is ready (blinks with errors)
Green light when 10/100Mbps network connection is
detected.
Green light when 10/100Mbps network connection is
detected.
Red light blinking when serial data is received.
Green light blinking when serial data is transmitted.
RJ-45 serial port for RS232/422/485
Socket for DC 5V power supply
10/100 Mbps Ethernet RJ-45 (Secondary LAN Port)
10/100 Mbps Ethernet RJ-45 (Primary LAN Port)
Hardware reset button (at the bottom of the device)
11
