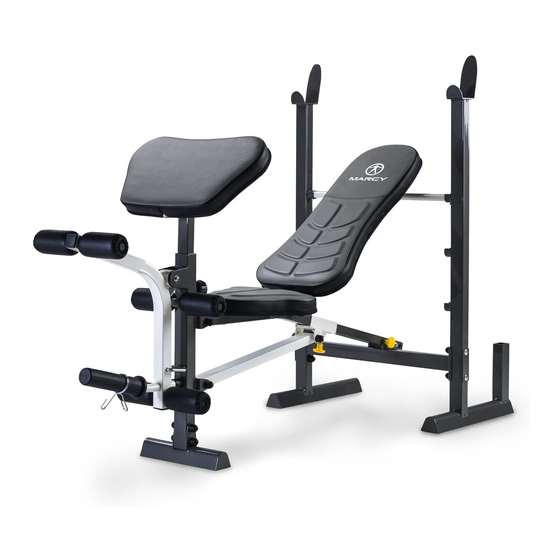

- Page 1 NOTE: Please read all instructions carefully before using this product FOLDABLE BENCH Table of Contents MWB-20100 Safety Notice Important Assembly Information Care and Maintenance Parts List Warranty Ordering Parts Model MWB-20100 Retain This Manual for Reference 170301 OWNER'S MANUAL...
-
Page 2: Table Of Contents
WARRANTY....................…………… 12 ORDERING PARTS..................…………. BEFORE YOU BEGIN Thank you for selecting the MARCY MWB-20100 FOLDABLE BENCH. For your safety and benefit, read this manual carefully before using the machine. As the official representative for Marcy, we are committed to providing complete customer satisfaction. -
Page 3: Important Safety Notices
IMPORTANT SAFETY NOTICE This exercise equipment is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your equipment. In particular, note the following safety precautions: 1. -
Page 4: Exercise Guidelines
EXERCISE GUIDELINES Building Muscle and Gaining Weight Unlike aerobic exercise, which emphasizes endurance training, anaerobic exercise focuses on strength training. A gradual weight gain can occur while building the size and strength of muscles. While developing muscle mass, your body adapts to the stress placed upon it. You can modify your diet to include foods such as meat, fish and vegetables. - Page 5 Beginning a Strength Building Program Warming Up To begin strength training, it is important to stretch and perform light exercise for 5 to 10 minutes. This helps prepare the body for more strenuous exercise by increasing circulation, raising your body temperature and developing more oxygen to your muscles.
-
Page 6: Warning Label Placement
WARNING LABEL PLACEMENT... -
Page 7: Important Assembly Information, Care And Maintanence
IMPORTANT ASSEMBLY INFORMATION Tools Required for Assembling the Bench: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended that this equipment is assembled by two or more people to avoid possible injury. Ensure Carriage Bolts are inserted through the SQUARE holes on components that need to be assembled. -
Page 8: Weight Capacity, Operating Notes
WEIGHT CAPACITY AND DIMENSIONS 1. Maximum weight capacity on Uprights: 136 kgs 2. Maximum user weight on bench: 136 kgs 3. Maximum weight capacity on Bench (including user weight): 272 kgs 4. Maximum weight capacity on Leg Developer weight post: 45 kgs 5. - Page 9 Folding the Bench 1. Pull out the U-shaped Lock Pin (#42) and insert the Pin into the hole on Leg Developer (#13) to lock the Leg Developer in position. 2. Place the Backrest Adjustment Bar (#9) to lowest position. Pull out the Lock Pin (#26) that is inserted in the rear of Main Seat Support (#6).
-
Page 10: Parts List
MWB-20100 PARTS LIST PART NO. DESCRIPTION SIZE QUANTITY Right Upright Left Upright Right Base Left Base Cross Brace Main Seat Support Front Post Front Base Backrest Adjustment Bar Main Seat Stabilizer Sliding Block Arm Curl Stand Leg Developer Backrest Support... - Page 11 M8 x ¾” Allen Bolt M8 x 1 ⅝” Allen Bolt M10 x ⅝” Allen Bolt M10 x 2 ½” Hex Bolt M10 x 3” Hex Bolt M10 x 3 ½” Hex Bolt M10 x 6 ⅛” Hex Bolt M10 x 2 ¾” Carriage Bolt Ø...
-
Page 12: Exploded Diagram
EXPLODED DIAGRAM... -
Page 13: Warranty
LIMITED WARRANTY Pure-Tec. warrants this product to be free from defects in workmanship and material, under normal use and service conditions. Please refer to www.puretecfitness.com for warranty conditions. This warranty extends only to the original purchaser and is valid for home use only.
