Summary of Contents for LumaSense technologies Impac IS 50-LO/GL

  • Page 1 上海麦兴仪器设备有限公司 www.imaxsun.com IS 50-LO/GL INFRATHERM-Pyrometer Betriebsanleitung · User Manual IMPAC - Spezialist für berührungslose Temperaturmessung IMPAC - Specialist in non-contact thermometry...
  • Page 2: Table Of Contents

    INFRATHERM pyrometer IS 50-LO/GL Contents General..................................14 Information about the user manual ......................14 Limit of liability and warranty........................14 Legend................................ 14 Terminology..............................14 Copyright ..............................14 Disposal / decommissioning ........................14 Technical data ................................ 15 Dimensions..............................15 Overview ................................. 16 Appropriate use ............................
  • Page 3: General

    INFRATHERM pyrometer IS 50-LO/GL General Information about the user manual Congratulations on choosing this high quality and highly efficient IMPAC Pyrometer. Please read this manual carefully, step by step, including all notes to security, operation and maintenance before using the pyrometer. For operation of the instrument this manual is an important source of information and work of reference. To avoid handling errors keep this manual in a location where you always have access to.
  • Page 4: Technical Data

    INFRATHERM pyrometer IS 50-LO/GL Technical data Temperature range: 600 ... 1800°C Sub-temperature range: User-adjustable (minimum span is 51°C). Data handling: digital Spectral range: 0.8 ... 1.1 µm Fiber optic cable: Multi-fiber light guide (Ø of 0.6 mm) with stainless steel protective coating IR detector: Silicon (Si)-based photo diode Power supply:...
  • Page 5: Overview

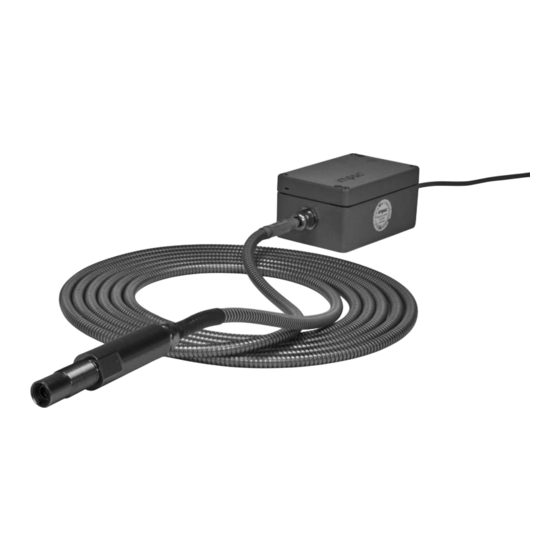

    INFRATHERM pyrometer IS 50-LO/GL Overview Converter Black fibre mark Fibre Optical head Green fibre mark Appropriate use The pyrometer IS 50-LO/GL is specially designed for the glass industry. It is used for the temperature measurement of glass in tank, working end, forehearth and feeder. Additional applications are the measurement of brickworks in regen- erator and tank.
  • Page 6: Electrical Installation

    INFRATHERM pyrometer IS 50-LO/GL Electrical installation The INFRATHERM IS 50-LO/GL is powered by 24 V ± 25 % (18 … 30 V DC). When connecting it to the power supply ensure correct polarity. The power consumption (in this case 4 - 20 mA) is also the measuring signal. The instrument don’t need any time for starting or preheating and is immediately ready for operation.
  • Page 7: Converter

    INFRATHERM pyrometer IS 50-LO/GL Converter To fix the converter, 2 drill holes for screws with 4 mm diameter are to reach after remov- Cover ing the cover. For fixing the optical head different mounting Drill holes supports are available (see 6.5 Accessories (option)).
  • Page 8: Accessories (Option)

    INFRATHERM pyrometer IS 50-LO/GL Accessories (option) As a standard accessory, the INFRATHERM IS 50-LO/GL is provided with an air purge tube and mounting bracket (also see section 11, Reference numbers). For corresponding applications various optional sighting tubes are available. Air purge unit Bayonet fixing Inconel- The air purge unit with mounting support...
  • Page 9: Instrument Settings

    INFRATHERM pyrometer IS 50-LO/GL Instrument settings Controls and interface connection The controls for emissivity, a switch for a test Service current and a connector for the service interface interface (to adjust a temperature sub range, see 8.5 Settings via service interface / PC) Emissivity setting are located in the converter housing.
  • Page 10: Connection Pc / Signal Processor

    INFRATHERM pyrometer IS 50-LO/GL Note: The software program serves only as a means of setting the parameters of the signal processor and was not designed as a controlling mechanism for measurement systems! After set-up is complete, disconnect the PC adapter cable and close the converter housing.
  • Page 11: Transport, Packaging, Storage

    INFRATHERM pyrometer IS 50-LO/GL Transport, packaging, storage With faulty shipping the instrument can be damaged or destroyed. To transport or store the instrument, please use the original box or a box padded with sufficient shock-absorbing material. For storage in humid areas or shipment overseas, the device should be placed in welded foil (ideally along with silica gel) to protect it from humidity.
