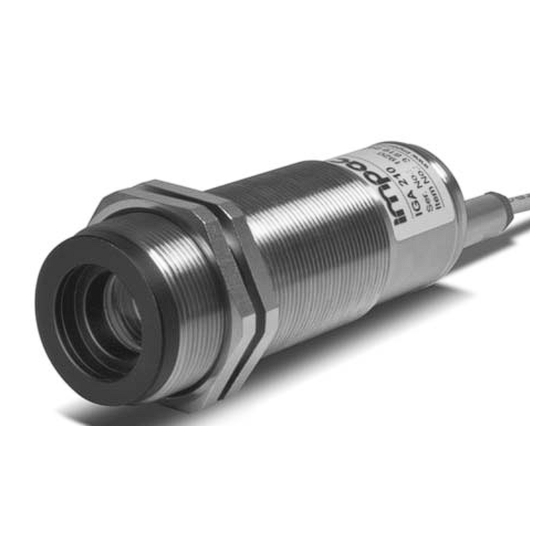

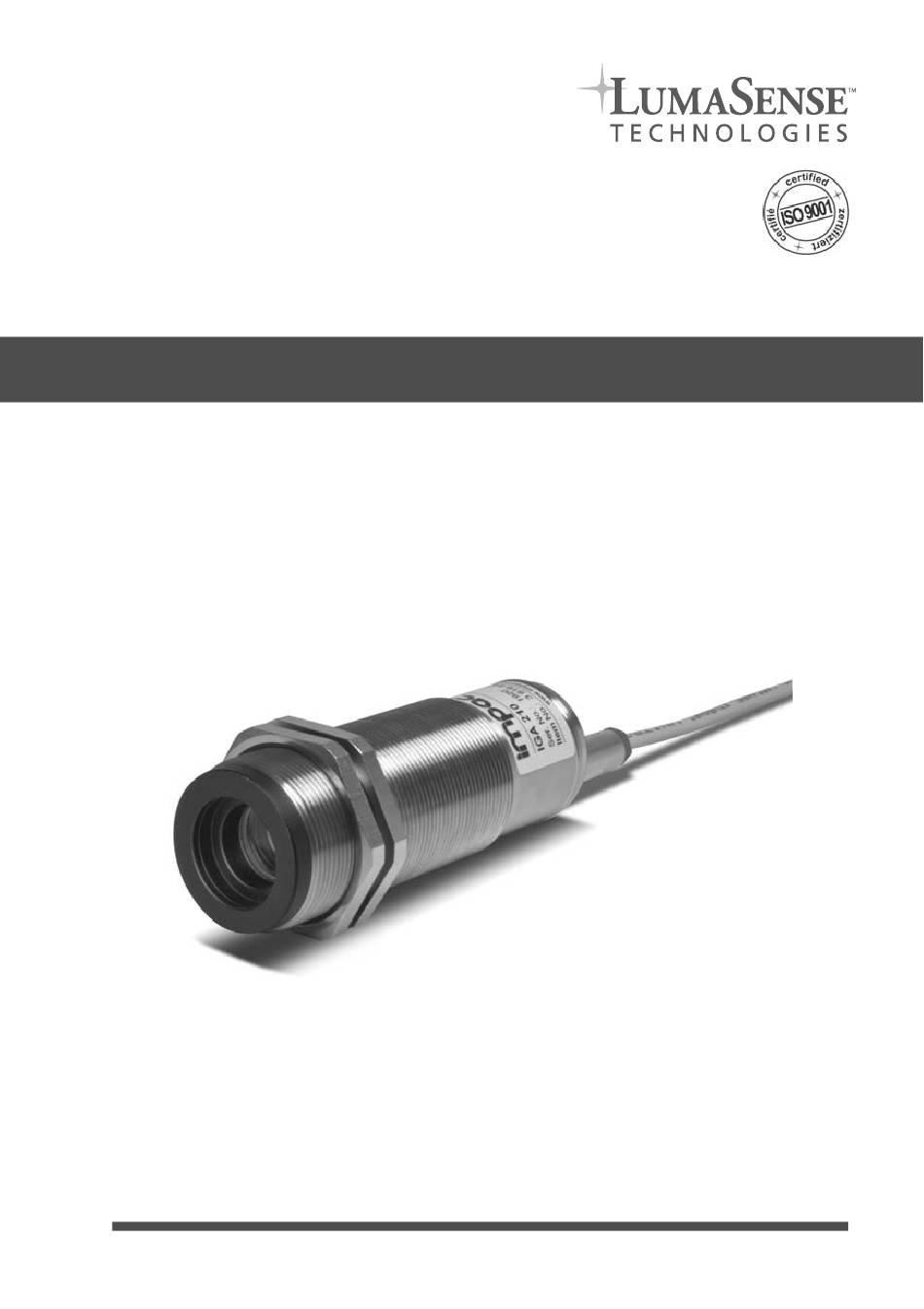

- Page 1 IS 210 · IGA 210 IMPAC-Pyrometer Operation Manual · Betriebsanleitung Proven Quality...
-
Page 2: Table Of Contents
IMPAC pyrometers IS 210 · IGA 210 Content General..........................3 Information about the user manual .................. 3 Limit of liability and warranty.................... 3 Legend .......................... 3 Terminology ........................3 Copyright.......................... 3 Disposal / decommissioning ....................3 Technical data ........................4 Dimensions.......................4 Appropriate use ....................5 Scope of delivery ....................5... -
Page 3: General
LumaSense Technologies is not liable for any damages that arise from the use of any exam- ples or processes mentioned in this manual or in case the content of this document should be incomplete or incorrect. -
Page 4: Technical Data
IMPAC pyrometers IS 210 · IGA 210 Technical data Temperature range: IS 210 MB 18: 650 to 1800°C (1202 to 3272°F) IS 210 MB 25: 800 to 2500°C (1472 to 4532°F) IGA 210 MB 13L: 300 to 1300°C (572 to 2372°F) IGA 210 MB 18L: 350 to 1800°C... -
Page 5: Appropriate Use
IS 210 and IGA 210 are equipped with a LED targeting light for aiming at the measuring ob- ject. The center of the light marks the center of the spot. For use of this targeting light a sepa- rate power supply is necessary with 5 to 30 V DC and 35 mA. -
Page 6: Wiring Example If Using A Digital Display With Integrated Power Supply
IMPAC pyrometers IS 210 · IGA 210 Wiring example if using a digital display with integrated power supply: + green Power supply - yellow for LED targeting light 230 V white Digital display brown with built-in °C 2-wire supply Shield (black) 4 ... -
Page 7: Connection To The Portable Parametrizing Device Ht 6000
IMPAC pyrometers IS 210 · IGA 210 Connection to the portable parametrizing device HT 6000 HT 6000 Power supply as displayed above HT 6000 Mechanical Installation / accessories Numerous accessories guarantee easy installation of the pyrometers. The following overview shows a selection of suitable accessories. The available range with reference numbers is listed on page 13. -
Page 8: Alignment With The Led Targeting Light
IMPAC pyrometers IS 210 · IGA 210 Measuring distance [mm] Spot size [mm] Type a:M * Optics = a [mm] [mm] [mm] [mm] [mm] [mm] [mm] (MB 18) 130:1 1000 1500 (MB 25) 240:1 (MB 18) 140:1 1000 1500 2000... -
Page 9: Parameter Settings
IMPAC pyrometers IS 210 · IGA 210 Parameter Settings The setting of emissivity, response time and temperature sub range can only be done via service interface with the portable setup device HT 6000 (see 8.1 ) or via USB adapter for IN 210 and the software InfraWin (see 8.2 ). -
Page 10: Temperature Sub Range
IMPAC pyrometers IS 210 · IGA 210 Temperature sub range Settings: You have the opportunity to choose a sub range (minimum span 51°C) Min . within the basic measuring range of the pyrometer. This sub range corre- sponds to the analog output (4 to 20 mA). -
Page 11: With Software Infrawin (Only Via Optional Available Usb Adapter)
IMPAC pyrometers IS 210 · IGA 210 with software InfraWin (only via optional available USB adapter) InfraWin is an adjustment and evaluation software that can be used to read out the available parameters of the pyrome- ter and change them, if required. Additionally the measure- ment can be observed via graphical surface. -
Page 12: Cleaning
IMPAC pyrometers IS 210 · IGA 210 10.2 Cleaning The pyrometer has no internal parts, which have to be serviced. The lens can be cleaned with compressed air, which is dry and free of oil. If the lens requires more thorough cleaning, use a soft, dry cloth such as that used to clean camera lenses. -
Page 13: Reference Numbers
IMPAC pyrometers IS 210 · IGA 210 Reference Numbers 12.1 Reference numbers instruments IS 210 IGA 210 650 to 1800°C 800 to 2500°C 300 to 1300°C 350 to 1800°C (MB 18) (MB 25) (MB 13L) (MB 18L) Optics 300 3 819 860...
