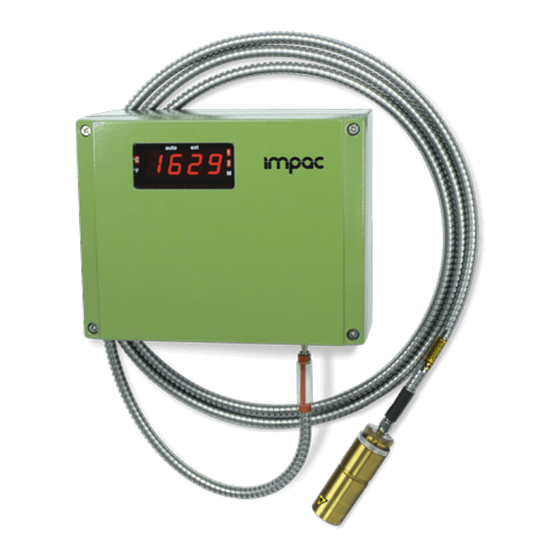

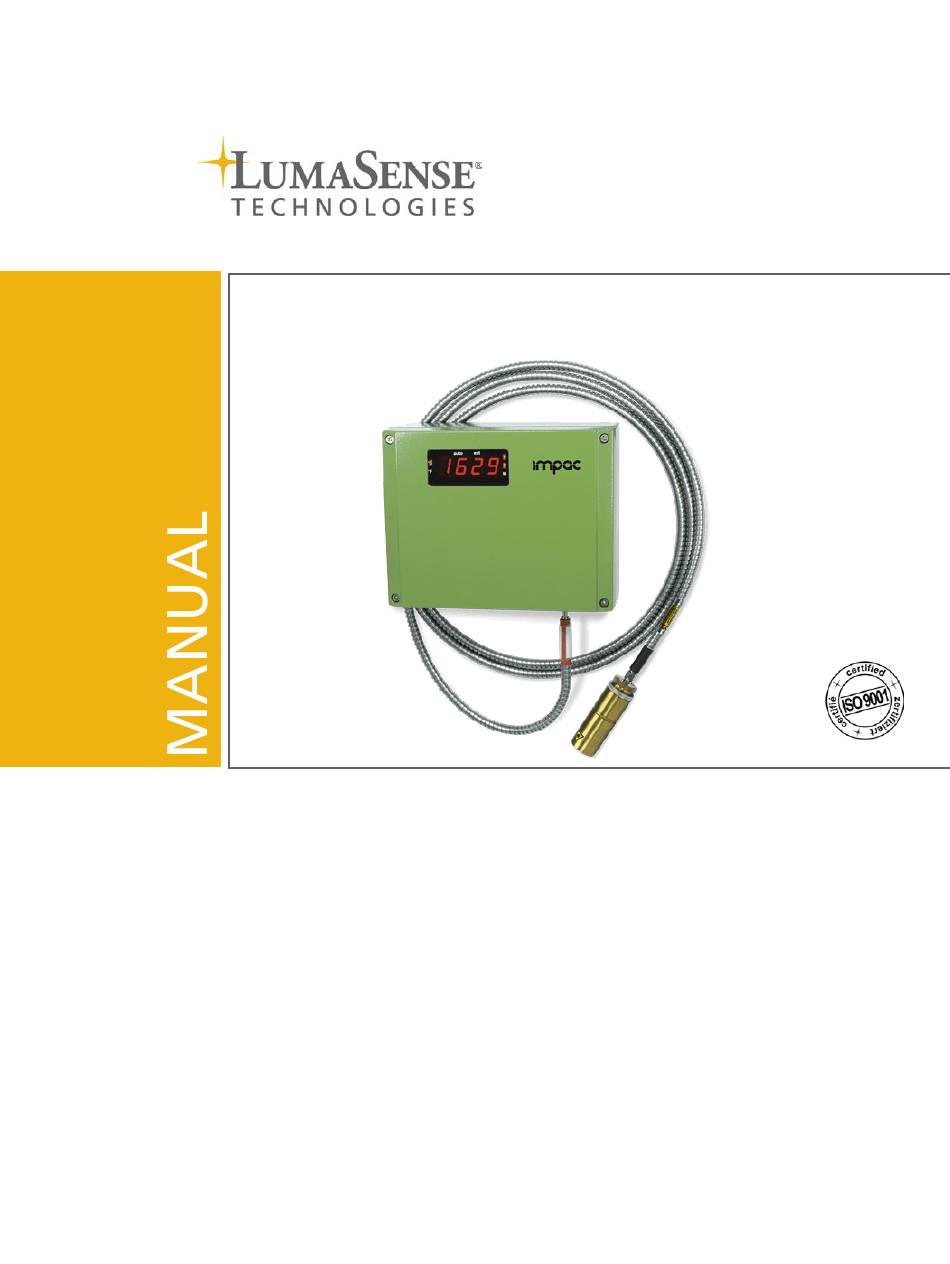

- Page 1 Series 12 ISR 12-LO • IGAR 12-LO IMPAC Pyrometer...
- Page 2 LumaSense Technologies prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual, without the express written permission of LumaSense Technologies.
-
Page 3: Table Of Contents
Adjusting the required measuring distance with optical head ΙΙ, focusable ..21 3.5.3 3.6 Laser targeting light ..................... 22 Settings / Parameter Descriptions ................23 4.1 Factory settings ..................... 23 4.2 Instrument settings ....................23 ISR 12-LO • IGAR 12-LO Operating Manual Contents • iii... - Page 4 Data format UPP (Universal Pyrometer Protocol) ............35 Reference numbers ....................... 39 8.1 Reference numbers instrument ................39 8.2 Reference numbers accessories ................39 Troubleshooting ......................41 Index ............................. 43 ISR 12-LO • IGAR 12-LO Operating Manual Contents • iv...
-
Page 5: General
Warning: The pyrometer is only to be used as described in this manual. It is recommended that you only use accessories provided by the manufacturer. In addition, signs and markings on the device are to be observed and maintained in legible condition. ISR 12-LO • IGAR 12-LO Operating Manual General • 5... -
Page 6: Laser Targeting Light
LumaSense Technologies is not liable for any damages that arise from the use of any examples or processes mentioned in this manual or in case the content of this document should be incomplete or incorrect. -
Page 7: Unpacking The Instrument
Email: eusupport@lumasenseinc.com 1.6 Shipments to LumaSense for Repair All RMA shipments of LumaSense Technologies instruments are to be prepaid and insured by way of United Parcel Service (UPS) or preferred choice. For overseas customers, ship units air- freight, priority one. -
Page 8: Transport, Packaging, Storage
Storing the insturment out of these conditions can cause damage or result in malfunction of the pyrometer. 1.8 Disposal / decommissioning Inoperable IMPAC pyrometers must be disposed of in compliance with local regulations for electro or electronic material. ISR 12-LO • IGAR 12-LO Operating Manual General • 8... -
Page 9: Introduction
2 Introduction 2.1 Appropriate use The pyrometers ISR 12-LO and IGAR 12-LO are digital, highly accurate 2-color pyrometers with fiber optic for non-contact temperature measurement on metals, ceramics, graphite etc. between 300 and 3300 °C. The pyrometers measures in the 2-color principle (ratio principle) in which two adjacent wavelengths are used to calculate the temperature. - Page 10 The temperature of fiber and optical head must be at least 30 °C lower than the measuring temperature to get a correct temperature reading Protection class: IP65 (DIN 40 050) Ambient temperature: Converter housing: 0 to 60 °C (ISR 12-LO); 0 to 50 °C (IGAR 12-LO) Storage temperature: -20 to 70 °C Rel. humidity: Non-condensing conditions Weight: Converter: 2.2 kg;...
-
Page 11: Dimensions
Sighting: Laser targeting light (max. power level < 1 mW, λ = 630-680 nm, CDRH class II). (With IGAR 12-LO measurements are possible while laser targeting light is switched on, with ISR 12-LO measuring is stopped) CE-label: According to EU directives about electromagnetic immunity Note: The determination of the technical data of this pyrometer is carried out in accordance with VDI/VDE directive IEC TS 62942-2, “Determination of the technical data... -
Page 12: Physical User Interface
The clamping-screws of the ball and socket mounting enable an easy and fast adjustment of the pyrometer in all directions. Mounting angle Ball and socket mounting ISR 12-LO • IGAR 12-LO Operating Manual Introduction • 12... - Page 13 Displays: Additionally, to the built-in temperature indicator of the pyrometer LumaSense offers several digital displays which can also be used for remote parametrizing of the pyrometer. Digital display DA 6000 ISR 12-LO • IGAR 12-LO Operating Manual Introduction • 13...
- Page 14 To ensure consistent document formatting, this page was intentionally left blank. ISR 12-LO • IGAR 12-LO Operating Manual Introduction • 14...
-
Page 15: Controls And Connections
3.1 Electrical Installation The ISR 12-LO and the IGAR 12-LO are powered by a voltage of 24 V DC (15 to 40 V DC) or 24 V AC (12 to 30 V AC). As the instrument is operating with heated and thermostatically controlled sensors, it needs a warm-up of up to 5 minutes (during this warm-up period the LED display indicates “7777“), after that the instrument is ready for use. -
Page 16: Connector Pin J
Warm-up is finished (no display “7777“) • The clear time is not set to “extern“ (see sections 4.1 and 4.8). • The pyrometer is operating in “2-color mode“ (see section 4.9) ISR 12-LO • IGAR 12-LO Operating Manual Controls and Connections • 16... -
Page 17: Connecting The Pyrometer To A Pc
31 The baud rate is reduced by 50% when the transmission distance is doubled (see 4.14 Baud rate). Typical cable length for 19200 Bd is 2 km. ISR 12-LO • IGAR 12-LO Operating Manual Controls and Connections • 17... -
Page 18: Connection Of Additional Analyzing Devices
4 mm diameter are cover visible after removing the cover. For fixing the optical heads different mounting supports are available (see 2.6 Accessories (Optional)). Drill holes ISR 12-LO • IGAR 12-LO Operating Manual Controls and Connections • 18... -
Page 19: Fiber Optic
Short time (max. 200 °C) 100 mm 50 mm Permanent (max. 200 °C) 300 mm 120 mm Attention: A hot fiber optic cable should not be exposed to continual movement! ISR 12-LO • IGAR 12-LO Operating Manual Controls and Connections • 19... -
Page 20: Optical Head
Meas. Optical ISR 12-LO: MB 13 ISR 12-LO: MB 18, 25, 33 Aperture Distance head IGAR 12-LO: MB 10 IGAR 12-LO: MB 13, 17, 22, 25 D (mm)* a (mm) M [mm] M [mm] Type I (small optics) Type II 88 to 110 0.8 to 1.1... -
Page 21: Adjusting The Required Measuring Distance With Optical Head Ι Or Ιι, Fixed Adjusted
In the correctly focused distance the laser has its smallest spot size (sharpest image). After adjustment tighten the fixing nut. ISR 12-LO • IGAR 12-LO Operating Manual Controls and Connections • 21... -
Page 22: Laser Targeting Light
For easy alignment to the measuring object the pyrometers are equipped with a laser targeting light. The laser marks the center of the measuring spot and corresponds to the spot size. With the IGAR 12-LO the measurement is not effected by the laser targeting light. As the laser targeting light influences the measurement of the ISR 12-LO the last measured value is hold in the analog output. -
Page 23: Settings / Parameter Descriptions
After removing the cover of the housing, the setting keys of the pyrometer are accessible. Note: Please make sure that the pyrometer is not contaminated while open. ISR 12-LO • IGAR 12-LO Operating Manual Settings / Parameter Descriptions • 23... -
Page 24: Key Panel Operation
(the keys and ENT are blocked if the keyboard is locked via the interface commands or/and during a measurement in combination with a PC and InfraWin). ISR 12-LO • IGAR 12-LO Operating Manual Settings / Parameter Descriptions • 24... -
Page 25: Special Indications
Pushing the PL key in measuring mode the laser targeting light is switched on / off: The IGAR 12-LO measures continuously also with switched on targeting light and the display shows the actual temperature reading. As the laser targeting light influences the measurement of the ISR 12-LO the last measured value is hold in the analog output. -
Page 26: Emissivity Ε / Emissivity Slope K
0.8 to 0.9 1.01 Chamotte 0.45 to 0.6 0.45 to 0.6 Earthenware, glazed 0.86 to 0.9 0.8 to 0.9 Brick 0.85 to 0.9 0.8 to 0.9 Soot 0.95 0.95 ISR 12-LO • IGAR 12-LO Operating Manual Settings / Parameter Descriptions • 26... - Page 27 For this an external push button or switch must be connected (see 3.2.1, Connector pin J) which holds the temperature reading as long as the contacts are closed. ISR 12-LO • IGAR 12-LO Operating Manual Settings / Parameter Descriptions • 27...
-
Page 28: Response Time / Exposure Time
2 and 50%, ex works at delivery set to 10%. Note: The smaller the value the higher the chance that daylight or reflections affect a correct measurement. ISR 12-LO • IGAR 12-LO Operating Manual Settings / Parameter Descriptions • 28... -
Page 29: Analog Output
A standard cable length with RS232 for 19200 Bd is 7 m, 2.4 kBd with RS485 2 km. The baud rate is reduced by 50% if the transmission distance is doubled. 115.2 kBd ISR 12-LO • IGAR 12-LO Operating Manual Settings / Parameter Descriptions • 29... - Page 30 To ensure consistent document formatting, this page was intentionally left blank. ISR 12-LO • IGAR 12-LO Operating Manual Settings / Parameter Descriptions • 30...
-
Page 31: Software Infrawin
The first time you load InfraWin 5, you will be prompted to select a default language. The InfraWin software is available in German, English, Spanish, French, Portuguese, and Chinese. Once installed, click Language/Languages if you would like to select another language. ISR 12-LO • IGAR 12-LO Operating Manual Software InfraWin • 31... - Page 32 To ensure consistent document formatting, this page was intentionally left blank. ISR 12-LO • IGAR 12-LO Operating Manual Software InfraWin • 32...
-
Page 33: Maintenance
A recalibration of the pyrometer is not necessary. Replacement can be necessary if the lens is scratched or the pyrometer will be used for other measuring distances. ISR 12-LO • IGAR 12-LO Operating Manual Maintenance • 33... - Page 34 To ensure consistent document formatting, this page was intentionally left blank. ISR 12-LO • IGAR 12-LO Operating Manual Maintenance • 34...
-
Page 35: Data Format Upp (Universal Pyrometer Protocol)
0 = intrinsic time constant of the device 1 = 0.01 s 3 = 0.25 s 5 = 3.00 s 2 = 0.05 s 4 = 1.00 s 6 = 10.00 s ISR 12-LO • IGAR 12-LO Operating Manual Data format UPP (Universal Pyrometer Protocol) • 35... - Page 36 1 = lock lk1, removal with command lk0 or power off-on 0 = removal of lock lk1 3 = continuous lock lk3, removal only with command 2 = removal of lock lk3 ISR 12-LO • IGAR 12-LO Operating Manual Data format UPP (Universal Pyrometer Protocol) • 36...
- Page 37 = day; mm = month; yy = year; XX.YY = software version Device type: AAna Output: “ISR 12-LO“ or “IGAR 12-LO (16 ASCII-characters) Note: The letter “l” means the lower case letter of “L”. ISR 12-LO • IGAR 12-LO Operating Manual Data format UPP (Universal Pyrometer Protocol) • 37...
- Page 38 To ensure consistent document formatting, this page was intentionally left blank. ISR 12-LO • IGAR 12-LO Operating Manual Data format UPP (Universal Pyrometer Protocol) • 38...
-
Page 39: Reference Numbers
8 Reference numbers 8.1 Reference numbers instrument Ordering note: The pyrometers ISR 12-LO and IGAR 12-LO can be configured with different optical fiber lengths and optical heads as well as with variious optional extras. To determine the part number and the price for the desired combination please contact LumaSense or your LumaSense sales representative. - Page 40 3 826 510 PI 6000: PID programmable controller, very fast, for digital IMPAC pyrometers 3 838 280 Laser protection filter for fiber vario-optics (built in), 920...1100 nm, for IGAR 12-LO 3 834 370 Mounting support for optical head I (fixed)
-
Page 41: Troubleshooting
Probably compressed air is not clean or air failed. ⇒ Clean the lens and use clean, dry and oil free compressed air. • HF-interferences. ⇒ Correct the connection of the cable shield (see 4). ISR 12-LO • IGAR 12-LO Operating Manual Troubleshooting • 41... - Page 42 To ensure consistent document formatting, this page was intentionally left blank. ISR 12-LO • IGAR 12-LO Operating Manual Troubleshooting • 42...
-
Page 43: Index
Service Request 7 General 5 Setting keys 24 Settings 23 Software InfraWin 31 Spot size data 20 Installation, electrical 15 Storage 8 Interface 25 Subrange 29 IR calculator 21 Support 7 ISR 12-LO • IGAR 12-LO Operating Manual Index • 43... - Page 44 Technical data 9 Temperature display 24 Temperature display in °C or °F 25 Test current button 24 Transport, packaging, storage 8 Trouble shooting 41 Unpacking 7 UPP data format 35 Warranty 6 ISR 12-LO • IGAR 12-LO Operating Manual Index • 44...
