LumaSense technologies ISR 320 Manual

Impac pyrometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPAC Pyrometer
ISR 320

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISR 320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LumaSense technologies ISR 320

Summary of Contents for LumaSense technologies ISR 320

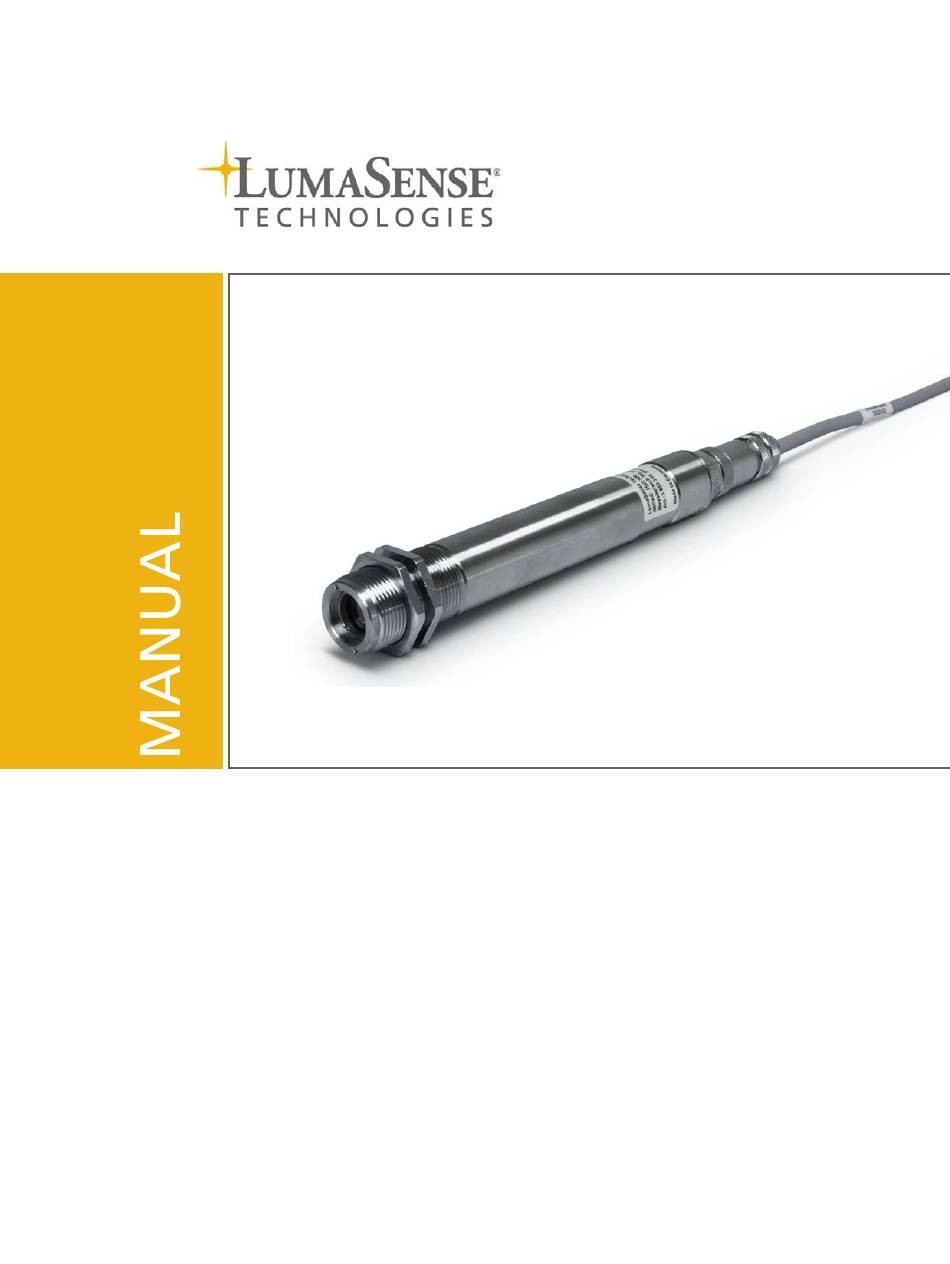

  • Page 1 IMPAC Pyrometer ISR 320...
  • Page 2 LumaSense Technologies prohibits the duplication of any portion of this manual or the use thereof for any purpose other than the operation or maintenance of the equipment described in this manual, without the express written permission of LumaSense Technologies.

  • Page 3: Table Of Contents

    4.2 Emissivity Slope K ....................17 4.2.1 Temperature Errors Cause by Non-Graybodies ............ 18 4.3 Transmittance τ ..................... 19 4.4 Response Time (t ) ....................19 4.5 Clear Peak Memory (t ) ..................19 CLEAR ISR 320 Manual Contents • iii...
  • Page 4 Software InfraWin ......................25 5.1 Connecting the Pyrometer to a PC ..............25 5.2 Installation ......................25 5.3 Program Start ......................25 Maintenance ........................27 6.1 Cleaning ISR 320 Window ..................27 6.2 Calibration ......................27 6.2.1 Laboratory Calibration ..................27 6.2.2 On-Site Calibration ....................

  • Page 5: General Information

    1.2 Safety This manual provides important information on safely installing and operating the IMPAC ISR 320 pyrometer. Several sections of this manual provide safety warnings to avert danger. These safety warnings are specified with a warning symbol. You must read and understand the contents of this manual before operating the instrument even if you have used similar instruments or have already been trained by the manufacturer.

  • Page 6: Limit Of Liability And Warranty

    LumaSense Technologies is not liable for any damages that arise from the use of any examples or processes mentioned in this manual or in case the content of this document should be incomplete or incorrect.

  • Page 7: Shipments To Lumasense For Repair

    Email: eusupport@lumasenseinc.com 1.6 Shipments to LumaSense for Repair All RMA shipments of LumaSense Technologies instruments are to be prepaid and insured by way of United Parcel Service (UPS) or preferred choice. For overseas customers, ship units air- freight, priority one.
  • Page 8 To ensure consistent document formatting, this page was intentionally left blank. ISR 320 Manual General Information • 8...

  • Page 9: Introduction

    2 Introduction 2.1 Appropriate Use The IMPAC ISR 320 pyrometer is a stationary, digital pyrometer for non-contact temperature measurement on metals, ceramics, graphite, semiconductors etc. in the range between 700 and 2500 °C. The pyrometer measures in 2-color mode (ratio principle) in which two adjacent wavelengths are used to calculate the temperature.
  • Page 10 VDI/VDE directive “Temperature measurement in industry, Radiation thermometry, Calibration of radiation thermometers”, VDI/VDE 3511, Part 4.4. For additional details on this directive, see http://info.lumasenseinc.com/calibration or order the directive from “Beuth Verlag GmbH” in D-10772 Berlin, Germany ISR 320 Manual Controls and Installation • 10...

  • Page 11: Dimensions

    The completely covered water-cooling jacket is made from stainless steel and serves to protect the pyrometer if exposed to a hot environment. It is designed for ambient temperatures up to 200 °C. ISR 320 Manual Controls and Installation • 11...

  • Page 12: Air Purge

    The mounting support can be equipped with a quartz window for vacuum applications. It may consist of an equipment rack, flange, and an open or closed ceramic tube. The equipment rack can be equipped for vacuum applications with a fused silica. ISR 320 Manual Controls and Installation • 12...

  • Page 13: Controls And Installation

    (reference point 0 V) violet black red/blue A2 (bridge to A1) gray/pink B2 (bridge to B1) Pin assignment orange Screen only for cable extension, don't connect at (side of male inserts) the switchboard ISR 320 Manual Controls and Installation • 13...

  • Page 14: Connecting The Pyrometer To A Pc

    Parameterizing Indicator Digital Controller Additional analyzing instruments, including LED digital displays only need to be connected to a power supply and the analog outputs of the pyrometer (exception: the digital display DA 6000 ISR 320 Manual Controls and Installation • 14...

  • Page 15: Sighting

    3.2.1 LED Targeting Light The ISR 320 is equipped with a LED targeting light to assist with aligning the pyrometer to the measuring object. The LED spot marks the center of the measuring spot on the target. The diameter does not correspond to the spot size. The smallest diameter of the LED spot approximately indicates the measuring distance.

  • Page 16: Optics

    3.3.1 Spot Sizes The ISR 320 has fixed optics for 300 mm or 800 mm measuring distance. The table of spot sizes in relation to measuring distance shows examples of the pyrometer’s spot size M [mm] in relation to the measuring distance a [mm] (min. 90% of the radiation intensity).

  • Page 17: Settings / Parameter Descriptions

    The K-factor can then be adjusted until the pyrometer shows the same temperature value. The ISR 320 is factory calibrated for graybody targets that exhibit equal changes in emissivity within its two spectral bands. Note: Emissivity Slope K Settings: 0.800 to 1.250 in steps of 1/1000 (2-color mode).

  • Page 18: Temperature Errors Cause By Non-Graybodies

    1%. The errors can get quite large as temperatures increase. This error can be much larger than a 1-color IR pyrometer would produce for 1% emissivity change. Therefore, it is important to select the proper mode (2-color vs. 1-color) on the ISR 320 to measure a specific material.

  • Page 19: Transmittance Τ

    The response time is set using the InfraWin software or by using the UPP Data Format commands. When the setting is set to min., the ISR 320 operates using a time constant of 10 ms. The response time can be extended to 0.01 s; 0.05 s; 0.25 s; 1 s; 3 s; 10 s.

  • Page 20: Clear Time Settings

    (controller, PLC, etc.). If 4 to 20 mA is set, the analog output gives 4mA for temperatures below lower range limit. Note: Settings for Analog Output : 0 to 20mA or 4 to 20mA ISR 320 Manual Settings / parameter descriptions • 20...

  • Page 21: Relative Signal Strength

    4.8 “Dirty Window” Warning The ISR 320 pyrometers are equipped with a warning level “dirty window” monitoring system. A correct temperature measurement might be impossible if the ratio pyrometer is working at a too low signal level.

  • Page 22: Sub Range

    “SP1“ box is exceeded. If the temperature falls below that, value minus the hysteresis the contact opens (a hysteresis between 2 and 20°C can be set to avoid oscillating of the switch in the switch point). ISR 320 Manual Settings / parameter descriptions • 22...
  • Page 23 (a hysteresis between 2 and 20°C can be set to avoid oscillating of the switch in the switch point). When the ISR 320 is used in ratio mode, the limit switch can be used for the “dirty window” function, the switch off, or the switch contact.
  • Page 24 To ensure consistent document formatting, this page was intentionally left blank. ISR 320 Manual Settings / parameter descriptions • 24...

  • Page 25: Software Infrawin

    The first time you load InfraWin 5, you will be prompted to select a default language. The InfraWin software is available in German, English, Spanish, French, Portuguese, and Chinese. Once installed, click Language/Languages if you would like to select another language. ISR 320 Manual Software InfraWin • 25...
  • Page 26 To ensure consistent document formatting, this page was intentionally left blank. ISR 320 Manual Software InfraWin • 26...

  • Page 27: Maintenance

    6 Maintenance 6.1 Cleaning ISR 320 Window Because there are no moving parts in the ISR 320, the only regular maintenance required is a periodic inspection of the front window for build-up of foreign particles, which, in time, can influence the energy received by the instrument. The ISR 320 has a “Dirty Window” warning alarm feature that can measure the current window/optical path transmission and provide a contact closure alert when the window transmission falls below the user set point.
  • Page 28 • Spot Sizes: Ensure the ISR 320 is using a proper focused distance and takes into account the spot size in relation to measuring distance. In the 1-color (mono) mode, the pyrometer can measure objects at any distance. However, the object has to be bigger than or at least as big as the spot size of the pyrometer in the measuring distance.

  • Page 29: Data Format Upp (Universal Pyrometer Protocol)

    4 = 19200 Baud 5 = 38400 Baud 6 = 57600 Baud 7 = is not allowed 8 = 115200 Baud “Dirty Window” AAdwXX XX = 00 …99% (2 digit, hex.) Warning  ISR 320 Manual Data format UPP • 29...
  • Page 30 2x4 hex-digit for lower and upper range limit (°C or °F) Sub Range (set) XXXXYYYY=2x4 hex-digit for lower and upper sub range AAm1XXXXYYYY limit (°C or °F) AAm2 AAm2 confirms the change (auto reset)  ISR 320 Manual Data format UPP • 30...
  • Page 31 XX = set hysteresis, hex 2-digit, °C or °F Limit Switch SP1 2…20 °C or 4…36 °F Device Type AAna Output: “ISR 320 ” (16 ASCII-characters) Read Parameters AApa Answer: 15 decimal digits DD ... . . : Emissivity (see em) .
  • Page 32 To ensure consistent document formatting, this page was intentionally left blank.  ISR 320 Manual Data format UPP • 32...

  • Page 33: Reference Numbers

    8 Reference Numbers 8.1 Reference Numbers Instrument Temperature Range Reference Number a / mm ISR 320, 700 to 1700 °C 3 903 500 ISR 320, 700 to 1700 °C 3 903 510 ISR 320, 900 to 2500 °C 3 903 520 ISR 320, 900 to 2500 °C...
  • Page 34 DA 6000-N digital display to allow adjustment of the Pyrometer through the RS485 interface 3 890 530 DA 6000: like DA 6000-N with analog input and 2 limit switches for the RS485 interface 3 890 630 LD24-UTP; large digital indicator, 57 mm height of digits ISR 320 Manual Reference Numbers • 34...

  • Page 35: Troubleshooting

    9 Troubleshooting Symptom Probable Cause Comments No analog output even if the Reversed leads to ISR 320 The ISR 320 is diode display shows a temperature protected if power leads Reversed leads to other instruments in the above lower range limit are reversed.
  • Page 36 AC power lines Lens or window clouding up Increase or decrease air purge rate and/or investigate other cause. Target leaving field of view or ISR 320 mount slipping Faulty ISR 320 Contact LumaSense. See section 1.5 Improper grounding of cable shield and/or...
  • Page 37 Flame or reflections of flame may be entering the field of view Extremely dense steam, smoke, thick dust, personnel or moving machinery intermittently blocking 95% of optical path of ISR 320 Non-uniform emissivity of large moving targets Slower response speed is required.
  • Page 38 To ensure consistent document formatting, this page was intentionally left blank. ISR 320 Manual Troubleshooting • 38...

  • Page 39: Index

    Settings / parameter descriptions 17 Sighting 15 Single Storage Mode 19, 22 Installation 25 Software InfraWin 25 Installation, Electrical 13 Spot Sizes 16 Spot sizes for non-focused distances 16 Storage 7 Storage Modes 19 ISR 320 Manual Index • 39...
  • Page 40 Sub Range 22 Support 6 Technical Data 9 Transmittance 19 Transport 7 Troubleshooting 35 Unpacking the Instrument 6  data format 29 Warranty 6 ISR 320 Manual • 40...
