CDVI C3S11 Installation

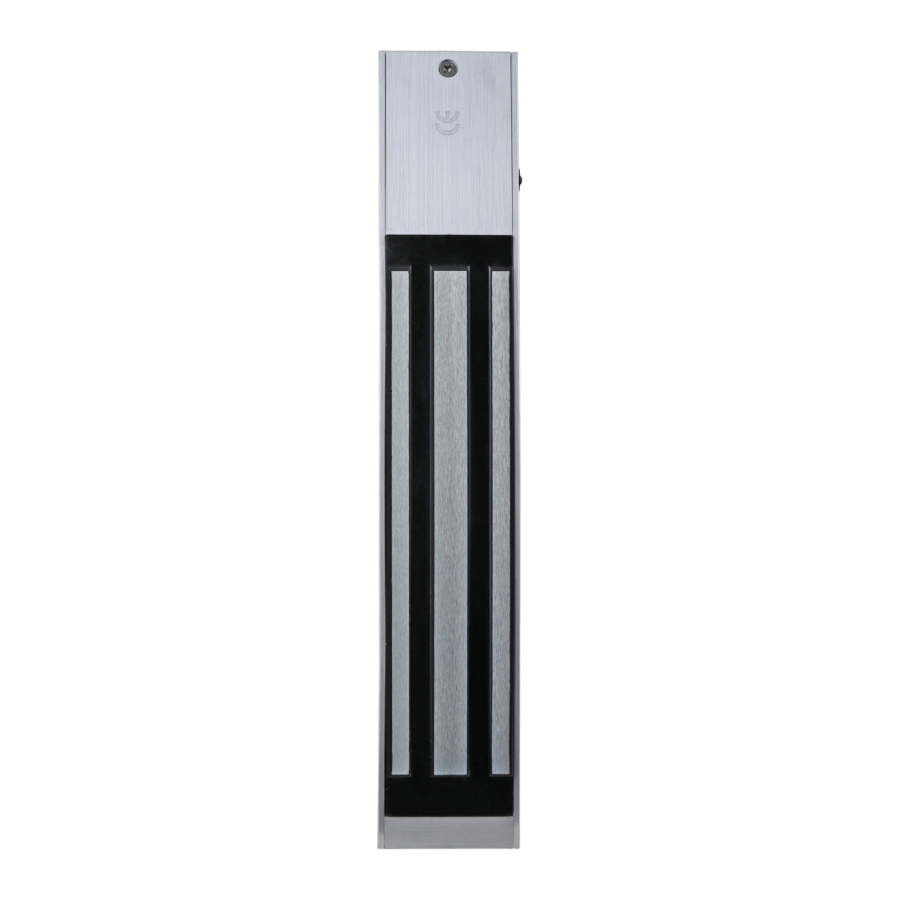

C3S11
300 Kg Surface Mount Electromagnetic lock
PRODUCT PRESENTATION
- NFS 61-937.
- Monitored.
- Surface mount.
- Delivered with armature plate.
- Corrosion resistance.
- No mechanical wear.
- Ease of installation.
- Recommended for interior use.
- Fail safe (Door unlocked when power off).
- Holding force: 300kg.
- No residual magnetism.
- Built-in varistor: Built-in electronic
protection to eliminate back EMF.
- 10 year warranty.
- Dimensions (L x W x D): 250 x 43 x 27mm.
- Armature dimensions (L x W x D): 185 x 38 x 11mm.
- Power supply: 12/24V dc.
- Power absorption:
- 12 V DC = 480mA,
- 24 V DC = 240mA.
WEEE & RoHS
EC certification
IP42
ELECTRICAL CONNECTIONS
Terminal
block
N.C
COM
N.O
The NO/NC signal only switches when
the door is closed with the power to it on.
- Check the jumper position before connecting
the lock to the input current. A wrong position
could damage the lock. This type of damage
is not covered by the warranty.
- Make sure that the magnet and the armature
meet evenly over their entire mating surfaces.
The Armature plate must be able to pivot
slightly about its center mounting screw
to compensate for any door misalignment.
All the information contained within this document (photos, drawing, features, specifications and dimensions) could be perceptibly different and can be changed without prior notice. cdvi.com
Manufacturing Access Control since 1985
Recommended
power supplies
ADC335 BS602
12V dc Default setup
Correspondence
+ 12 or 24V dc
-
- 0 V
NC (Normally closed)
COM
NO (Normally open)
IMPORTANT NOTE

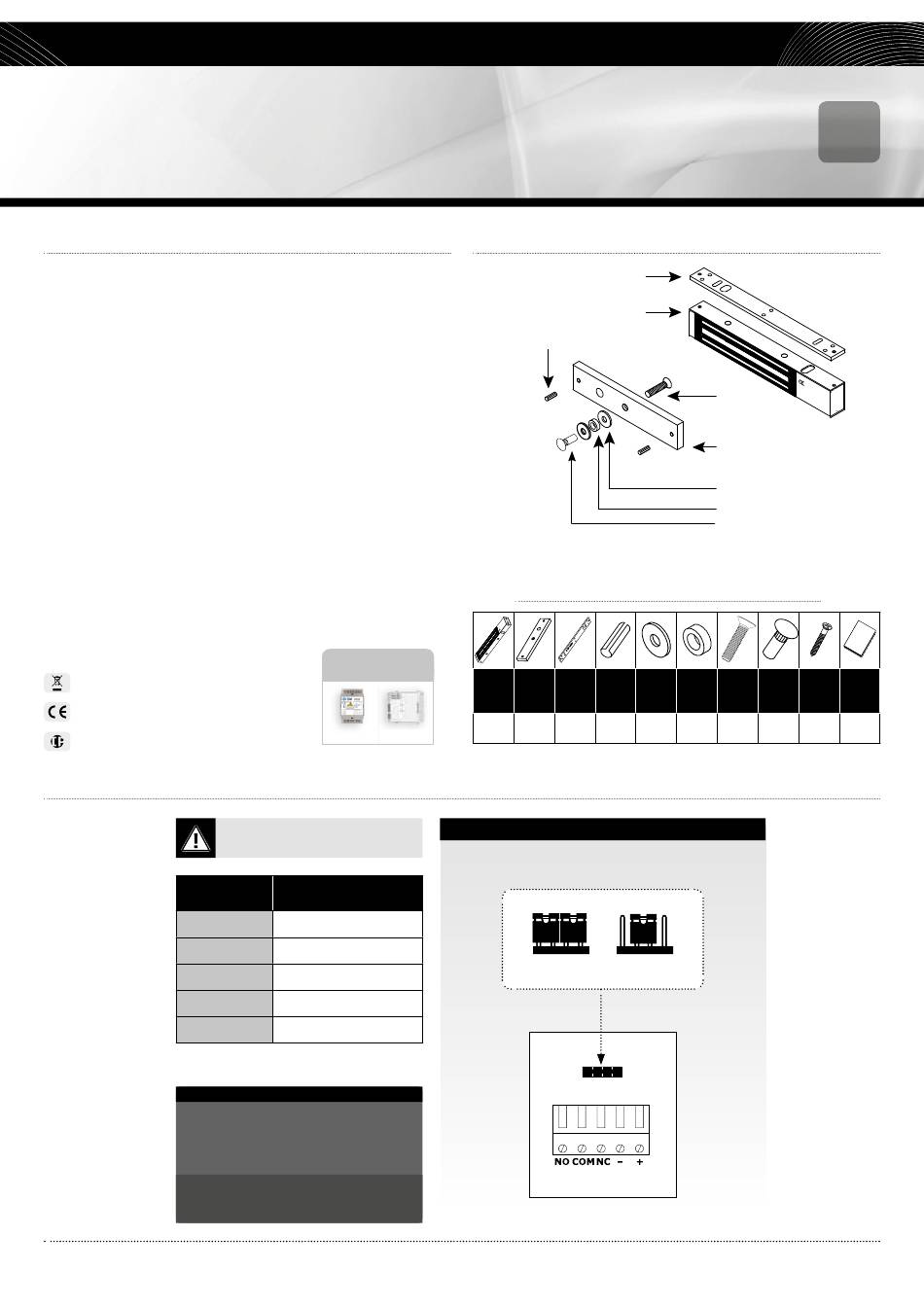

INSTALLATION
Fixing plate
Electromagnetic lock
Roll pin
PACKAGE CONTAIN
Surface
Armature Mounting
mount
plate plate
magnet
1 1 1
WITH BUILT-IN PCB BOARD
Voltage selection
jumpers
12V dc
G0301FR0337V05
M8
screw
Armature
Steel washer
Rubber washer
Cap nut
Cap nut
Roll pin Steel Rubber M8x35 Cap
5x16 washer washer screw nut
2 2 1 1
24V dc
EN
Wood
installation
screw
Manual
4x25
1
2 8
