CDVI C3S12 Product Presentation

PRODUCT PRESENTATION
Monitored
Surface Mount
High corrosion resistance
Delivered with armature plate
No mechanical wear
No residual magnetism
Ease of installation
Recommended for interior use
Fail safe (Door unlocked when power off)
Holding force: 2 x 300 kg
Built-in varistor: Built-in electronic protection to
eliminate back EMF
Dimensions (L x W x D): 502 x 42 x 27 mm
Armature plate dimensions (L x W x D): 185 x 38 x 11 mm
Power supply: 12-24V dc
Consumption: 960 mA @ 12V dc
480 mA @ 24V dc
WEEE & RoHS EC certification
PACKAGE CONTENT
Magnetic lock Armature plate
1 2
M8x25 Screw Allen Key
2 1
ELECTRICAL CONNECTIONS
12V dc Default setup
Terminal
Correspondence
block 37,9
+
12 or 24V dc
- 0V
N.C NC (Normally closed)
COM COM
N.O NO (Normally open)
The NO/NC signal only switches when
the door is closed with the power to it on.
IMPORTANT NOTE
- Check the jumper position before connecting
the lock to the input current. A wrong position
could damage the lock. This type of damage
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisation.
This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
is not covered by the warranty.
C.A. :
- Make sure that the magnet and the armature S0101DT-SDD300001
meet evenly over their entire mating surfaces.
S0101DT-SDG300001
SD300M-SD500M Board
The Armature plate must be able to pivot
slightly about its center mounting screw
With LED Left and Right
to compensate for any door misalignment.
Material : ...
General tolerance:
3
DES: W.Sainvil
Vol. (mm ) :
CDVI FRANCE + EXPORT CDVI UK
31, av. du Général Leclerc [UNITED KINGDOM - IRE-
93500 PANTIN - France LAND]
Phone +33 (0)1 48 91 01 02 Phone +44 (0)1628 531300
www.cdvi.com www.cdvi.co.uk
CDVI SWEDEN CDVI AMERICAS
[SWEDEN - DENMARK - [CANADA - USA]
NORWAY FINLAND] Phone +1 (450) 682 7945
Phone +46 (0)31 760 19 30 www.cdvi.ca
www.cdvi.se
Manufacturing Access Control since 1985
C3S12

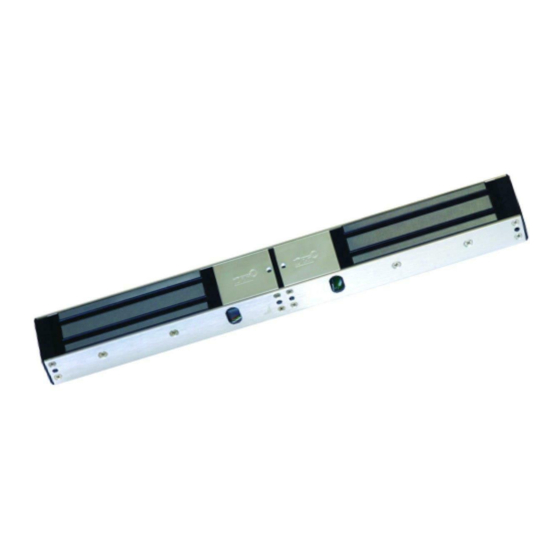

2 x 300 kg Double Surface Electromagnetic Lock
IP42
Fixing plate Guide piece 5x16 Roll pin
1 2
Steel washer Rubber washer
4 2
Voltage selection jumpers
12V dc
Recommended power supplies
Voltage Voltage
SCALE 1:1
12V
24V 24V
0.2 Surface condition: Ra 3,2
Weight (g) :
CDVI BENELUX
[BELGIUM - NETHERLAND -
LUXEMBOURG]
Phone +32 (0) 56 73 93 00
www.cdvibenelux.com
CDVI SUISSE
Phone +41 (0)21 882 18 41
www.cdvi.ch
Fixing plate
10
Maglock
Armature plate
YEAR
Roll pin
WARRANTY
Cap nut Cap nut
4x25 Wood
screw
4 16
Cap nut Manual
2 1
37,9
24V dc
Plan M2952
Edition 00
Date 10/03/2021
ADC335 ADC612S
A4V Project :
ADC324 ADC624S
31, av du Gal Leclerc
93691 PANTIN CEDEX
F R A N C E
Tel : 33(0)148910102
Fax : 33(0)148912121
CDVI IBÉRICA
www.cdvi.com
[SPAIN - PORTUGAL]
Phone +34 (0)935 390 966
www.cdviberica.com
CDVI ITALIA
Phone +39 0321 90 573
Fax: +39 0321 90 8018
www.cdvi.it
Guide piece Guide piece
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisat
This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
MOUNTING RECOMMENDATIONS
Matière : ...
DES.: A. Broustal
Armature plate
- It is vital to fix the electromagnetic lock and
armature plate solidly on their supports.
- Make sure that the magnet and the armature
meet evenly over their entire mating surfaces.
- The armature plate must be able to pivot slightly
about its center mounting screw to compensate
for any door misalignment.
OPTIONAL ACCESSORIES
Reference
Description Description
197
54
Reference
16,5 39 27 27 39
Description Description
6,8 M8 5,5
187
CDVI TAIWAN
165
82,5
Phone +886 (0)42471 2188
www.cdvichina.cn
A
CDVI CHINA
Phone +86 10 84606132/82
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisation.
This document is the exclusive property of CDVI and it may not be disclosed to others without permission. www.cdvichina.cn
AMA3
Sand Blasting
CDVI MAROC Zamak5 - Powder Paint RAL 9007
Material : Zamak 5
Tolerance : 0,1 Surface roughness: Ra3.2
Phone +212 5 2248 0940
3
DES.: W. Sainvil
Vol. (mm ) : 71163.67 Poids (g) : 476.81
www.cdvi.ma
EN
M8 Screw
Rubber washer
Steel washer
ECHELL
C3S12
Vue éclatée
Tolérance gale : 0.1 Etat de surface : Ra 3,2
3
Vol. (mm ) : Poids (g) :
L3L4
Z3Z4Z5
ZL Bracket for ZL Bracket for
300kg maglock 300kg maglock
AMA3
16,5
Bracket for Bracket for
SECTION A-A armature plate armature plate
SCALE 1 : 2
CDVI POLSKA
15
Phone +48 12 659 23 44
www.cdvi.com.pl
A
CDVI GERMANY
+49 (0) 175 2932 901
Plan D1226
www.cdvi.de
SCALE 1:2 Edition 02
Date 18/11/2020
A4V
C.A.: F0516000006
www.cdvi.com
31, av du Gal Leclerc
93691 PANTIN CEDEX
F R A N C E
Tel : 33(0)148910102
Fax : 33(0)148912121
www.cdvi.com
A3
