  • Page 2: Table Of Contents

    Table of Contents Warnings and Precautions ..........................4 Warranty ............................... 4 Standard Warranty ........................... 4 Two Year Warranty ........................... 5 Disposal ..............................5 Packing List ..............................5 Introduction ..............................6 Features ................................ 6 System Diagram ............................7 Rear Panel ..............................8 Control Panel..............................
  • Page 3 Keyer Control ............................20 Key Source ............................20 Fill Source ............................20 Still................................21 Load Still .............................. 21 Save Still .............................. 21 Freeze ..............................21 User ................................. 22 Load Memory ............................22 Save Memory ............................22 Inputs ..............................23 Input 1-4 .............................. 23 Crosspoint ............................

  • Page 4: Warnings And Precautions

    7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 5: Two Year Warranty

    Certain parts with limited lifetime expectancy such as LCD Panels, DVD Drives, Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first). Any second year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty expires.

  • Page 6: Introduction

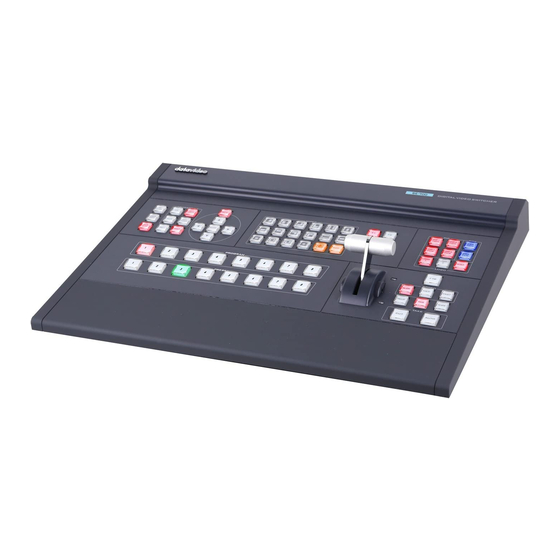

    SE-700 includes two SDI and two HDMI inputs with embedded audio. Two assignable SDI and one HDMI output for connecting HD recorder, monitor and to stream out, two Balanced XLR audio inputs for connecting an external audio mixers.

  • Page 7: System Diagram

    System Diagram...

  • Page 8: Rear Panel

    Two channels of XLR Balanced Audio Input. GPI output connection for basic control of other externally- connected devices Ethernet Port This port allows connection of the SE-700 to the PC for Firmware Update. Reserved for remote control of the SE-700. TALLY Output Sends Red, and Green tally signals to each channel.

  • Page 9: Control Panel

    Control Panel Function Keys F1 – F3 DSK Selection / PGM & PVW Settings User Memory FTB – Fade to Black Menu Control Speed Selection Wipe Transition Selection WIPE Transition Effect Wipe-IN Image Border Setting Take - Cut & Auto Live Video Screen Capture MIX Transition Effect Still Frame Store...
  • Page 10 Program image and the black represents the WIPE-IN image. There are a total of 32 WIPE presets Wipe Transition offered on the SE-700; 12 WIPE preset buttons allow the user Selection to make selection directly on the control panel and the rest of the 20 WIPE effects are selectable on the menu.
  • Page 11 PIP SETUP: Press PIP SETUP button to open PIP configuration PIP Selection / PGM & menu PVW Settings PIP PGM: Enable PIP on PGM PIP PVW: Enable PIP on PVW Keyer SETUP: Press Keyer SETUP button to open Keyer configuration menu / press and hold the button to select Key Keyer Selection / PGM SOURCE &...
  • Page 12 Cut: Manual transition TAKE - Cut & Auto Auto: Auto transition according to the speed selected MIX Function Mix transition effect PVW TRANS Transition on PVW only Black Background STILL Display STILL picture FREEZE Display FREEZE picture Background Button...

  • Page 13: Menu Options

    Menu Options This section covers the Menu options in the order that they appear on the screen. These settings are explained in detail in the sub-sections. Options may vary depending on the firmware version in use. Main Menu will appear on the screen after the MENU button is pressed. Use UP/DOWN/LEFT/RIGHT arrows to browse through the Menu and make your selection by pressing the ENTER button.
  • Page 14 Input1 Black Parameter for color of the Chroma key Chroma K Lift Parameter for the Chroma key in dark or black areas K Gain Parameter for the Chroma key in light or white areas Bars Matte Freeze Still P-In-P Src Input4 P-In-P Source Selections Input3...
  • Page 15 Black Memory 0-500 Location Load Pressing this button loads the selected still picture source Freeze Input 4 Load Still Input 3 Input 2 Destination Input 1 Still FS3 Still FS2 Still FS1 Freeze Input 4 Still Input 3 Input 2 Source Input 1 Still FS3...
  • Page 16 Still Freeze Input 1 Input 2 Input 3 Input 4 Still Freeze Input 1 Input 2 Input 3 Input 4 Still Freeze Input 1 Input 2 Input 3 Input 4 Still Freeze Input 1 Input 2 Input 3 Input 4 Still Freeze Freeze...

  • Page 17: Start

    Start Start option is primarily for the user to configure transition effects, such as mix effect, fade-to-black, and wipe. The sub-options are:  Transition  Wipe  Border  Position  Matte Start Transition 30 DSK 30 FTB Keyer P-In-P Wipe Wipe 1 Soft...

  • Page 18: Keyer

    Keyer Keyer of the SE-700 provides the user with the capability of image keying. Start Keyer Linear Self Keyer Keyer Ctrl Lift 0 Gain 1.0 Opac P-In-P Key Source Input 4 Fill Source Black Still User Chroma 357.6 K Lift...

  • Page 19: P-In-P

    P-In-P Picture-In-Picture (P-In-P) places an image on the PGM or PVW screens. Start P-in-P Src Black Keyer Position 20% Y 10% Size P-In-P Border Luma 0 Sat 0 Hue Border Width Still Crop Left 0 Right 0 Size User Crop 0 Bot Inputs Setup...

  • Page 20: Downstream Key

    Downstream Key This feature places downstream key on the PGM or PVW screens. Start Linear Self Keyer Keyer Ctrl Lift 0 Gain 0.0 Opac P-In-P Key Source Black Fill Source Black Still User Inputs Setup The DSK keyer options are Linear and Luma. After the DSK keyer option is chosen, select Self if only one source is enabled for DSK keyer, which is Key source and select Split if two sources are enabled for DSK keyer, which are Fill and Key sources.

  • Page 21: Still

    Still Still allows the user to load images from the memory, save images to the memory, and save the images captured. Start Load Still Still Load Freeze Keyer P-In-P Save Still Freeze Save Still Still Freeze Live 2 Live 3 Live User Live...

  • Page 22: User

    User In this option, the user is allowed to load previously saved settings and save the currently configured settings. Start Load Mem Memory Load Keyer P-In-P Save Mem Memory Save Still User Inputs Setup Load Memory Use the up/down arrow to scroll to the desired memory location and load the saved setting by selecting “Load” Save Memory Use the up/down arrow to scroll to the desired memory location and save the current setting by selecting “Save”...

  • Page 23: Inputs

    Inputs This feature allows the user to configure the color of the Inputs 1-4. In addition, the user is also allowed to shuffle the contents between Inputs 1-4, Still and Freeze. Start Input 1 Black 0 White 100 Chrom Keyer Input 2 Black 0 White...

  • Page 24: Setup

    Setup Setup allows the user to perform basic output configuration such as Outputs, Audio, GPI Out and Resolution. Start Outputs PGM Out PGM Out MultiView Keyer P-In-P Audio SDI 1 On SDI 2 On HDMI Still GPI Out Off Mode Pulse Width User Input 1 Delay...

  • Page 25: Firmware Upgrade

    Firmware Upgrade 1. SE-700 Control Panel Firmware Update (main unit connected) 1. Locate the FW Upgrade USB port on the back panel of the SE-700 and connect the USB port to the computer 2. Power on the device and the computer should automatically detect the connected USB device 3.

  • Page 26: Frequently-Asked Questions

    Frequently-Asked Questions This section describes problems that you may encounter while using the SE-700. If you have questions, please refer to related sections and follow all the suggested solutions. If problem still exists, please contact your distributor or the service center.
  • Page 27 2. Borders of screens of the multiscreen assigned to PIP/Keyer/DSK will be lit with a color. The user is prompted of the warning of The user should delete the original firmware file insufficient volume capacity while updating first before copying the new firmware file to the firmware on WIN8 Operating System.

  • Page 28: Specifications

    Specifications Connections Total Video Inputs 2 HDMI( ver1.3a) + 2 SDI Total Outputs 1 HDMI (Ver 1.3a ) + 2 SDI SDI Video Input 2 ( 1080i / 720p ) 2 x HDMI(RGB/YUV) HDMI Video Input 1080i / 1080p / 720p SDI Audio Output (PGM output) Analog Audio Input 2CH XLR...
  • Page 29 Color Space 4:2:2 YUV HDMI Input Resolutions for 1280 x 720 59.94Hz 50Hz (720P) and Computers 1920 x 1080 59.94Hz 50Hz (1080p & 1080i) Processing Colorspace Conversion Hardware based real time Processing Delay < 1 frame selectable audio follow video Audio Mixer master gain control Extras...
  • Page 30 Routable Windows Y (Follow XPT) Tally Windows Source Labels...

  • Page 31: Service And Support

    Service and Support...
