Summary of Contents for Anyload 805HP

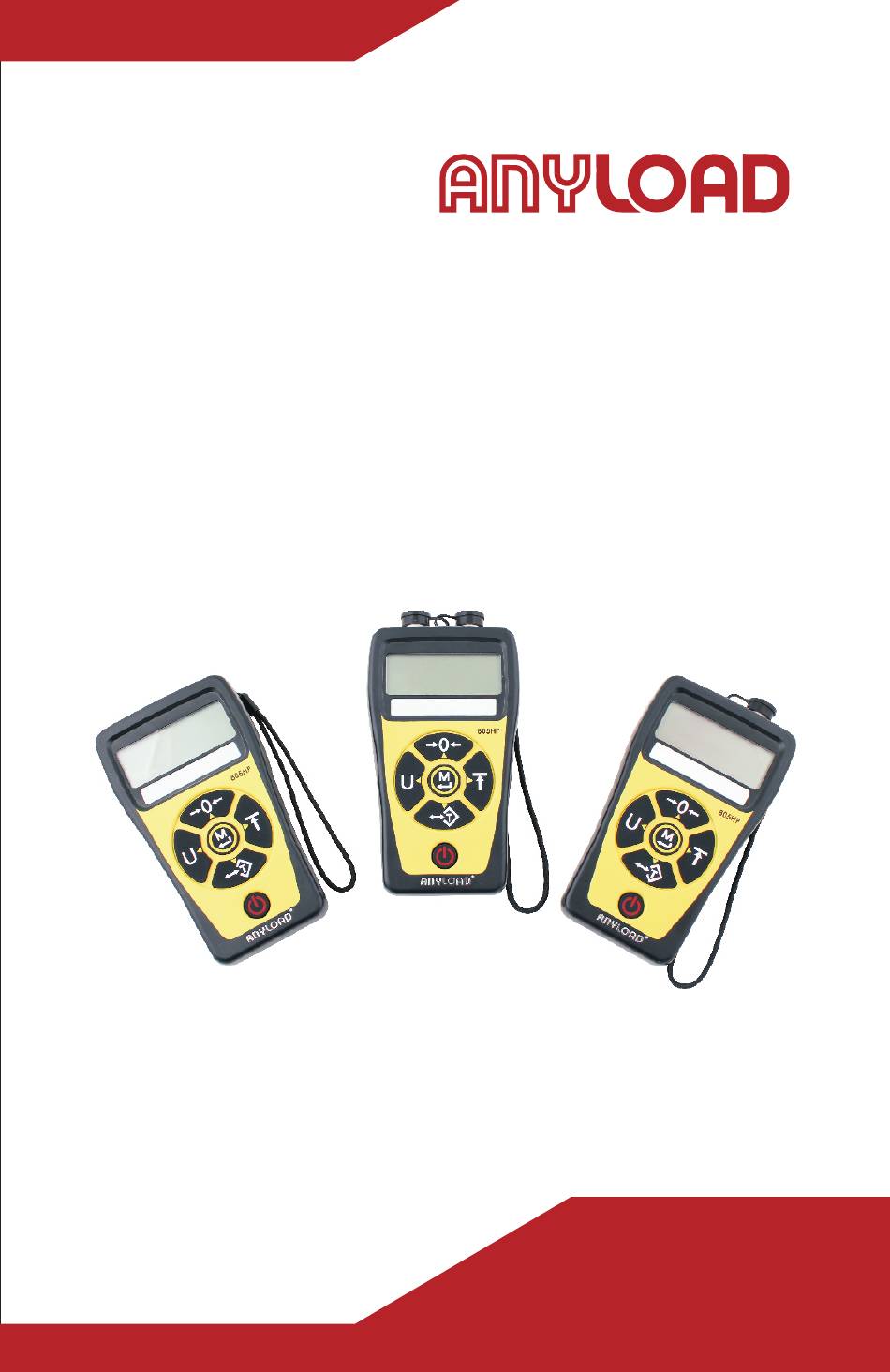

- Page 1 ® 805HP Handheld Digital Weight Indicator User’s Manual (V1710) Anyload Transducer Co.Ltd Website: www.anyload.com Email: info @ anyload.com...
-
Page 2: Table Of Contents
10. Calibration and Parameter Settings 10.1 Standard Value Calibration 10.2 Digit Calibration 11. Troubleshooting Guides 12. Technical Specifications 13. Appendices 13.1 Seven-segment digital display alphanumeric table 13.2 Gravitational acceleration in different countries ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) -
Page 3: Introductions And Features
805HP can drive up to eight 350 or thirty two 1000 load cells. With an IP65 ABS wash down enclosure, the 805HP digital weighing indicator is ideal for use in Transportation, Entertainment, Aerospace, Military, Food and Agricultural industry. Key Features include: ×... -
Page 4: Display Icon List
Signal stability There are hidden figures which can be shown on the following page Refer to Section 13 (Appendices) for detailed on alphanumeric symbols. (Appendix 13.1-Seven Segment digital display alphanumeric table) ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) -
Page 5: Keys
® 4. Keys 4.1 Key List Functions Power Button Tare; Down key Unit; Left key Zero; Up key; Return key Peak; Right key Cumulate; Enter key ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) -
Page 6: Key Instructions For All Weighing Modes
Tare / Untare (0.5 sec) Long Press Gross / Net Gross / Net 【TARE】 (2 sec) Weight Weight Short Press Switch units Switch units (0.5 sec) Long Press (2 sec) 【UNITS】 ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) -
Page 7: Work Modes
Long press on/off button for 2-3 seconds No operation in setting time Long press on/off button for 2-3 seconds Any button can wake up Power- Weighing saving Mode No operation in setting time ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) -
Page 8: Start Up And Adjust
Ø Power off: Long press on / off button for 2-3 seconds then release it. The screen shows OFF, the indicator is turning off. 6.2 Indicator Dimensions ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) - Page 9 ® (Unit) inches ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710)
-
Page 10: Connection Diagrams
® 6.3 Connection Diagrams 6.3.1 805HP Wired Model Connect load cell (communication & printer) to 805HP according to the following connection diagram: AVAILABLE OPTION Communication & Printer Sense- Yellow Shield Load Cell Exc+ Red Sig+ Green Exc - Black Sig - White... -
Page 11: 805Hp Wireless Model
6.3.2 805HP Wireless Model The indicator is set to match the corresponding wireless transceiver of a wireless scale. Usually 805HP-WL wireless model is paired with Anyload 110RH-WL TENSLINK scale or 110ES-WL Salt Waterproof scale. If you need to change the indicator’s wireless configurations due to radio frequency interference, you can... -
Page 12: Normal Weighing Mode
【TARE】, the tare weight will and wait until [Stable mark] appears. Press be stored. The display is in Net weight when [Tare mark] is displayed and [Gross weight mark] is off. 11 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) -
Page 13: Gross / Net Mode
This mode is typically applied to a system when recording the peak reading of weights. 【 HOLD】 and [Peak mark] To activate Peak Weighing Mode, long press appears I. Peak / Normal Weighing Mode ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) | 12... -
Page 14: Cumulate Mode
The recently saved weight readings will be displayed in the screen after one second. The sign appears in the lower left corner of the screen. This means that weight data are recorded and be accumulated. 13 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) -
Page 15: Calibration Mode
7.5 Calibration Mode In this mode, you have to enter the menu and parameter settings module. (Refer to Section 10 for the Calibration of the scale system) ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) | 14... -
Page 16: Configurations And Menu Operations
Short press Choosing digit → Short press Increasing the numerical value of the digit. → Short press Decreasing the numerical value of the digit. The default password is: P00805. 15 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) - Page 17 Press to save the input values and exit. ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) | 16...
- Page 18 Unit Klb mode) on/[off](related to the software Unit N mode) on/[off](related to the software Unit kN mode) on/[off](related to the software User’s unit mode) 17 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710)
- Page 19 Rated Any Number Weighing 4.17/6.25/8.33/ Sampling [10]/12.5/16.7/ speed/Hz 33.2/50/62/123 (Weighing Stability coefficient Judgement 0.5/[1]/2 setting) times/s 0.1/0.2/0.3/0.4/ Stability [0.5]/0.75/1/1.25 Judgement /1.5/1.75/2/2.5/3 range/d /3.5/4/5 Acceleration Any Number of gravity value ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) | 18...
- Page 20 Any Number calibration A/D code manually Serial com- on/[off] munication Baud rate/ [1200]/2400/ 4800/9600 Output DB [8n1]/8o1/8e1 (RS232 See: note2 setting) Com- [Contin]/reque munication See: note3 mode 19 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710)
-
Page 21: Overload
1. This indicator records the real time overload situation. When load weight exceeds the overload alarm set value, the background light flashes (if background light is enabled), the panel shows (warning), the display flashes, and shows the error message ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) | 20... -
Page 22: Modify Password
Details are as follows: 21 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) -
Page 23: Communication
® 9. Communication The 805HP indicator has two ways in communicating to the scale: 9.1 RS232 Communication The indicator has a standard RS-232 serial output interface to connect to large screen monitors, computers or other peripherals. Its effective connection cable length is 15 meters and beyond this length may lead to a high error rate. -
Page 24: Wireless Communication
If you need to change the indicator or wireless transceiver, or because of radio frequency interference, you can configure the communication parameters to re-obtain high-quality communications in the following steps: 23 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) - Page 25 When the power settings are successful, the indicator displays PASS. When the power setting fails, the indicator displays FAIL. Switching command can be executed repeatedly until switched successfully. ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) | 24...
-
Page 26: Calibration And Parameter Settings
● Calibrated point A/D count ● Zero offset value (Zero offset can be re-corrected when using hooks or chains to hang the test weights.) The following describes calibration procedures for Standard Value Calibration: 25 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) - Page 27 A/D count of zero and span calibration with the Digit Calibration method. ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) | 26...
- Page 28 Load test weights short press input the repeat calibrate standard values other values short press end calibrate short press short press short press Load test weights 27 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710)
-
Page 29: Digit Calibration
5) The indicator shows . Press and the indicator will show . Press to input the new Span A/D count. Press again to save and finish the digit calibration. ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) | 28... - Page 30 A/D count short pr ess 29 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710)
-
Page 31: Troubleshooting Guides
805HP (Wired Indicator) Indicator) Electrical Performance: Frequency-16 available Wired with RS-232 channels to avoid Link Connection/Interface compatible interface interference (duplex) ±0.001%F.S. Max Non-linearity ±10nV / ℃ Zero Temp. Drift ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) | 30... - Page 32 Overload protection Overload warning and alarm can be enabled or disabled. Overload alarm peak records can be reviewed. 21 set-points calibration, Zero scale, Tare, Low Functions battery warning, Peak-hold. 31 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710)
- Page 33 Unit Switch Gravity Acceleration Switch Tare set Total / Delete / Clear Total View Total Resolution Switch Auto- Off Set Idle Set Tare Range 100% F.S. 4% F.S. Zero Range ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) | 32...
-
Page 34: Appendices
Panama 9.7814 9.7889 Peru 9.7829 Brazil Brasilia Lima Philippines Canada Montreal 9.8069 Manila 9.7844 Ottawa 9.8069 9.8159 Poland Swider Portugal Toronto 9.8054 Lisbon 9.8009 Vancouver 9.8099 Rumania 9.8054 Bucharest 33 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) - Page 35 Japan Los Angeles Mishima 9.7979 9.7979 Korea 9.7994 9.8024 Seoul New York Philadelphia Kuwait Kuwait 9.7919 9.8024 Beirut 9.7964 9.7994 Lebanon Francisco Mauritius Port Louis 9.7859 Venezuela Caracas 9.7829 ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1710) | 34...
- Page 36 Anyload Transducer Co. Ltd. Website: www.anyload.com Email: info@anyload.com Fax: +1 866 612 9088 North America Toll Free: 1-855-ANYLOAD (269 5623)
