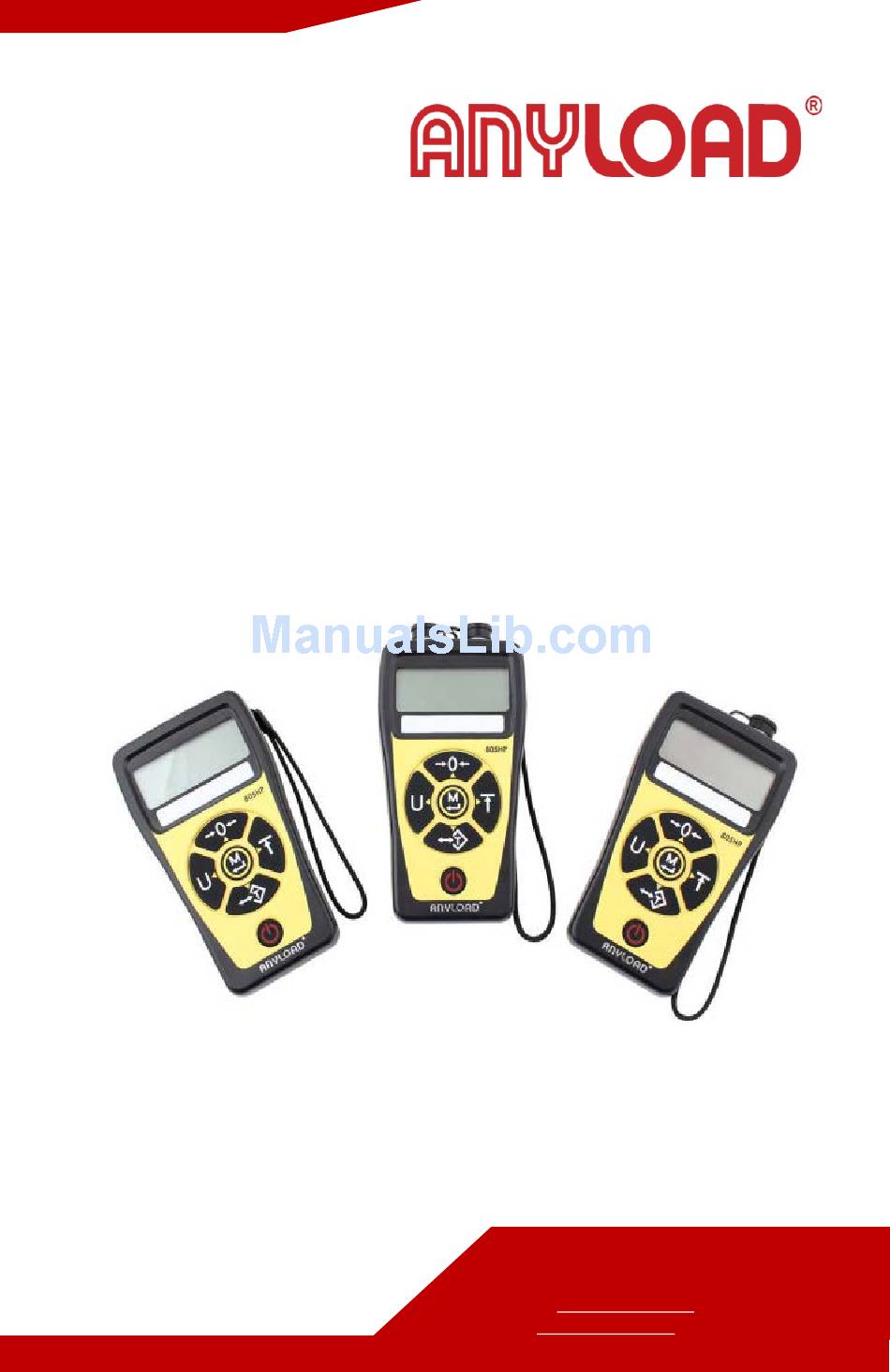

- Page 1 805HP Handheld Digital Weight Indicator Operations Manual (V1612) Anyload Transducer Co. Ltd Website: www.anyload.com Email: info@anyload.com...
-
Page 2: Table Of Contents
8. Configurations and Menu Operations 8.1 Menu Operations 8.2 Overload 8.3 Modify Password 9. Communication 9.1 RS232 Communication 9.2 Wireless Communication 10. Calibration 10.1 Weight Calibration 10.2 Digit Calibration 11. Troubleshooting Guides 12. Technical Specifications ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) -
Page 3: Introduction And Product Features
The 805HP hand held digital weight indicator is a general purpose durable indicator that provides high accuracy, reliability, and multiple functions. The 805HP can drive up to eight 350Ω or thirty two 1000Ω load cells. With an IP65 ABS wash down enclosure, the 805HP digital weighing indicator is ideal for use... -
Page 4: Display Icon List
Short press Long press Turn Off Turn Off 【SWITCH】 Short press Accumulate Add weight to Enter memory Long press Go to Return to Add/Delete Cumulate normal decimal 【CUMULATE】 Mode weighing point mode ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) -
Page 5: Operation Mode
Long press Go to Peak Return to Mode Normal Weighing Mode Short press Tare/Untare Gross/Net Cumulative Value 【TARE】 Long press Short press Switching Show the units highest five digits Long press 【UNITS】 Operation Mode ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) -
Page 6: Start Up
LCD is on, but backlight is off. RS-232 circuit shut down. Start Up 6.1 805HP Wired Model Connect load cell (communication & printer) to 805HP according to the following connection diagram: ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) -
Page 7: 805Hp Wireless Model
Normal Weighing mode. It can be set to various modes like Peak mode, Gross/Net Mode or Cumulate Mode 7.1 Normal Weighing Mode When indicator is set to the Normal Weighing mode, (Peak mark) will not appear in the display ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) -
Page 8: Gross/Net Mode
(Gross Weight mark) appears when in gross weight mode. (Gross Weight mark) disappears when in net weight mode. 7.3 Peak Mode To activate Peak Weighing Mode, long press →【HOLD】and (Peak mark) appears ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) -
Page 9: Cumulate Mode
Press ↓【TARE】, indicator changes from Gross mode to Net mode, or vice versa. Display shows total gross weight value while (Gross Weight mark) appears. Display shows total net weight value while (Gross Weight mark) disappears ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) -
Page 10: Calibration Mode
The password is Press directional ←,→,↑,↓ to input the passwords, and press ↙ to enter the configuration menu. If invalid password is entered, display will re-enter weighing mode. ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) - Page 11 ↑,↓ are used to increase and decrease the value of the selected digit. Press ↙ to save the input values and exit 10 | ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612)
- Page 12 In the actual menu structure, the selected menu item is displayed horizontally. parameter value with the symbol〔〕is the default value of system reset. 11 | ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612)
- Page 13 12 | ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612)
-
Page 14: Overload
Press ↙ key to start modification, press the arrow keys ←, →, ↑, ↓ enter the new password, press ↙ key again to save, press ↑ key to return to the previous menu. 13 | ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) -
Page 15: Communication
Communication The 805HP indicator has two ways in communicating to the scale: 9.1 RS232 Communication The indicator has a standard RS-232 serial output interface to connect to large screen monitors, computers or other peripherals. Its effective connection cable length is 15 meters and beyond this length may lead to a high error rate. -
Page 16: Wireless Communication
PASS. If the channel search fails, the indicator displays FAIL. Check if the wireless transceiver power supply is normal, if the communication distance is too far, and if radio frequency interference exists. 15 | ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) -
Page 17: Calibration
10. Calibration and Parameter Settings The following are the requirements in calibration: • The scale can only be recalibrated using the 805HP indicator. The scale and indicator shall established a stable communication Test Weights •... - Page 18 Suggestion: When calibration is finished, record the A/D count of zero and span calibration, so that you may re-calibrate your indicator simply by entering the recorded A/D count of zero and span calibration 17 | ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612)
-
Page 19: Digit Calibration
PROBLEM POSSIBLE CAUSE SOLUTION No display in the Defective battery Replace indicator Defective button/s Requires authorized service Power button not Press and hold properly pressed ON/OFF key for three 18 | ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) -
Page 20: Technical Specifications
Load cell Excitation 1.22Vdc Voltage Power Supply 3 x AA 1.5V alkaline batteries Power Consumption Tested with 2200mAh alkaline batteries ≥500 hour with 380Ω load cell in idle mode 19 | ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612) - Page 21 Yes ( with Peak Hold ) Low Voltage Alarm Battery Supervision Overload Alarm / Record 2 Alarm Set Point ( Lower and Higher ) - records overload Calibration 2-set-points calibration is required for linearity 20 | ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612)
- Page 22 Tare Set Total / Delete / Clear Total View Total Resolution Switch Auto-Off Set Idle Set Tare Range 100% F.S. Zero Range 4% F.S. Operation Temperature (-20°C ~50°C) (-4°F~122°F) Range 21 | ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612)
- Page 23 22 | ANYLOAD 805HP Handheld Digital Weighing Indicator Operations Manual (V1612)
- Page 24 Anyload Transducer Co. Ltd Website: www.anyload.com Email: info@anyload.com Fax: +1 866 612 9088 North America Toll Free: 1-855-ANYLOAD (269 5623)
