Summary of Contents for Anyload DD-KC1

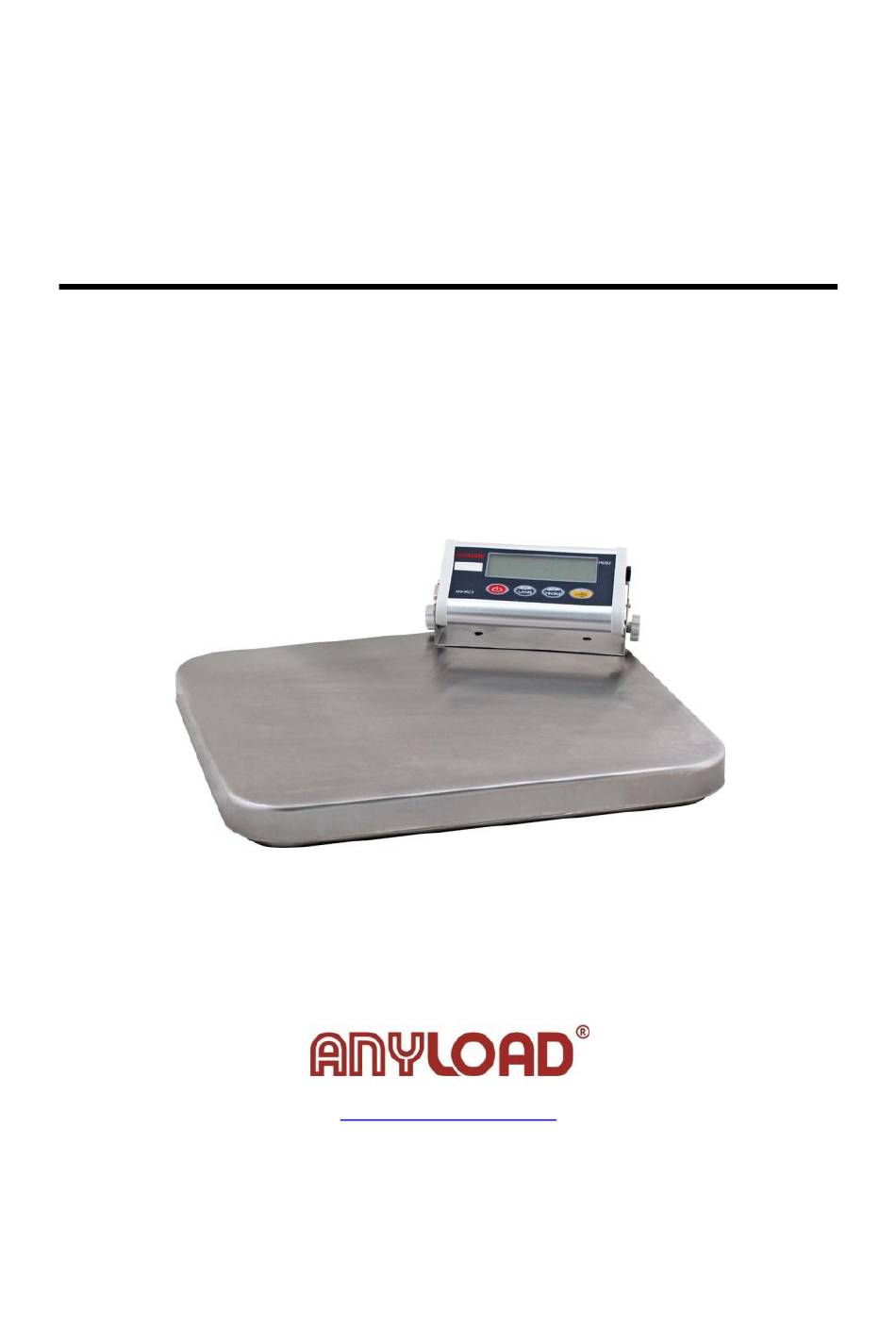

- Page 1 DD-KC1 Digital Weight Indicator Instruction Manual www.anyloadgroup.com Page 1 of 11 Anyload-manual-indicator-DD-KC1-en-101...
- Page 2 Battery： Open the battery cover which is on the right of the Display Indicator, load 4 x AAA alkaline cells into the cell box (note the polarity) and then close the battery cover. Empty the platform, press button once, it will show all the characters then Page 2 of 11 Anyload-manual-indicator-DD-KC1-en-101...
- Page 3 1. Turn off the scale, then hold the three buttons: at the same time until the screen displays “------”； 2. Press button to go through the menu； 3. Press button to enter the display menu.； Page 3 of 11 Anyload-manual-indicator-DD-KC1-en-101...
- Page 4 After making sure that there is nothing on the platform, press button to confirm so that the scale begins“0.0kg”calibration. In the process of “0.0kg”calibration, “0.0kg” will flicker rapidly on the display window；keep the platform calm, stable, and without other interference factors which will influence Page 4 of 11 Anyload-manual-indicator-DD-KC1-en-101...
- Page 5 If the weighing keeps stable exceeding 2s, the scale will finish zero calibration automatically, and then it will begin the next Page 5 of 11 Anyload-manual-indicator-DD-KC1-en-101...
- Page 6 4.8 Counting Sample a. During counting mode, remove unrelated objects on the platform, then press button to revert to zero; button to switch the unit into “PCS”, and the window will display b. Press Page 6 of 11 Anyload-manual-indicator-DD-KC1-en-101...
- Page 7 Baud Rate=9600，without parity digit, sent stop bit 1 (The serial connection diagram is omitted）; b. Open the serial communication software, for example, “HyperTerminal” in Page 7 of 11 Anyload-manual-indicator-DD-KC1-en-101...
- Page 8 “------”； b) Press the button to switch the menu； c) Press the button to enter the display menu； d) After entering the display menu, press the button to select the Page 8 of 11 Anyload-manual-indicator-DD-KC1-en-101...
- Page 9 1. Load the weight value not loaded according to the display according to the show value. when calibrating. Load quantity 2. The quantity of objects is not according to the show value. loaded according to the quantity of Page 9 of 11 Anyload-manual-indicator-DD-KC1-en-101...
-
Page 10: Troubleshooting
Do not put objects on the platform, data-reading zero before using. press button, and then begin The scale is not calibrated. to weigh. Re-calibrate. False calibration The calibration weight is not Use the precise calibration weight. precise. Page 10 of 11 Anyload-manual-indicator-DD-KC1-en-101... - Page 11 110 or 220V 50/60Hz AC adapter (included); Or 4 AAA batteries www.anyloadgroup.com North America Toll Free: 1-855-ANYLOAD (269 5623) Fax: 1-866-612 9088 info@anyloadgroup.com notice © 2015 ANYLOAD All rights reserved. Dimensions and specifications subject to change without Page 11 of 11 Anyload-manual-indicator-DD-KC1-en-101...
