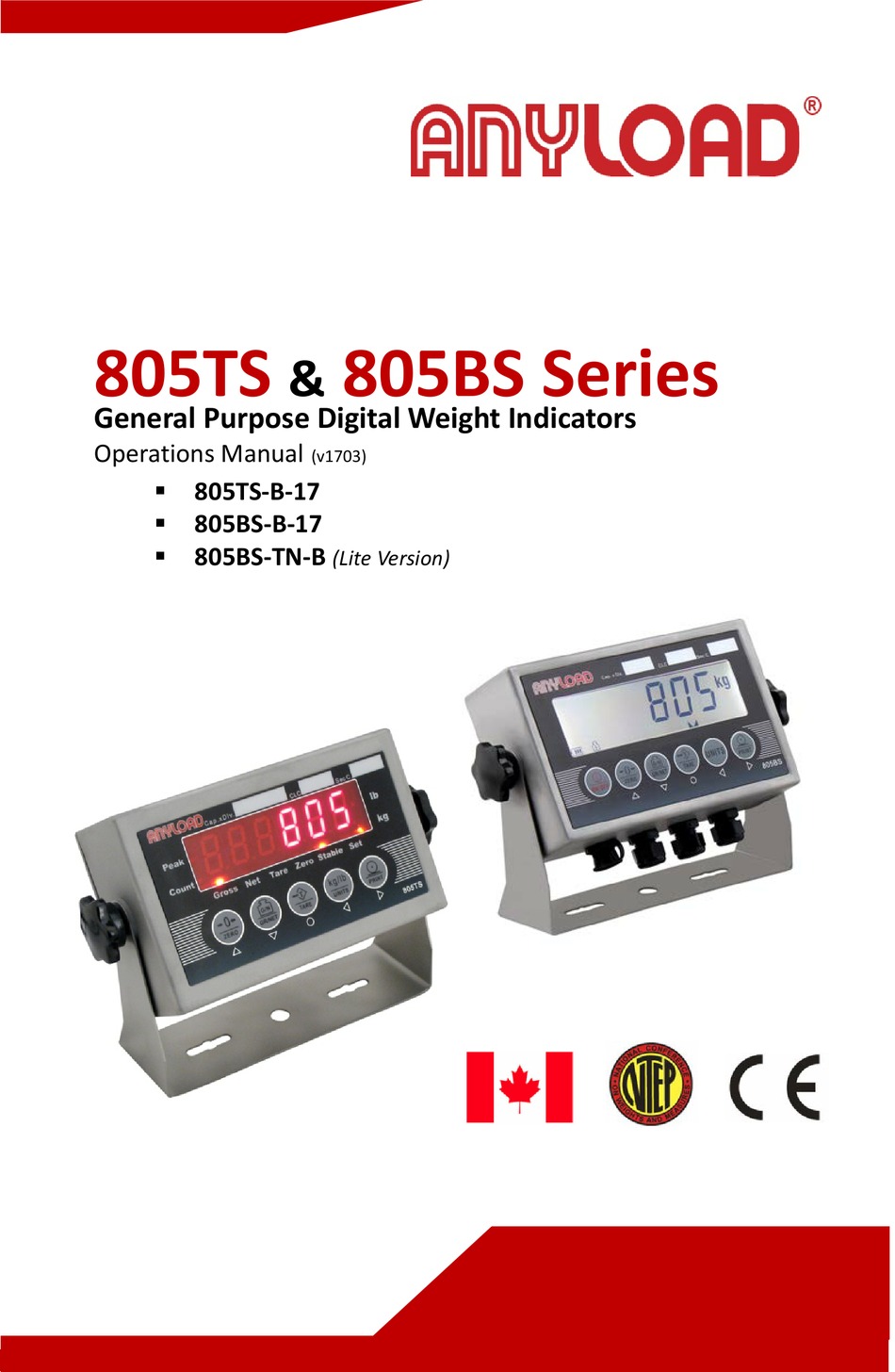

  • Page 1 805TS 805BS Series & General Purpose Digital Weight Indicators Operations Manual (v1703)  805TS-B-17  805BS-B-17  805BS-TN-B (Lite Version)

  • Page 2: Table Of Contents

    8.1 DC power supply 8.2 SW2 Switch 8.3 KOUT: Relay signal outputs 8.4 SW3: Output: RS485/COM 8.5 SW4: Output: USB/RS232 8.6 Load Cell Input 8.7 COMM: Serial Communication port 8.8 Printers 9. Configurations ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 3 15.2.1 Find out indicator software version 15.2.2 Restore Factory Setup Parameters 15.2.3 Enabling Password Function 15.2.4 Basic Configurations of Indicator 15.3 Technical Specifications 15.4 ASCII Codes Table 15.5 Indicator Display Characters ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 4: Introduction

    Improper operation and fault indication Normal Weighing mode, Peak mode and Count mode functions 2 way relay signal output ( not available in 805BS-TN-B Lite Version ) Zero Scale, Tare mode, Gross/Net weight selections Equipped with RS232C and RS485 connecting port with options for Data...

  • Page 5: Safety Recommendations

    Before inserting the power adapter, the user must ensure that the operating voltage stated on the power adapter agrees with the mains voltage. If not, please contact Anyload Customer Service. ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 6: Operation Modes

    Remove the back panel of indicator (refer to Fig 8.1 Sockets on Circuit Board). Switch on SW2 jumper located at the lower corner. Indicator will be in Configurations mode and display shows “F1”. Refer to Section 9 for details. ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 7: Front Panel Keypad

    Signs at the bottom of the keypad are for configuration operation use (refer to Section 9 for details). The signs are for inputting item codes in Count Mode (refer to section 7.3 for details). ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 8: Indicating Lights

    (<1/4d). “Tare”—— Light is on when Tare “ ”—— Tare, The symbol is setting is not zero displayed when Tare setting is not zero ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 9: Start Up

    Normal Weighing mode. For the 805BS series(F5.1=0), both “Peak” and “Count” symbols won’t appear in the display. Indicator is in Normal Weighing mode. Basic operations in Normal Weighing mode: 7.1.1 Gross/Net Mode ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 10: Gross/Net Mode

    (805BS series)(refer to F6.1 Menu). 7.1.6 Print Ensure that the “Stable” indication is on, then press 【PRINT】. Data from indicator is then transmitted to a serial printer for printing. After each printing, ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 11: Peak Mode Operations

    When “Set” light is off (805TS) or “Set” symbol is not displayed (805BS), Peak mode is deactivated. The value shown on the display changes according to the load applied to the load cell. 10 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 12: Remove Peak Mode Value

    The “Gross” light is on (805TS series) or the “Gross” symbol is displayed (805BS series) when in Gross mode and the “Net” light is on (805TS series) or the “Net” symbol is displayed (805BS series) when in Net mode. 11 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 13: Gross/Net Mode

    “P= xx”, where xx is the code number of the current count item and x flashes. Now the functions of the keypad become ， ， ， ， 12 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 14: Printing In Count Mode

    - Combine a few count items to become one count item. Place the same quantity of count items to the scale as per the 13 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 15: Wire Installation

    Fig. 8.1 Sockets on Circuit Board for 805TS & 805BS series Note: When connect to 4-wire load cell, please turn SW1 ON. When connect to 6-wire load cell, please turn SW1 OFF. 14 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 16: Dc Power Supply

    RS485 output mode is turned ON (left), the RS485 output mode is activated; otherwise the COM output mode is activated. Note: Only 805TS-B-17 & 805BS-B-17 have this option ( not equipped in 805BS-TN-B ). 8.5 SW4: Output: USB/RS232 SW4 switch is used to switch between output USB and RS232 mode. When USB output mode is turned ON (left), the USB output mode is activated;...

  • Page 17: Load Cell Input

    Menu item of Level 1 Submenu. When configuration is completed, turn off the SW2 switch to exit from  Configuration mode. ( Refer to Section 15.2.4 for Basic Configurations ) 16 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 18: Front Panel Configurations

    See Section 9.2.7 and Appendix 15.2. PFormat Set print format. See Section 9.2.8 and Section 13. Fig. 9.1.1 Keypad functions in Configuration Mode for 805BS series 17 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 19: Menu Structure And Parameters Descriptions

    ， parameters. are for moving up and down through different level ， menus. is for confirming a choice of parameter in a menu. 18 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 20 Fig 9.1.4, directional keys are used to edit the digit selected, and to increase or decrease the value of the selected digit. Fig. 9.1.4 Editable Parameter 19 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 21: F1 Configuration Menu

    9.2.1 F1 Configuration Menu Fig. 9.2.1.1 F1 (Configuration) Menu Structure 20 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 22 When F1.4 is selected OFF, F1.2 should also be set to OFF. Overload. Determines the 0（FS+2%） F1.5 point at which the display 1（FS+1D） shows “OF” indicating the （Overload） 2（FS+9D） √ 21 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 23 805BS-TN-B ） the indicator to zero the scale and saves current zero for next powering up. Note: Parameters that are in check are the default parameter values. 22 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 24: F2(Format) Menu

    Primary unit. （Primary 1（kg）√ Unit） Note : P stands as Primary (P=kg, A=g) Unit while A as Assistant Unit (P=kg, A=oz) (P=kg, A= lb:oz) (P=lb, A=kg) (P=lb, A=g) 23 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 25 Primary unit. 1（88888.8）√ Note: If F2.4=5, and on during （Primary 2（8888.88） calibration in step F3.2 to edit Unit 3（888.888） the test weight value, you can Decimal Point 4（88.8888） 24 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 26 1 (5s) models) -The update rate for both Not available 805TS and 805BS is 20ms or 2 (10s) √ in 805BS-TN- 50Hz. 3 (30s) 4 (60s) 5 (always 25 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 27: F3(Calibration) Menu

    (WValue) has been set. Refer to Section 10. F3.2 Display and edit the test — weight value, the value （WValue） entered must above 100. Refer to Section 10. 26 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 28: F4(Serial) Menu

    Use this parameter only after F3.1 (WZero) and F3.3 (WSpan) have been set. Refer to Section 10. 9.2.4 F4 (Serial Interface) Menu Fig. 9.2.4.1 F4(Serial) Menu 27 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 29 1(comm) is for transmission upon receiving commands. It must be set to 1 to use print function. Refer to Section 14. F4.4 0 √ Select address of serial port. （Address） 28 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 30: F5(Mode) Menu

    Specifies the item code number of (Counted Item number counted items. Allowable numbers Code) are 0 to 99. Refer to Section 11 for description of the setting of the counted item code. 29 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 31: F6(Relay) Menu

    Level 2 Submenu 0 (NTEP) √ For OIML, NTEP and CANADA F6.1 application, Tare removal is only 1 (OIML) allowed when Gross = 0. When （mode） 2 (CANADA) 30 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 32 Note: If F6.4 = 0 & F6.1 = 3 (none), SW2 switch is still used to enter and exit calibration menu. If F6.4 ˃ 0 & F6.1 = 3 (none) and SW2 switch is ON, password is required for entering and exiting calibration menu. 31 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 33: F7(Ver) Menu

    This （Version） value cannot be altered. F7.4 Date Format setting for the date is: “DD.MM.YY” （DATE） F7.5 Time Setting of time as “HH.MM.SS” （TIME） 32 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 34: F8(Pformat) Menu

    10. Calibration The calibration of these indicators consists of the following calibration procedures: Zero calibration Providing the test weight or known weight and its weight value Span calibration 33 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 35 (display shows “F1”). Remove all weights from the scale platform. If the test weights require hooks or chains, place the hooks or chains on the scale for zero calibration. 34 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 36 This A/D count ( usually a 6-digit count ) can be used if recalibrating the indicator using the Digit Calibration Method. Do not adjust this value. Press to save the value and to return to 35 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 37 Press show the A/D count of the original or previous re-zero calibration. Modify and enter the A/D count 6-digit value for your recorded 36 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 38: Count Items Average Weight Setup

    The indicator can be set up for up to 100 count items. The count items setup consists of the following procedures: Item code Zero scale Sample quantity Confirming Count Items Average Weight 37 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 39 When completed, there are two (2) possible outcomes : The average weight is too small and display shows “—E5—“.  Press to return to F5.5 Menu and display shows “F5.5”. There 38 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 40: Relay Output Setup

    （1） Turn on the SW2 switch to set indicator to the Configuration mode (display shows “F1”). （2） Press until display shows “F6” (see Fig. 12.1). Press to go to 39 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 41 F6.1 Menu. Display shows “F6.1”. （6） Turn off the SW2 switch to exit from Calibration mode and enter into Weighing Mode. Fig. 12.1 Relay Output Menu 40 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 42: Print Format

    2 print formats via the serial port output Gross weight print format Net weight print format After confirming print format GFMT and NMFT, press 【PRINT】 for printing operation. 41 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 43: Print Format Commands

    1-99. If nn is not specified, 1 is assumed). <E> Command to complete print format setting. If a command is not ended with the <E> command, indicator is operated without print mode. 42 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 44: Gfmt And Nfmt Print Format Input

    23.5 LB TARE <N>NET<NL> 4543.7 LB NET 13.2 GFMT and NFMT Print Format Input Setting of GFMT and NFMT is as follows: Fig. 13.2.1 Print Format Input Flow Diagram 43 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 45: Default Formatting

    Note: When inputting characters, display shows characters as per Table 13.2. “_“ is shown for unavailable characters. 13.3 Default Formatting （1） Turn on the SW2 switch to set indicator to the Configuration mode and display shows “F1”. 44 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 46: Print Consecutive Number

    F7.2 is used to set the initial consecutive number. Refer to F7.1 Menu and F7.2 Menu for details. Detailed Setup Procedure: Fig. 13.4 Consecutive Numbering Setup 45 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 47: Date And Time Settings

    （6） Turn off the SW2 switch to exit from Calibration mode and enter into Weighing Mode. 14. Serial Communication Indicator has the following two serial communication modes: Continuous transmission Transmission upon request (from an external PC) 46 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 48: Continuous Transmission

    “F4” (see Fig. 8-1). Press Press go to F4 Menu. Display shows “F4.1”. When display shows “F4.1”, press until display shows “F4.4”. When display shows “F4.4”, press to show serial 47 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 49: Transmission Upon Request

    Fig. 8-3 and Fig. 8-4. When receiving a command, the indicator sends “OK” after transmitting the requested data. The indicator sends “??” if it receives undefined or incorrect request or command 48 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 50: Data Transmission Sequence

    Fig. 14.2.1 Transmission Format from PC Example: Set BLACK to “G” (which is 47H) in ASCII code. Inspection and BCC calculation are as follow: ASCII “OR” with 30H 49 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 51: Communication Command

    14.2.2.1 Transmit Current Weight Value Command data from PC<BLACK> Format: G (ASCII 71) Response data from indicator<BLACK> Format see Fig. 14.2.2.1 Fig. 14.2.2.1 Respond to<BLACK>data after receiving G command 50 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 52: Serial Communication Test

    PC command data <BLACK> format: Z（ASCII 90） Indicator receives correctly and responds data <BLACK> =“OK” Example: PC sends command to indicator to zero scale PC sends：01H，31H，02H，5AH 03H，79H ， Indicator responds：01H，31H，02H，4FH 03H，37H ， ， 51 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 53: Appendices

    – – EL – – connecting cables – – OF – – Load value>F1.5 Set value Reduce load on scale 15.2 Software Version and Default Configuration Parameters Fig. 15.2.1 F7(Ver) Menu 52 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 54: Software Version And Default Configuration Parameters

    F7.6 Menu. Display shows “F7.6”.  If input code is incorrect, display shows “Err”. Then there are 2 options:  Press , display shows a 4 digit code “==0000”. 53 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 55: Enabling Password Function

    If ever the user forgotten the password, input ”26956” to reset the password to 00000 and deactivate the password function. To re-enable the function, switch to Configurations Mode and follow the instructions above from 1 to 6. 54 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 56: Basic Configurations Of Indicator

    8. Once calibration is successfully done, switch the SW2 jumper switch to return the indicator to Weighing Mode. Note: Refer Section 15.2.3 for enabling the Password function 55 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 57: Technical Specifications

    Up to 28VDC (2A) & up to 240VAC (1A) Load Cell DC 5V can be connected to 16 cells of not less than Bridge 700Ω or 8 cells of not less than 350Ω Voltage 56 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 58: Ascii Codes Table

    15.4 ASCII Codes Table 57 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)

  • Page 59: Indicator Display Characters

    15.5 Indicator Display Character 58 | ANYLOAD 805TS & 805BS Series Weighing Indicator Operations Manual (v1703)
  • Page 60 Anyload Transducer Co. Ltd Website: www.anyload.com Email: info@anyload.com Fax: +1 866 612 9088 North America Toll Free: 1-855-ANYLOAD (269 5623)
