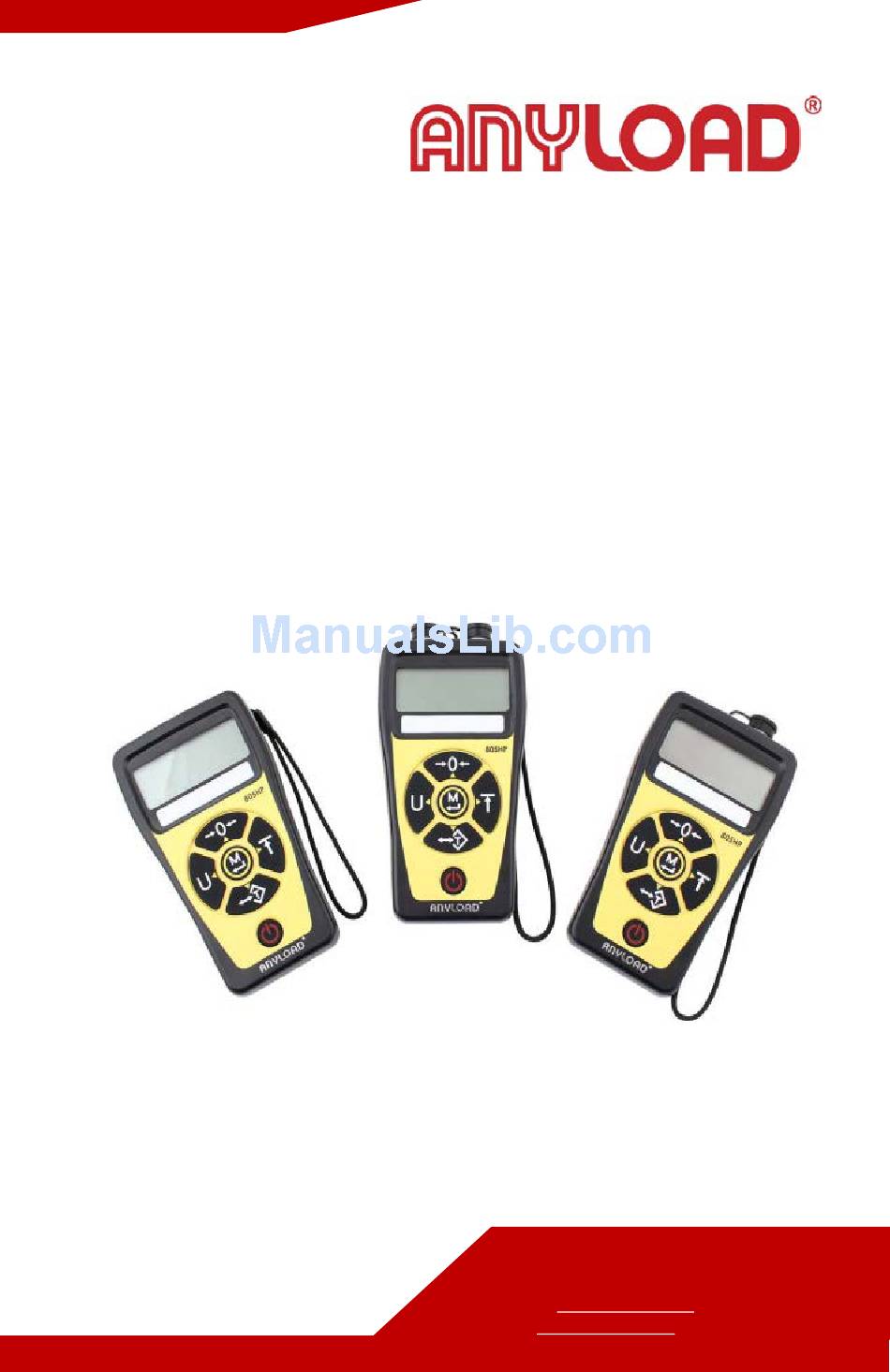

- Page 1 805HP Handheld Digital Weight Indicator User’s Manual (v1703) Anyload Transducer Co. Ltd Website: www.anyload.com Email: info@anyload.com...
-
Page 2: Table Of Contents
8.3 Modify Password 9. Communication 9.1 RS232 Communication 9.2 Wireless Communication 10. Calibration and Parameter Settings 10.1 Standard Value Calibration 10.2 Digit Calibration 11. Troubleshooting Guides 12. Technical Specifications 13. Appendices ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 3: Introductions And Features
The 805HP hand held digital weight indicator is a general purpose and durable indicator that provides high accuracy, reliability and multiple functions. The 805HP can drive up to eight 350Ω or thirty two 1000Ω load cells. With an IP65 ABS wash down enclosure, the 805HP digital weighing indicator is ideal for use in Transportation, Entertainment, Aerospace, Military, Food and Agricultural industry. -
Page 4: Display Icon List
Wireless signal strength Load cell battery power indicator Weight exceeded the maximum capacity “overload warning value “signal Signal stability There are hidden figures which can be shown on the following page ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 5: Keys
( Appendix 13.1-Seven Segment digital display alphanumeric table ) Keys 4.1 Key List Functions Power Button Tare; Down key Unit; Left key Zero; Up key; Return key Peak; Right key Cumulate; Enter key ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) - Page 6 Mode Normal Weighing Mode Short press Tare/Untare (0.5 sec) 【TARE】 Long press Gross/Net Gross/Net (2 sec) Weight Weight Short press Switch units Switch units (0.5 sec) Long press (2 sec) 【UNITS】 ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703)
-
Page 7: Work Mode
When the indicator enters wake-up mode, all functions are enabled and the power run dynamically. Power-saving When LCD is on and backlight is off, the RS-232 circuit is off. 5.2 Operation Mode Switching Diagram ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 8: Start Up And Adjust
2-3 seconds then release it. The indicator will beep and the screen shows initialization until reached to indicator weighing system. Power off: Long press on/off button for 2-3 seconds then release it. The screen shows OFF, the indicator is turning off. ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 9: Indicator Dimensions
6.2 Indicator Dimensions (Unit) Inches ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 10: Connection Diagrams
6.3 Connection Diagrams 6.3.1 805HP Wired Model Connect load cell (communication & printer) to 805HP according to the following connection diagram: ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 11: Weighing Modes
6.3.2 805HP Wireless Model The indicator is set to match the corresponding wireless transceiver of a wireless scale. Usually 805HP-WL wireless model is paired with Anyload 110RH- WL TENSLINK scale or 110ES-WL Salt Waterproof scale. If you need to change the indicator’s wireless configurations due to radio frequency interference, you... -
Page 12: Gross/Net Mode
In the process of weighing. This mode is typically applied to a system when recording the peak reading of weights. To activate Peak Weighing Mode, long press →【HOLD】and (Peak mark) appears 11 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 13: Cumulate Mode
The recently saved weight readings will be displayed in the screen after 1 second. The M+ sign appears in the lower left corner of the screen. This means that weight data are recorded and be accumulated. 12 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 14: Calibration Mode
7.5 Calibration Mode In this mode, you have to enter the menu and parameter settings module. (Refer to Section 10 for the Calibration of the scale system) 13 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 15: Configurations And Menu Operations
→Increasing the numerical value of the digit Short press →Decreasing the numerical value of the digit Adjusting the screen till shows required password, and short press to enter the menu. The default password is: P00805. 14 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) - Page 16 Press ↙ to save the input values and exit In the actual menu structure, the selected menu item is displayed horizontally. parameter value with the symbol〔〕is the default value of system reset. 15 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703)
- Page 17 16 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703)
- Page 18 17 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703)
-
Page 19: Overload
, and the buzzer warns intermittently If, overload weight exceeds the historical maximum overload weight, historical maximum overload weight will be updated. You can find the maximum overload in the menu. 18 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 20: Modify Password
Press ↙ key to start modification, press the arrow keys ←, →, ↑, ↓ enter the new password, press ↙ key again to save, press ↑ key to return to the previous menu. Details are as follows: 19 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 21: Communication
Communication The 805HP indicator has two ways in communicating to the scale: 9.1 RS232 Communication The indicator has a standard RS-232 serial output interface to connect to large screen monitors, computers or other peripherals. Its effective connection cable length is 15 meters and beyond this length may lead to a high error rate. -
Page 22: Wireless Communication
PASS. If the channel search fails, the indicator displays FAIL. Check if the wireless transceiver power supply is normal, if the communication distance is too far, and if radio frequency interference exists. 21 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 23: Calibration And Parameter Settings
The following are the requirements in calibration: • The scale and indicator shall established a stable communication Test Weights or known weights ( recommended at least 20% of the • maximum capacity ) 22 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) -
Page 24: Standard Value Calibration
6.1) If no chains or hooks are used to hang the test weights during calibration, remove the test weight and press the start key to finish the calibration and return to weighing mode 23 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) - Page 25 A/D count of zero and span calibration with the Digit Calibration method Detailed diagram for standard value calibration: 24 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703)
-
Page 26: Digit Calibration
, there are 2 options: 6.1) If no chains or hooks are used during the standard value calibration, press the start key to finish the calibration and return to weighing mode 25 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) - Page 27 6.2) If hooks or chains are used during the standard value calibration, press ←,→,↑,↓ to input the re-zero A/D count. Press ↙ again to save and finish the digit calibration and return to weighing mode Detailed diagram for digit calibration: 26 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703)
-
Page 28: Troubleshooting Guides
12. Technical Specifications Features & Specifications 805HP-WL (Wireless 805HP (Wired Indicator) Indicator) Electrical Performance: Link Connection/Interface Frequency-16 available Wired with RS-232 channels to avoid compatible interface interference (duplex). 27 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) - Page 29 If inactive for a period of time set by user, the auto power-saving mode will activate. If inactive for a period of time set by user, the auto power-off mode will activate. Functions : Zero Tare In / Tare Out 28 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703)
- Page 30 Kg, g, t, lb, Klb, N, kN, oz, User's defined unit Gravity Acceleration Switch Tare Set Total / Delete / Clear Total View Total Resolution Switch Auto-Off Set Idle Set Tare Range 100% F.S. Zero Range 4% F.S. 29 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703)
-
Page 31: Appendices
13. Appendices 13.1 Seven-segment digital display alphanumeric table 13.2 Gravitational acceleration in different countries 30 | ANYLOAD 805HP Handheld Digital Weighing Indicator User’s Manual (V1703) - Page 32 Anyload Transducer Co. Ltd Website: www.anyload.com Email: info@anyload.com Fax: +1 866 612 9088 North America Toll Free: 1-855-ANYLOAD (269 5623)
