Astria Fireplaces TAURUS ST Series Quick Start Manual

NOTE: Gas line
may also be on
opposite side.
Wallboard
Gas Line
44-1/4" Min.
Facing
Facing Wall
Wall (Base line)
24"
1-1/2"
17-1/2"
37-1/2"
Diagrams, illustrations and photographs are not to scale. Consult installation instructions.
Product designs, materials, dimensions, specifi cations, colors, and prices are subject to
change or discontinuance without notice.
P/N 900665-00, REV. NC, 04/2016
TAURUS™ ST SERIES
VENT-FREE UNIVERSAL SEE-THROUGH FIREBOXES
22-3/4"
40-1/4" Min.
36" Min. to
Facing Wall
1-1/4"
42-1/2"
3"
4-1/4"
36-1/2"
Min.

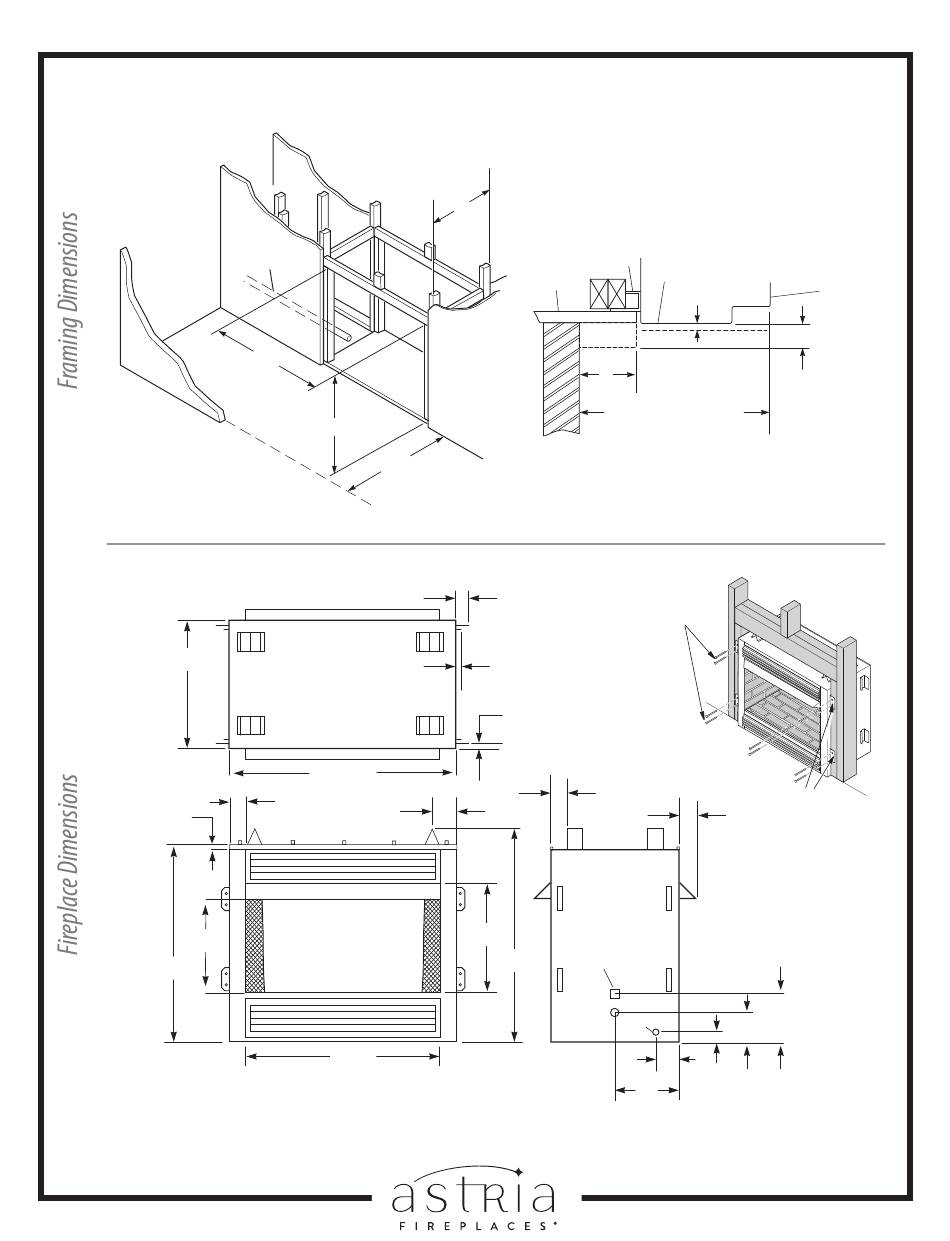

Framing for Built-In Firebox Installation, Top View
Nailing Flange
Drywall
SAFE
ZONE
Wallboard
4"
8" Min. from adjacent
wall to fireplace opening
1/2"
NAILING FLANGES
5/8"
3-1/8"
20-1/2"
40"
Gas line
Combustible material must
not overlap more than 3/8"
onto black metal front face.
3/8" Max.
1-1/2" Max.
Minimum from
firebox edge to
combustible material
Nails or
Wood
Screws
Nailing Flanges
4"
11-1/2"
Electrical
5-1/2"
5
2-1/4"
12"
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Edge of
side firebox
opening
Page 1 of 2
