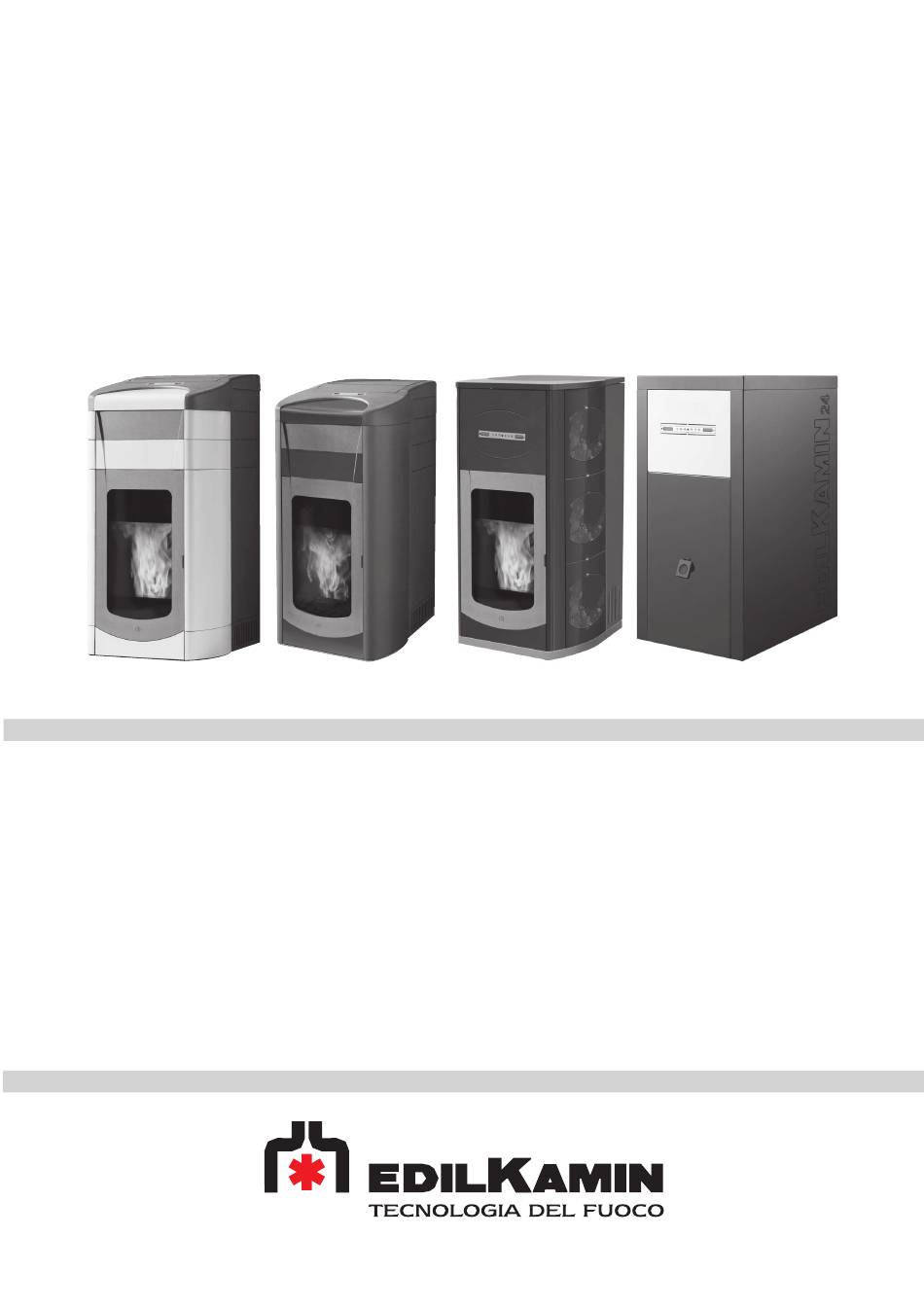

kW 24 : QUEBEC - TORONTO - MONTREAL - OTTAWA
kW 33 : DETROIT - BOSTON - MIAMI - ATLANTA
I
QUEBEC - TORONTO - MONTREAL - DETROIT - BOSTON - MIAMI - OTTAWA - ATLANTA,
Installazione, uso e manutenzione
UK
QUEBEC - TORONTO - MONTREAL - DETROIT - BOSTON - MIAMI - OTTAWA - ATLANTA,
Installation, use and maintenance
F
QUEBEC - TORONTO - MONTREAL - DETROIT - BOSTON - MIAMI - OTTAWA - ATLANTA,
Installation, usage et maintenance
E
QUEBEC - TORONTO - MONTREAL - DETROIT - BOSTON - MIAMI - OTTAWA - ATLANTA,
Instalación, uso y mantenimiento
D
QUEBEC - TORONTO - MONTREAL - DETROIT - BOSTON - MIAMI - OTTAWA - ATLANTA,
Installations-, Betriebs- und Wartungsanleitung
NL
QUEBEC - TORONTO - MONTREAL - DETROIT - BOSTON - MIAMI - OTTAWA - ATLANTA,
Installatie, gebruik en onderhoud
Extra Line
p.
2
p.
28
p.
54
p.
80
p. 106
p. 132

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Toronto and is the answer not in the manual?

Questions and answers

Related Manuals for EdilKamin Toronto

Summary of Contents for EdilKamin Toronto

  • Page 1 24 : QUEBEC - TORONTO - MONTREAL - OTTAWA kW 33 : DETROIT - BOSTON - MIAMI - ATLANTA QUEBEC - TORONTO - MONTREAL - DETROIT - BOSTON - MIAMI - OTTAWA - ATLANTA, Installazione, uso e manutenzione QUEBEC - TORONTO - MONTREAL - DETROIT - BOSTON - MIAMI - OTTAWA - ATLANTA,...

  • Page 2: Safety Information

    Should ignition fail, DO NOT re-ignite until you have emptied the combustion chamber. DECLARATION OF CONFORMITY The undersigned EDILKAMIN S.p.a. with head office headquarters at Via Vincenzo Monti 47 - 20123 Milan - Italy - VAT T00192220192 Declares under its own responsability as follows:...
  • Page 3 DIMENSIONS QUEBEC - TORONTO = hot water outlet 3/4” M = Smoke outlet (Ø 10 cm) DETROIT - BOSTON = water return line 3/4” M = safety valve drainage 1/2” F = mains water 1/2” M = domestic hot water 1/2” M...
  • Page 4 ** Fuse 2A, 250 VAC 5x20 Electronic control board protection ** Fuse 2A, 250 VAC 5x20 The data shown above is purely indicative. EDILKAMIN reserves the right to make changes to these products to improve their performance with no prior warning. SAFETY DEVICES FUSE** THERMOCOUPLE: placed at the smoke outlet to detect the temperature.

  • Page 5: Electronic Circuit Board

    FEATURES ELECTRONIC CIRCUIT BOARD Archimedes' screw 2 probe CONSOLLE cod. 612600 request sensor RPM Screw 1 RPM Screw 2 ACS-IN Antenna (Ottawa/Atlanta) Thermocouple RPM smoke Panel control RS232 RS232 socket Water outlet probe Vacuum gauge Tx/sx radio module Vacuum gauge (Ottawa) EV ACS Li t hi um...

  • Page 6: Principle Of Operation

    The main phases can even be handled by radio control (Ottawa / Atlanta model) and remote control (Quebec / Toronto / Montreal / Detroit / Boston / Miami models). Aserial port is found at the back of the thermo-stoves (optio- nal cable: code 640560) to be connected to devices that allow remote ignition (e.g.
  • Page 7 SAFETY AND DETECTION DEVICES Smoke thermocouple placed on the smoke exhaust pipe to detect the temperature. It controls the ignition phase and if the temperature is too high or too low it triggers a block phase (Stop Flame or Overheated Smoke). Feed Screw safety thermostat placed near the pellet hopper.

  • Page 8: Installation

    The electrical system must comply with law; particularly verify the efficiency of the earthing system. The power line must have suitable cross-section for the thermo-stoves’s power. Lack of efficiency of the "ground" circuit causes malfunction for which Edilkamin cannot be held responsible. Positioning The thermo-stoves must be level for it to function correctly.

  • Page 9: Hydraulic Connections

    HYDRAULIC CONNECTIONS (Reserved for DEALER) The stoves have a boiler with a capacity of 80 Lts. of water. This significant amount of water renders the stove extremely smooth in operation, little affected by variations in demand of users. This will provide for highly consistent combustion with excellent yield . The stoves are equipped with a kit for producing instant Domestic Hot Water for bathrooms and kitchens as well as kits for the hea- ting system (circulator, safety, loading and unloading).
  • Page 10 HYDRAULIC CONNECTIONS Hydraulic schematic diagram of built in kit. ACS: Domestic Hot Water Cold Water System delivery 3 way Solenoid valve Flow meter Pump (circulator) Pump OPTIONAL Power Electronic Regulator System Return Drainage Exchanger Temperature Probe Valve Expansion tank Check Valve VSP: Safety valve VST: Thermal discharge valve Refilling...
  • Page 11 ACCESSORIES: In the diagrams referred to in the previous pages the use of accessories available from the Edilkamin catalogue has been assumed. Individual spare parts are also available (exchanger, valves, etc). For information, please contact your local dealer.
  • Page 12 MOUNTING THE COVERING QUEBEC - TORONTO - DETROIT - BOSTON Phase 1: Representation of the stove after unpacking N.B.: the Thermo-stoves come furnished with the ceramics packed in separate boxes in order to avoid damage during transport as well as to lighten and facilitate the manual handling of the product. The Ottawa/Atlanta Boiler has its steel front sides preassembled at the factory.
  • Page 13 MOUNTING THE COVERING Phase 3 Mounting upper front panel Phase 5 mounting ceramic top Front view of the cast iron front panel fixing rear view of the cast iron front panel finished view finished view finished view Phase 4 mounting ceramic side panels Slot (M) back side panel...
  • Page 14 MOUNTING THE COVERING MONTREAL - MIAMI Photo 1: Representation of the stove after unpacking N.B.: the Thermo-stoves come furnished with the ceramics packed in separate boxes in order to avoid damage during transport as well as to lighten and facilitate the manual handling of the product. Installing ceramic tops Remove the 4 pins (A) from the plating top and move the 2 aluminium sides (B) slightly forward.
  • Page 15 Door ceramic blocking plate 387530 Front ceramic blocking plate 388890 Screw T.E. 6x16 18650 Screw 4,2x6,5 235990 Spacer 266670 TORONTO / BOSTON cod. Red lower front panel 642050 Off-white lower front panel 642040 Red upper front panel 642070 Off-white lower front panel 642060...
  • Page 16 INSTRUCTIONS FOR USE Mimic panel to turn on and off (hold down for 2") and to exit from the menu during programming to access the menu during programming to increase the various settings to decrease the various settings (pellet loading/reserve button) press once to ‘inform’...
  • Page 17 INSTRUCTIONS FOR USE Filling the feed screw If the pellet storage tank is completely emptied, it follows that the Archimedes' screw is also emptied. Before restarting the stove you must fill it by following these steps: press the +/- keys simultaneously (via the radio control/ remote control or the synoptic panel) for a few seconds, after which, having released the keys, the display will show the text "Reload".
  • Page 18 INSTRUCTIONS FOR USE Move from one to the other using the + and – keys. Use the MENU button to confirm the ‘Daily program’option and access the selection of the number of programs (ignition/shutdown) to be set per day. Use the ‘Program/daily’ option to set the identical program/s for every day of the week. The following will be displayed if the + key is pressed: - No Prog.
  • Page 19 INSTRUCTIONS FOR USE RADIO CONTROL code 633290 (OTTAWA / ATLANTA) This controls all the functions. For further information contact our customer service centre. Key to buttons and display: to turn off and on (to go from remote control on stand-by to radio control on) to increase/decrease the various regulations to select function to access the control and programming menus...

  • Page 20: Low Battery Indicator

    Should this correction not suffice, contact the Edilkamin-authorised Dealer, to establish the new operating axis. Notes on flame variability: Any changes in the state of the flame depend on the type of pellets used, as well as on normal variation of solid fuel flames and on the periodic cleaning of the crucible the stove automatically carries out (Note: This does NOT replace the necessity cold vacuuming by the user prior to start up).
  • Page 21 INSTRUCTIONS FOR USE REMOTE CONTROL cod. 633310 (QUEBEC/TORONTO/MONTREAL/DETROIT/BOSTON/MIAMI) This controls all the functions. It is necessary to point it directly at the thermo stove. For further information contact our customer service centre. Key to buttons and display: ignition / shutdown button (press for approximately 1 second) this button can also be pressed to exit the...
  • Page 22 INSTRUCTIONS FOR USE USING THE “EASY TIMER” PROGRAM The new remote control allows you to manage a new timer program that is very intuitive and easy to use: - If the thermo-stoves is on: a delayed shutdown can be set from the remote control - from one to twelve hours. The remaining time for the scheduled shutdown is shown on the display of the synoptic panel.

  • Page 23: Maintenance

    • Move the cleaning rods (*) : - For the Quebec/Toronto models, remove the ceramic top and make movements with the lever (see fig. E). - For the Ottawa model, remove the metal top and make movements with the lever (see fig. F).
  • Page 24 MAINTENANCE fig. A fig. B fig. C fig. D fig. E fig. F fig. G...

  • Page 25: Possible Troubleshooting

    POSSIBLE TROUBLESHOOTING In the event of problems the thermo-stoves stops automatically and runs the shutdown process and the display shows text regarding the motivation of the shutdown (see the various alarms below). Never pull the plug during shutdown on account of malfunction. If the event of malfunction, to restart the thermo-stoves it is necessary to let the shutdown procedure proceed (10 minutes with acoustic signalling) and then press the 0/1 key on the synoptic panel.
  • Page 26 POSSIBLE TROUBLESHOOTING 13) STOP G/SCREW 2: (intervenes when the gear motor 2 is blocked or malfunctioning) Check the wiring of the gear motor 2 or else replace it 14) Battery check: The thermo-stoves does not stop but the error appears on the display. The buffer battery of the control board needs changing. Faulty contact with the clock's battery.
  • Page 27 NO. Most of the heat is transferred to the water. Only Quebec / Toronto / Montreal / Detroit / Boston / Miami emit a small amount in the installation environment in the form of radia- tion from the glass hearth. It is advisable in any case to use a radiator in the same room.
