Graco 24A431 Wide Pattern Kit Manual

For pro xs electrostatic air spray guns

Download this manual

GENUINE GRACO PARTS AND ACCESSORIES

24A431 Wide Pattern Kit

For PRO Xs Electrostatic Air Spray Guns

Important Safety Instructions

Read all warnings and instructions in manual

309291, 309292, or 312900. Save those

instructions.

Install Wide Pattern Fitting

1. Locate the three hex socket screws (11),

that connect the gray barrel (16) to the

black handle (17), see F

three screws using a 4mm hex tool and

leave the screws retained.

2. Separate the gray barrel (16) from the

black handle (17), see Fig. 2.

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441

406721 Rev. B 12/2008

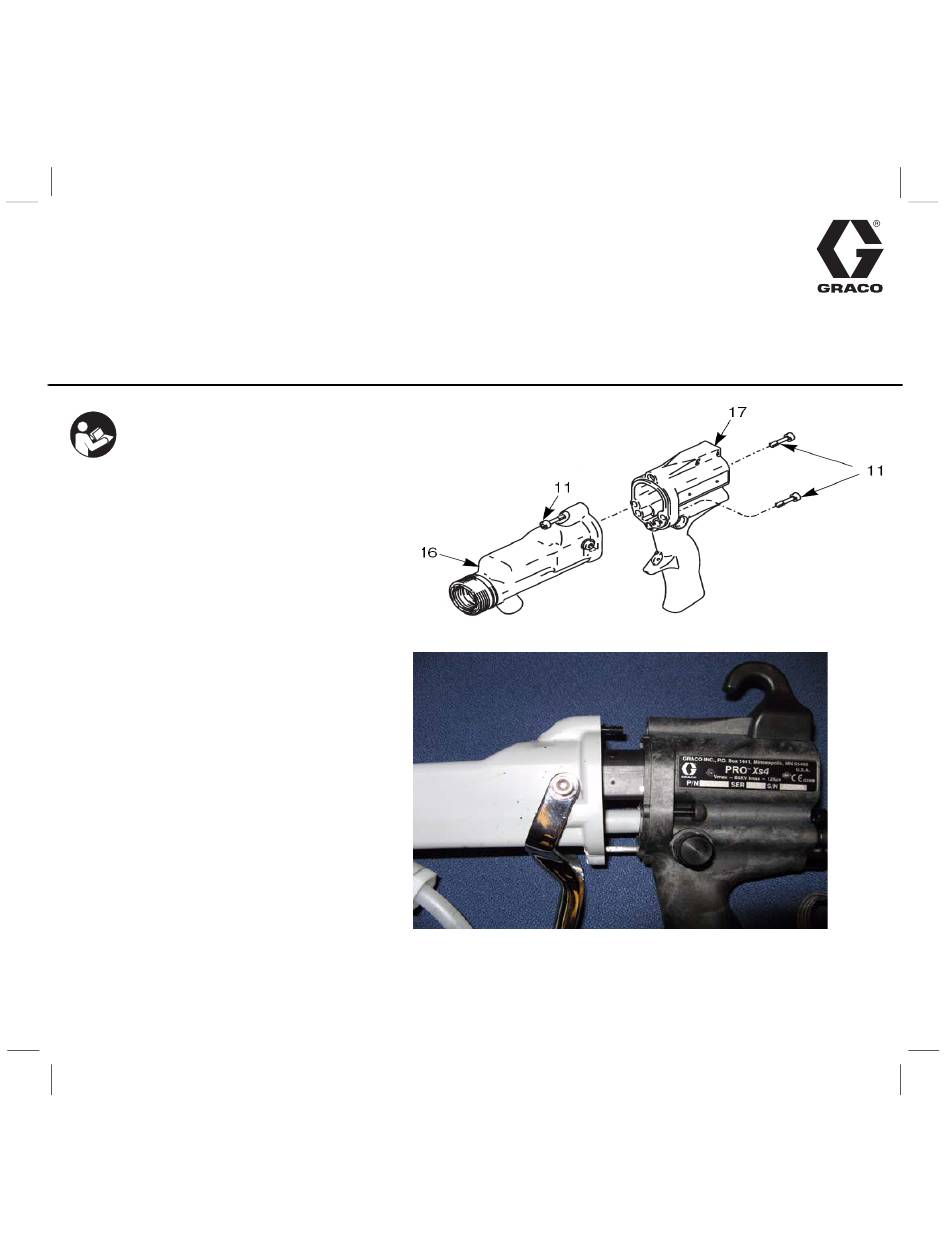

. 1. Loosen all

Fig. 1. Loosen three hex socket screws

Fig. 2. Barrel and handle separated

406721B

Need help?

Do you have a question about the 24A431 Wide Pattern Kit and is the answer not in the manual?

Page 1 2. Separate the gray barrel (16) from the black handle (17), see Fig. 2. Fig. 2. Barrel and handle separated Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441 406721 Rev. B 12/2008 Copyright 2008, Graco Inc. is registered to ISO 9001...
Page 2 5. Reassemble the gray barrel (16) to the black gun 3. Locate the ¼” air passage adjacent to the air body (17) and tighten the three screws (11). adjustment knob on the left-hand side of the gun body, see Fig. 3. 6.
