Step 2: Closing up the support bracket

1) Route the power supply cable and synchronisation cable (for wired clocks) into the support
tube. This cable comes from the client installation (not supplied by Bodet).
2) Mount the bracket arm to the wall (see page 16 for screw hole distances).
3) Fit the spacers to one of the two bracket side plates using the
screws (ref.: 601070) through the holes located opposite the cut
out blanking plate.

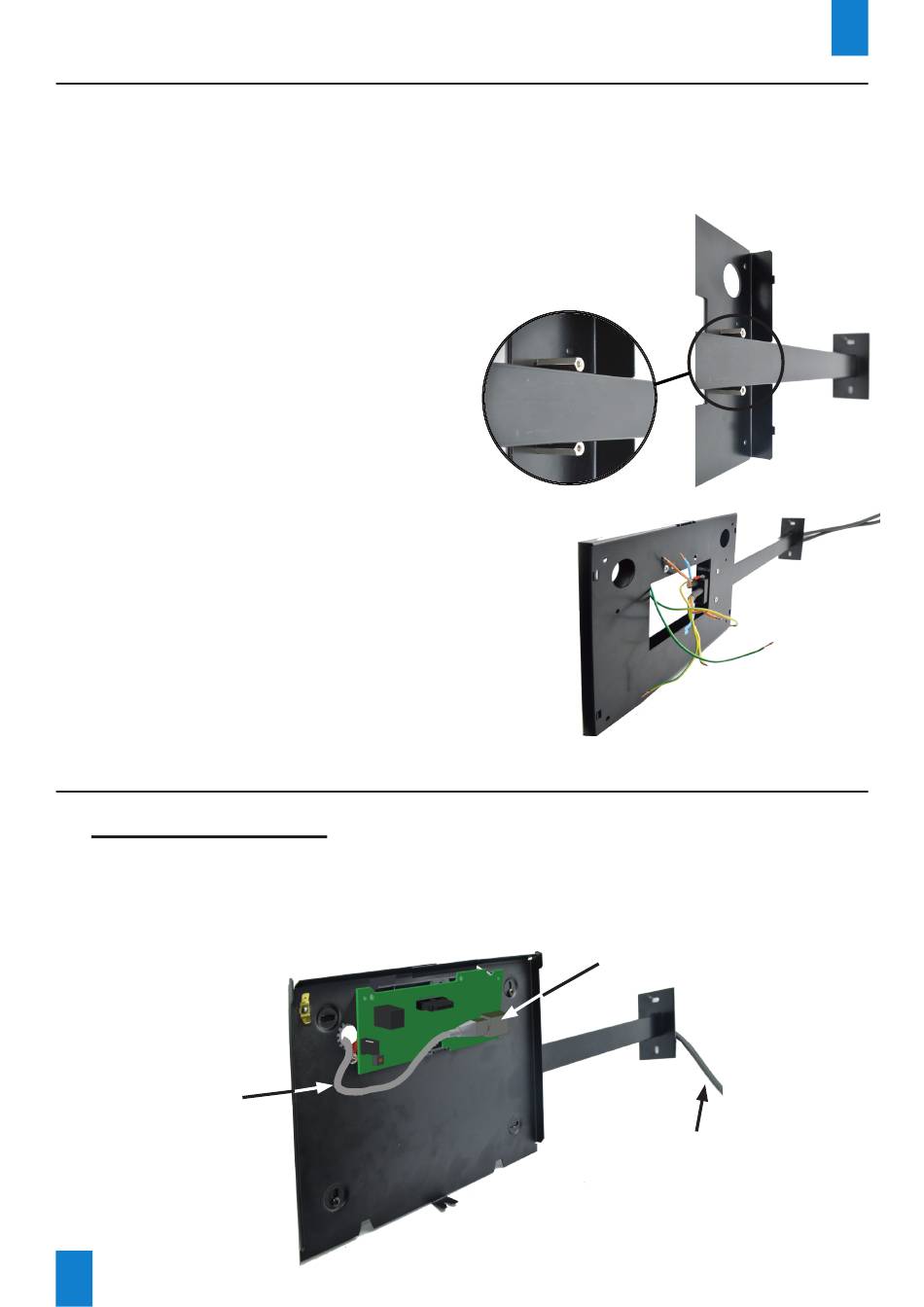

Example showing the bracket side plate
for a flag-mounted installation:
NOTE: MAKE SURE YOU PLACE THE
SPACER FLATS PARALLEL TO THE
BRACKET ARM.
4) Fit bracket side plates 1 and 2 to the
bracket arm.
Using the two screws supplied, screw the
second side plate into the spacers on the
first.

Step 3: Electrical connections

3.1 NTP-PoE Clocks

3.1.1 Single sided:

The cabling is done directly from the client's Ethernet network
Client Ethernet cable
6
RJ45 connector
Client Ethernet cable
