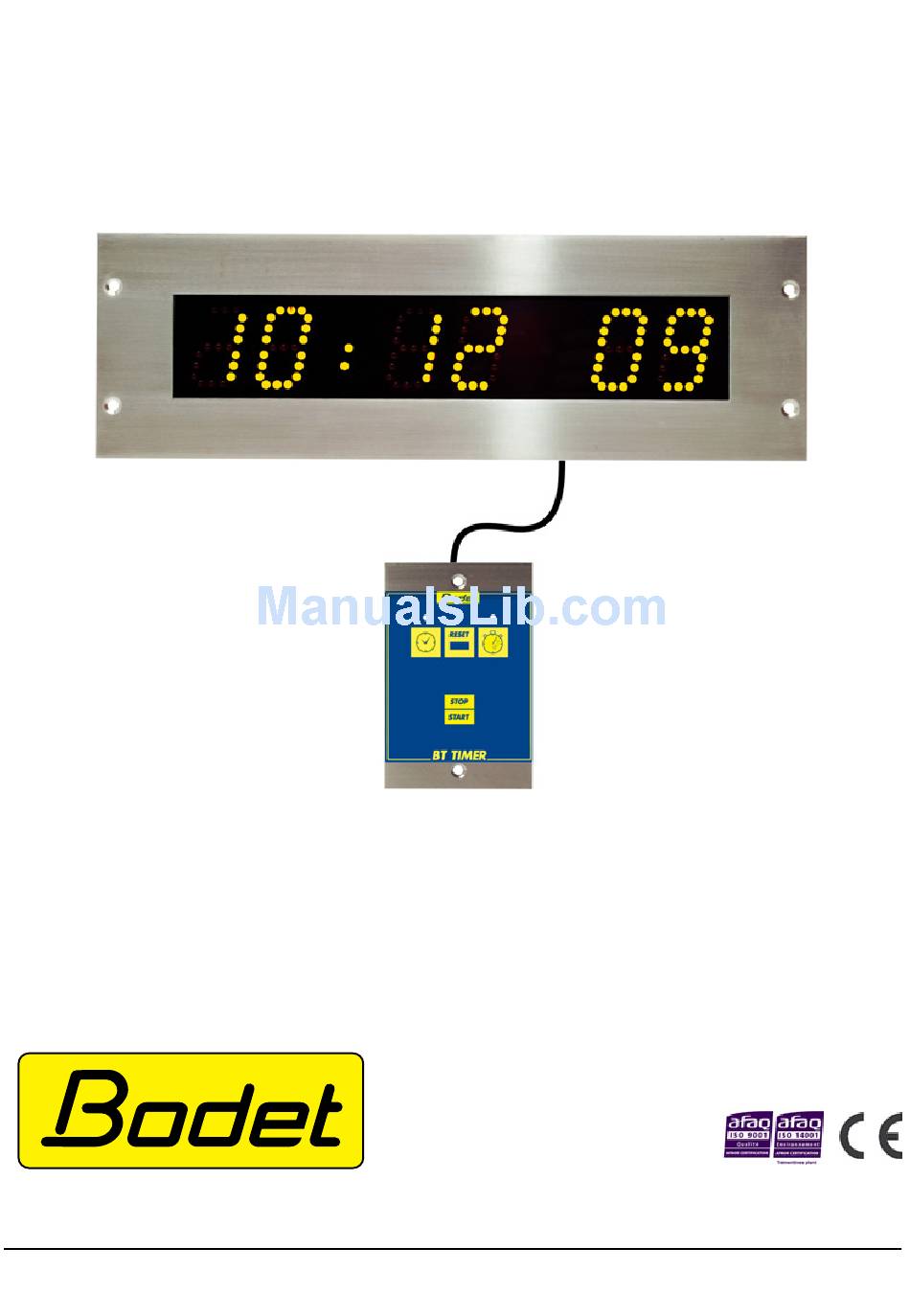

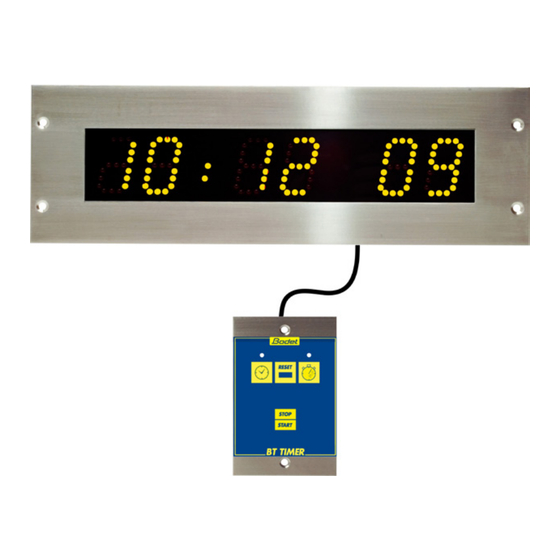

- Page 1 Style 5S Clock / Timer Installation and operating instructions BP30001 49340 TRÉMENTINES FRANCE Tél. 02 41 71 72 00 Fax 02 41 71 72 01 www.bodet-time.com Réf. 606726 G When receiving goods please chek nothing is broken otherwise make a claim near shipping company.
-
Page 2: Table Of Contents
Table of contents 1) INITIAL CHECK ..................3 2) MECHANICAL INSTALLATION ..............4 3) ELECTRICAL INSTALLATION ..............5 4) POSITION OF “SELECT” AND “+” KEYS ..........5 5) ADJUSTING THE BRIGHTNESS ..............6 6) TIMER FUNCTIONING ................6 7) CONFIGURATION ..................7 8) TIME SETTING ..................9 9) MEMORY BACKUP ...................11 10) TECHNICAL CHARACTERISTICS ............11 11) CLEANING ....................11... -
Page 3: Initial Check
1) INITIAL CHECK CAUTION: maintenance of this equipment must be carried out by qualified personnel. Any changes made to the product lead to loss of the guarantee. Read the enclosed leaflet entitled “General safety instructions and precautions for use of BODET products” before installation. - IMPORTANT: Product information labels. -
Page 4: Mechanical Installation
2) MECHANICAL INSTALLATION Install the clock and its control panel in their positions. The watertightness is accomplished at installation time by a silicon gasket between the front panel and the wall. -
Page 5: Electrical Installation
3) ELECTRICAL INSTALLATION To control panel Power supply Time distribution The electronics of this clock is protected by a fuse (F1). Connect the keyboard to the clock (terminals 1 to 4). Connect the coded time line (AFNOR: terminals 5 and 6 / Minute 24V: terminals 6 and 7). -
Page 6: Adjusting The Brightness
5) ADJUSTING THE BRIGHTNESS - The brightness can be adjusted when the Style clock is in normal operating mode, i.e. when it is neither in the configuration menu nor in the time setting menu. - Press the “+” key successively to directly select the display brightness best suited to the ambient lighting from the four levels proposed. -
Page 7: Configuration
7) CONFIGURATION To access this menu, press the “SELECT” key, hold it down and press the “+” key for 3 seconds. Caution: the seconds are reset to zero automatically when you enter the configuration menu. a - Operating mode The clock displays (in accordance with the model) the last operating mode selected: Operating mode Display Independent... - Page 8 b - Choosing the display Use the “+” key to choose the required display from the following four options : - Current time flashing (for example 20:29). This option corresponds to the most frequent use: permanent display of the time. - “31 12”...
-
Page 9: Time Setting
d - Configuring the time difference The time difference (00 by default) flashes. This menu allows you to impose a difference between the time displayed and the time received. It is therefore used only if the operating mode chosen is “LOC” (world clock). - Select the time difference, from -15 h to +15 h, using the “+”... - Page 10 b - The minutes stop flashing and the hour flashes. - Adjust the hour with the “+” key and then validate by pressing the “Select” key. Remark: you can exit from this menu at any time without going through all the functions. Simply press the “Select” key, hold it down and press the “+”...
-
Page 11: Memory Backup
9) MEMORY BACKUP - Style clocks have a system enabling them to store all configuration parameters even in the event of a prolonged mains failure. - However, the date and the time may be “lost” following an exceptionally long mains failure (lasting more than one week).
