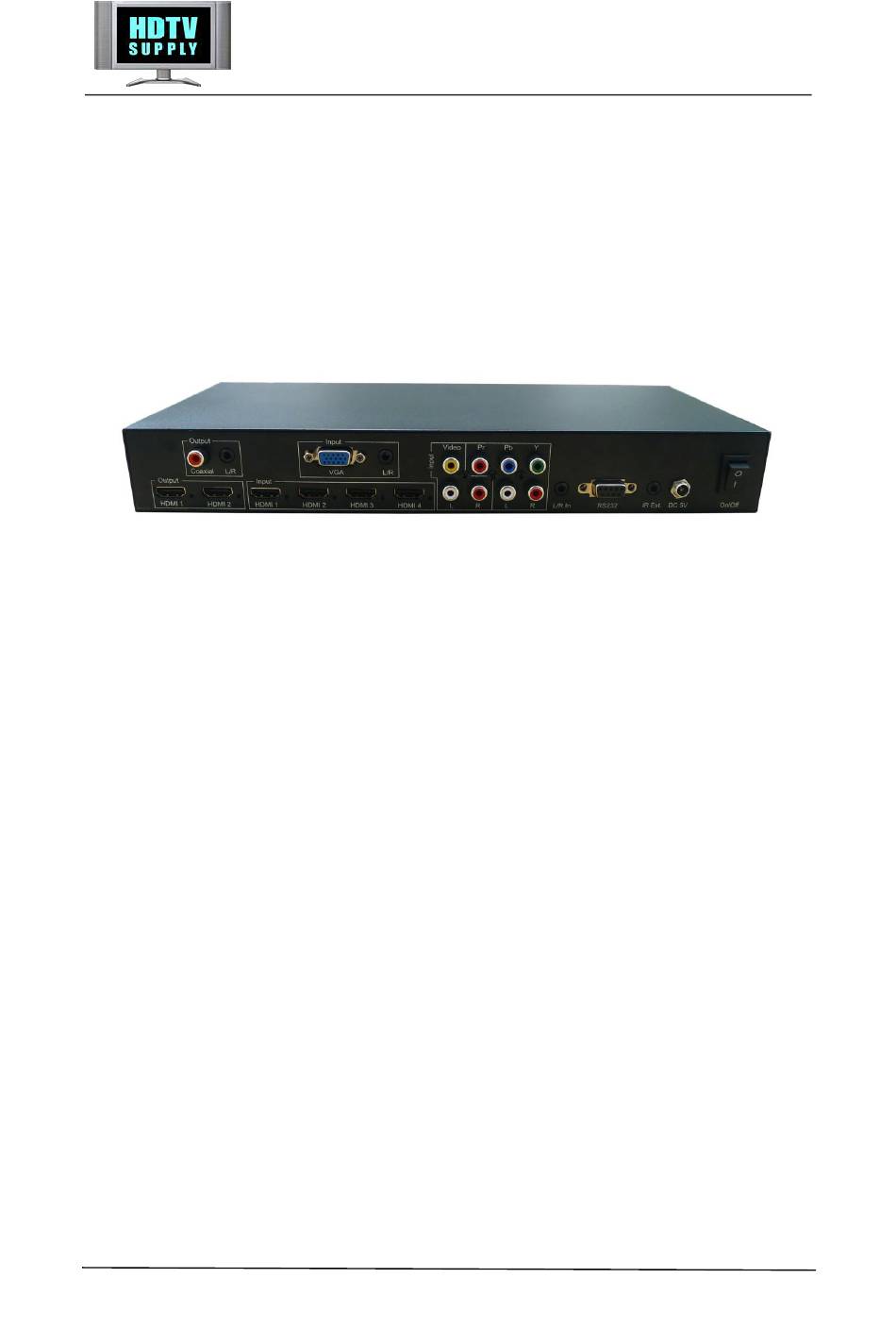

- Page 1 HDTVCV0702HDS User Manual HDTVCV0702HDS User Manual Contact: support@hdtvsupply.com 1 HDTV Supply, Inc.
- Page 2 HDTVCV0702HDS User Manual Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDEDwa This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
12. Limitations of Warranty..................22 13. Exclusive Remedies..................22 14. RMA Policy...................22 Introduction HDTVCV0702HDS is a HDMI,VGA, Component and Composite presentation switcher. Embedded splitter and dual switcher modes, it can work as 7:1x2 multiple splitter and 4x1 Contact: support@hdtvsupply.com 3 HDTV Supply, Inc. -
Page 4: Features
1. LCD display---Show the status of input-output selection, EDID info and so on. 2. IR receiver window----Receive the IR from the remote control of HDTVCV0702HDS. 3. Dual switcher LED indicator---When the LED is lit, dual switcher mode is on. Output HDMI 1 is selected by HDMI1/HDMI2/HDMI3/HDMI4 which works as 4K 4x1 switcher in by-pass mode;... - Page 5 HDTVCV0702HDS User Manual always be scaled & formatted output regardless of by-pass ON/OFF, works as scaling 7x1 switcher, 4. Mode button---Press to set Dual Switcher mode ON/OFF 5. HDMI input 1 to 4 selection buttons ---Press to select the output 1 from 1 to 4 working as 4k 4x1 switcher.
- Page 6 HDTVCV0702HDS User Manual 11. Embed LED indicator ---When the LED is lit, embed mode is on. When embed in on, the L/R in will be embedded in to the HDMI outputs (The two outputs will be embedded with the L/R in audio and the volume is adjustable when in splitter mode; Only output 2 will be embedded with the L/R in audio and the volume is adjustable when in dual switcher mode) 12.
-
Page 7: Remote Control Descriptions
HDTVCV0702HDS User Manual 8. RS232 port--- DB9 connector 9. IR Ext. --- Connect to IR receiver cable. 10. DC 5V---Connect to 5V/2A power supply. 11. Power switch ---Power on/off the unit. Remote Control Description Contact: support@hdtvsupply.com 7 HDTV Supply, Inc. - Page 8 HDTVCV0702HDS User Manual Contact: support@hdtvsupply.com 8 HDTV Supply, Inc.
-
Page 9: Application Diagram
HDTVCV0702HDS User Manual Application Diagram Specifications: Bandwidth： 10.2Gbps Video Input Connectors: 4x HDMI Type A, 1x VGA, 1xYPbPr,1x AV Video Output Connectors: 2x HDMI Type A Audio Input Connectors: 2x 3.5mm stereo jack, 4x RCA (2 x L/R) Audio Output Connectors: 1x 3.5mm stereo jack,1x RCA (SPDIF) -
Page 10: Package Contents
HDTVCV0702HDS User Manual Storage Temperature : -4°F to 140°F (-20°C to 60°C) Power Supply: DC 5V/2A Package Contents: 1x HDTVCV0702HDS 1x 5V/2A power supply 1x Remote control 1x IR Receiver. 1x mounting kit. RS-232 Pin Assignment Remote Control HDTVCV0702HDS Console... -
Page 11: Rs232 And Telnet Commands
HDTVCV0702HDS User Manual Baud Rate: 57600 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None RS232 and Telnet Commands Command Action Print Help Information HELP Print Help Information STATUS Print System Status And Port Status Power On, System Run On Normal State... - Page 12 HDTVCV0702HDS User Manual rr=04: 720P@50Hz rr=05: 1280x1024@60Hz rr=06: 1024x768@60Hz rr=07: 1360x768@60Hz rr=08: 1440x900@60Hz rr=09: 1680x1050@60Hz EDID xx CP yy Set Input:xx EDID Copy From Output:yy yy=[00]: yy=[01...08] EDID xx DF zz Set Input:xx EDID To Default EDID:zz xx=00: Select All INPUT Port xx=[01...04]: Select One INPUT Port...
-
Page 13: Maintenance
HDTV Supply is responsible for the freight charges only for return of the equipment from the factory to the owner. HDTV Supply will return the equipment by the same method (i.e., Air, Express, Surface) as the equipment was sent to HDTV Supply. -
Page 14: Exclusive Remedies
RMA Policy When returning product to HDTV Supply for any reason, the customer should fill out the official RMA form to obtain a RMA number. Without the permission or approval, HDTV Supply will be no responsible for any return. - Page 15 Shipping your RMA to HDTV Supply using regular mailing envelopes is not acceptable, as they do not protect the product from damage during shipping. HDTV Supply will not repair or replace a module that is shipped in such a way that the product is not properly protected.
