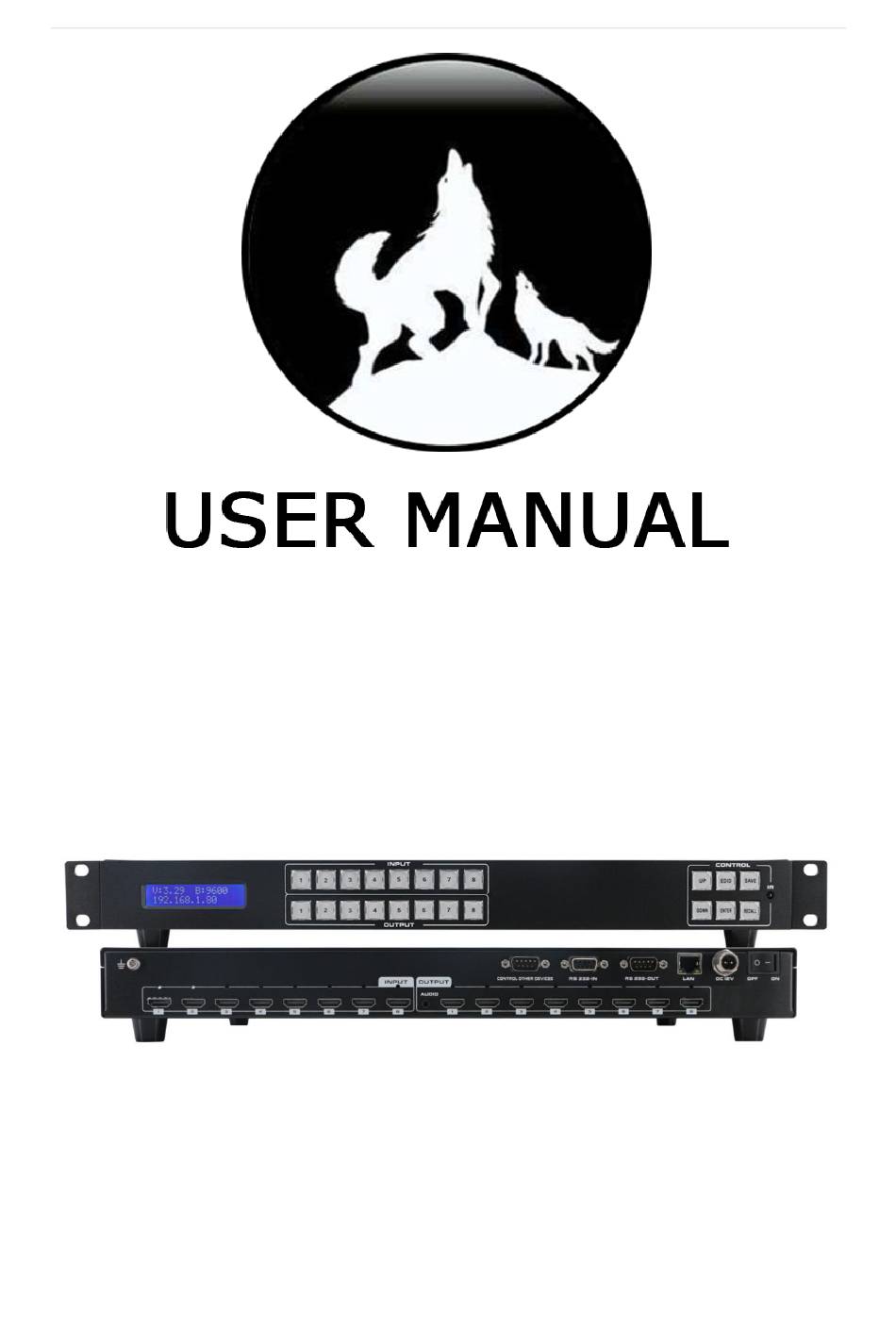

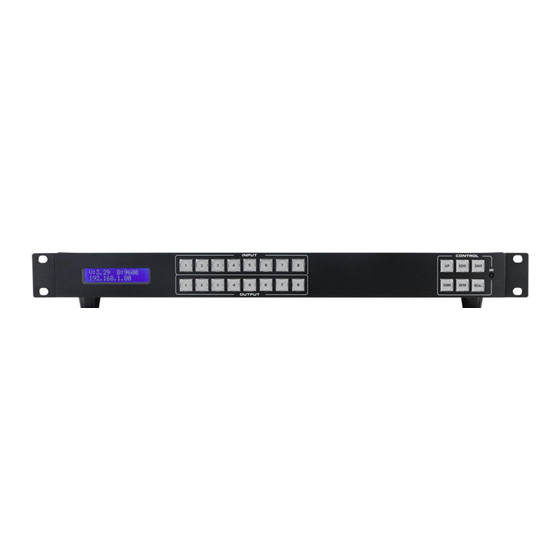

- Page 1 P a g e WolfPack 4K 30 Hz 8x8 HDMI Switcher with Apps & WEB GUI Part Number: HDTVFIX800E Version: V22.06 HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 2 Please observe the following when you install, use, maintain this equipment. Make sure the device ground connection. Important Safety Instructions HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 3 Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
-
Page 4: Table Of Contents
Remote Control .................. 8 Channel switching: ................8 Switch any inputs to all outputs: ............8 APP control ..................9 WEB GUI browser Control ..............11 8. Common Problem Shooting ................14 9. After-Sales ....................14 HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... -
Page 5: Features
8 * HDMI, 1* RS-232(control), 1 * RJ-45(control) 1080p@24/30/50/60Hz, 4K@30Hz Output ports 8 * HDMI, 1* RS-232(control) ESD Protection ±8kV (Air-gap discharge), ±4kV (Air-gap discharge) Controlling IR remote control, front buttons control, RS232, UDP HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... -
Page 6: Connection Diagram
P a g e Power DC:12V 2A Dimension(mm) 440*279*44(mm) Weight Connection Diagram Packing Name Unit HDMI Matrix Switcher Pcs. DC 12V2A power adapter Remote Control Rack ear HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... -
Page 7: Panel Description
⑤ Control other devices: from the WEB GUI setup to fill out the commands ⑥ RS232 IN: Female RS232 port for the R232 control ⑦ RS232 OUT: Male RS232 port for the RS232 control loop HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... -
Page 8: Matrix Switcher Control
Select from the INPUT buttons (1~8) OUTPUT buttons (1~9) “ENTER”, will hear a beep sound. RECALL: For the saved presets recalling. “RECALL” select from the INPUT buttons (1~8) OUTPUT buttons (1~9) “ENTER”, will hear a beep sound. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... -
Page 9: App Control
192.168.1.80. Open the APP and Enter the IP address of the matrix switcher: Click Enter and login with the user name and password, the default User name is admin, password is admin. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... - Page 10 Click Submit to login after typing the correct user name and password, and it will turn to the home interface for the sources Switch, Scene Recall/Save: Users can change input, output and Scenes names here, up to 8 characters. Users also can do the settings for the “Setup” tap HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
-
Page 11: Web Gui Browser Control
The default user name is admin and the password is admin. After login, it will turn to “Home” interface, users can do the sources switching, scenes recall, save and the other devices control here. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... - Page 12 EDID setting tab for users to select or setup the EDID for the specific inputs Setup interface for users to do the IP address, COM baud rate and buzzer settings: Account interface for users to change the login user name and password: HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 13 Switch input Y to output Ys 4:3x2.3x3.3x4. SaveY. Save to scene Y Save to scene2: Save2. Recall to the scene 10: Recall[y]. Recall the save scene Y Recall10. To reset account to admin/admin, IP address to default Reset. 192.168.1.80 HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
-
Page 14: Common Problem Shooting
(90) days or the remaining period of the initial warranty. The Company shall not be responsible for any software, firmware, information, or memory data contained in, stored in, or integrated with the product repaired by the customer's return, whether or not during the warranty period. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com... - Page 15 Company or its authorized agent, the company will not have to bear additional obligations. Except using the product properly in the proper application or normal usage HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 16 We are committed to providing you with the highest level of service. Contact Details: Phone: 833-WOLFPACK (833-965-3722) Email: customerservice@hdtvsupply.com support@hdtvsupply.com Website: www.hdtvsupply.com Our team is ready to assist with any questions or concerns you may have. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
