Removing The Fet Bar - OutBack Power FLEXmax Series Manual

Disassembly
Removing t he FET Bar

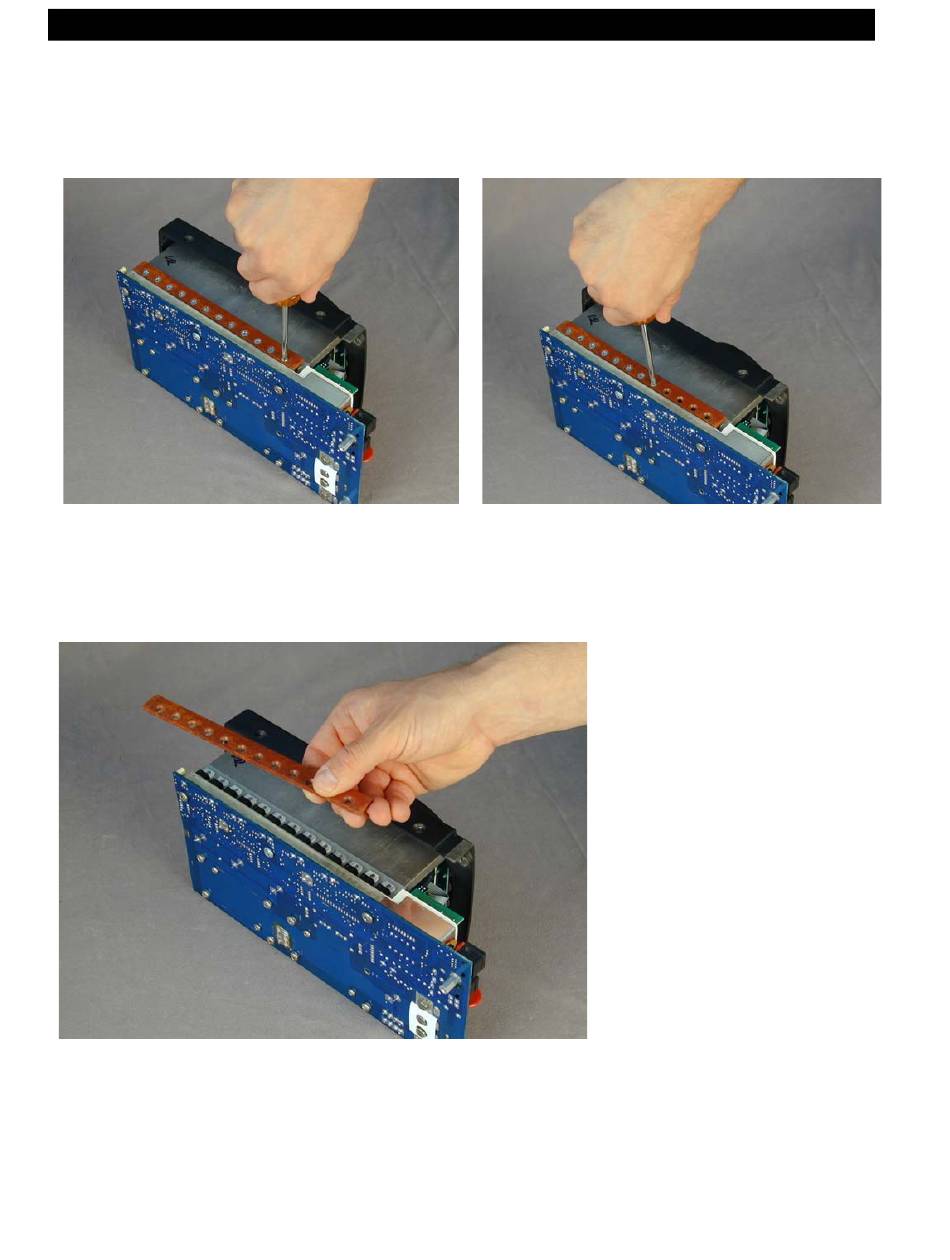

1. Set the unit on its side as shown in Figure 9 and remove the 12 screws securing the FET mounting bar
to the heat sink.
Figure 9 FET Bar Screw Removal
2. Remove the FET mounting bar.
Figure 10 FET Bar Removal
Continued on next page.
