OutBack Power FM100 How-To Note

Replacing charge controller on the fp-radian 300v system
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

How-To Note
Replacing the FM100 Charge Controller on the
FP-Radian 300V System

Tools Required:

Screwdriver, Phillips
o
Digital Multi-Meter (DMM)
o

Steps:

1. If desired, save the configuration file to the
SD card using the MATE3s system display
(see MATE3s Programming Guide page 5)
2. De-energize all system components, including
the PV (see FLEXpower Radian Quick Start
Guide, De-energize/Shutdown Procedures)
3. Using a DMM, verify no voltage is present
within the system (including the charge controller
and GSLC)

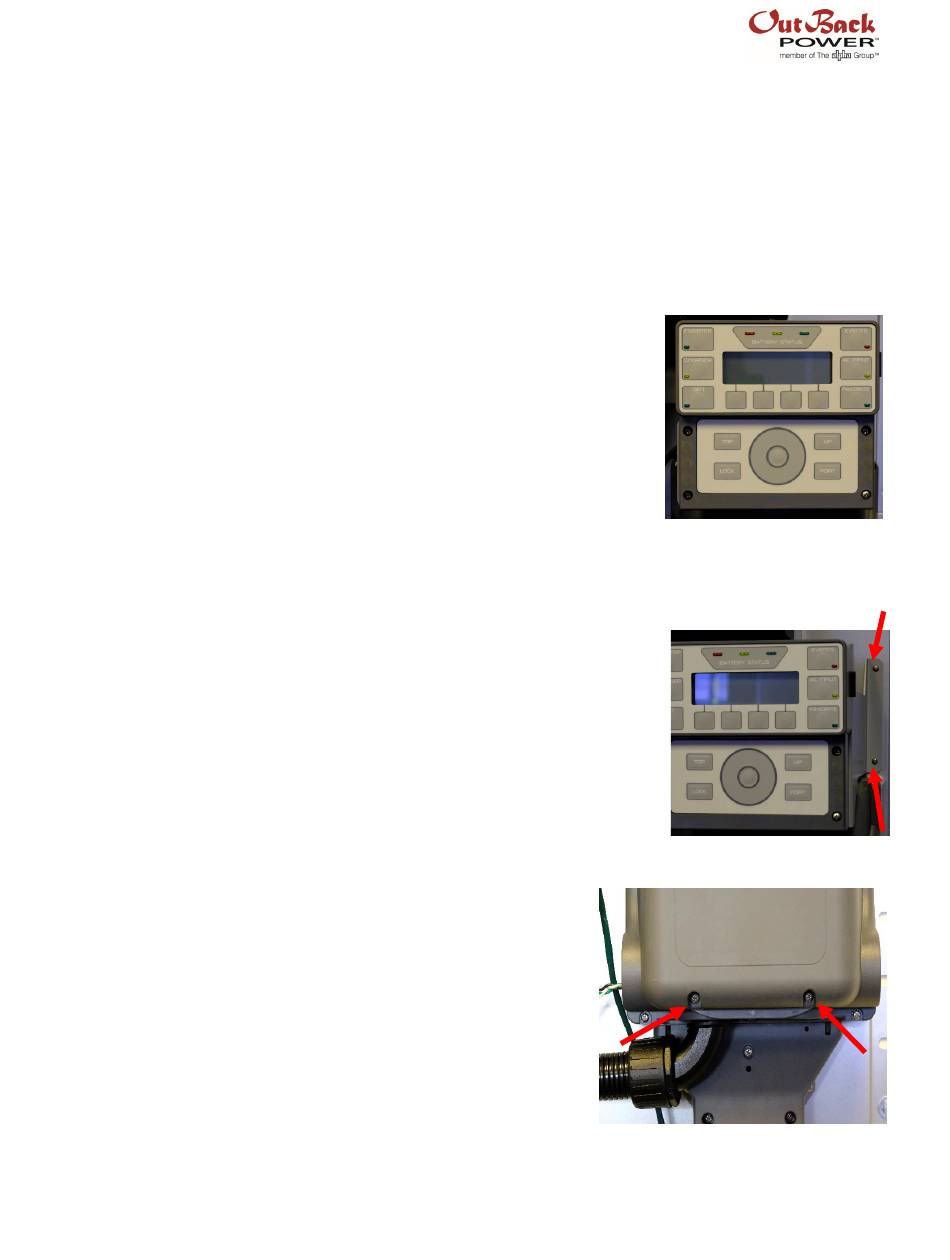

4. If replacing the bottom controller on a
FLEXpower Radian system, first remove the
MATE3s and associated bracket (see image)
5. Remove the front cover from the FM100
a.
Remove two Phillips screws from
bottom left and right of the front panel
(see image)
b.
Pull front panel down and away from
the FM100
©2018
OutBack Power Technologies, Arlington, WA 98223
FA-KF 11/06/18
1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OutBack Power FM100

Summary of Contents for OutBack Power FM100

  • Page 1 4. If replacing the bottom controller on a FLEXpower Radian system, first remove the MATE3s and associated bracket (see image) 5. Remove the front cover from the FM100 Remove two Phillips screws from bottom left and right of the front panel...
  • Page 2 14. Remove the screws connecting the charge controller to the back plate (see image) 15. Lift the charge controller up and away from the back plate ©2018 OutBack Power Technologies, Arlington, WA 98223 FA-KF 11/06/18 2 of 4...
  • Page 3 23. Connect any auxiliary wires 24. Connect the communications cable 25. Check all connections for proper polarity and torque settings 26. Replace the FM100 front cover 27. Replace the MATE3s and bracket 28. Re-program and commission the system Follow the startup guidelines in the...
  • Page 4 How-To Note Notes and Links The following are links to documents referenced in the procedure. FP-Radian Quick Start Guide: http://www.outbackpower.com/resources/documents/product-documentation/item/flexpower- radian-technical-documentation MATE3s Programming Guide: http://www.outbackpower.com/resources/documents/product-documentation/item/mate3s- technical-documentation ©2018 OutBack Power Technologies, Arlington, WA 98223 FA-KF 11/06/18 4 of 4...
